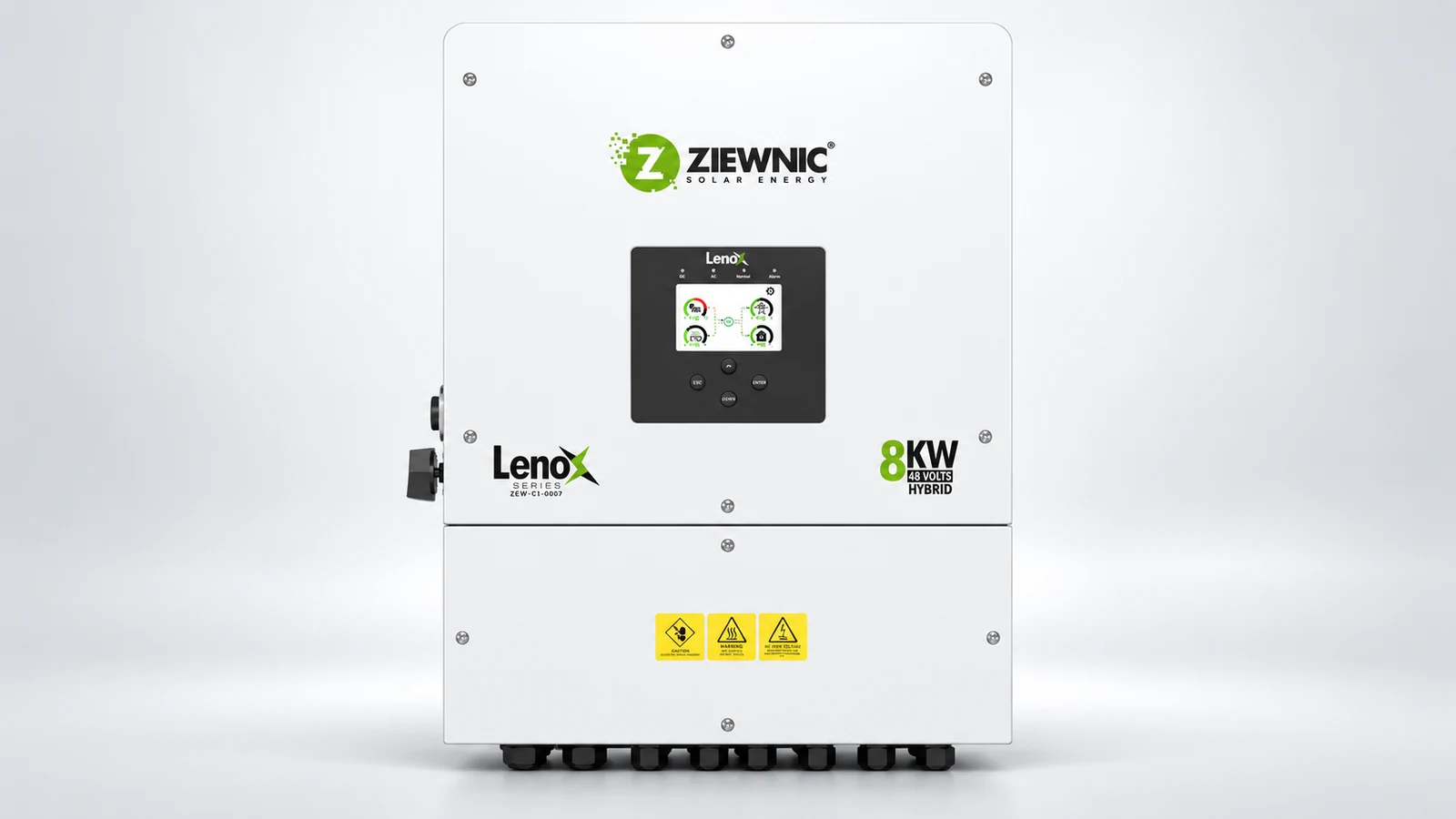

Ziewnic ZEW-C1-0007 8kW Hybrid Inverter Price in Pakistan

Price on request
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelZEW-C1-0007-8KW-48
Inverter typeHybrid
Grid typeSingle Phase
PV Input Data
Max DC input power10500 W
PV input voltage500 V
MPPT voltage range125-430 V
Max. PV input current26 A
No. of MPPT2
No. of strings per MPPT2+2
AC Output Data
Rated AC output8000 W
Rated AC output current36.3 A
Rated voltage230 V
Parallel operationYes
Power factor0.8 lagging to 0.8 leading
Battery Data
Battery typeLithium & Lead-Acid
Battery voltage range40-63 V
Max. charging current190 A
Max. discharging current190 A
BMSRS232 / CAN / RS485, Wi-Fi optional
Protections
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
General Specifications
Operating temperature-40°C ~ 60°C
Max. efficiency99%
Size (W×H×D)413 × 257.5 × 630 mm
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 8000 W rated on a 40-63 V battery from up to 10500 W of PV. MPPT window 125-430 V on a 500 V open-circuit ceiling, 26 A of PV input current. 190 A of charging. 2 MPP trackers across 2+2 strings. Rated output 36.3 A at 230 V. Peak efficiency 99%. Grid feed-in is documented: the catalogue carries an AC Output (Grid-Tied) block at power factor 0.8 lagging to 0.8 leading with THDi under 3%, so this one is a net-metering candidate. Anti-islanding, insulation monitoring and residual current monitoring are all fitted, with arc fault protection offered as an option. Touch screen display, RS232, CAN and RS485 standard, Wi-Fi optional. Peak efficiency 99%. Rated -40 to 60 degC with derating above 45 degC, smart cooling, and derating above 2,000 m. Certified to IEC/EN 62109-1 and -2 with IEC/EN 61000-6-2 and 61000-6-4. Case 413 × 257.5 × 630 mm. Rated -40°C ~ 60°C. No price applied. w11stop.com lists no ZEW-C1 model. It does list a Ziewnic Lenox L-SP at the same rating, and the two catalogues print identical figures, but the model codes differ and Ziewnic publish them as separate products, so that price is not carried across. Checked 28 September 2026.
