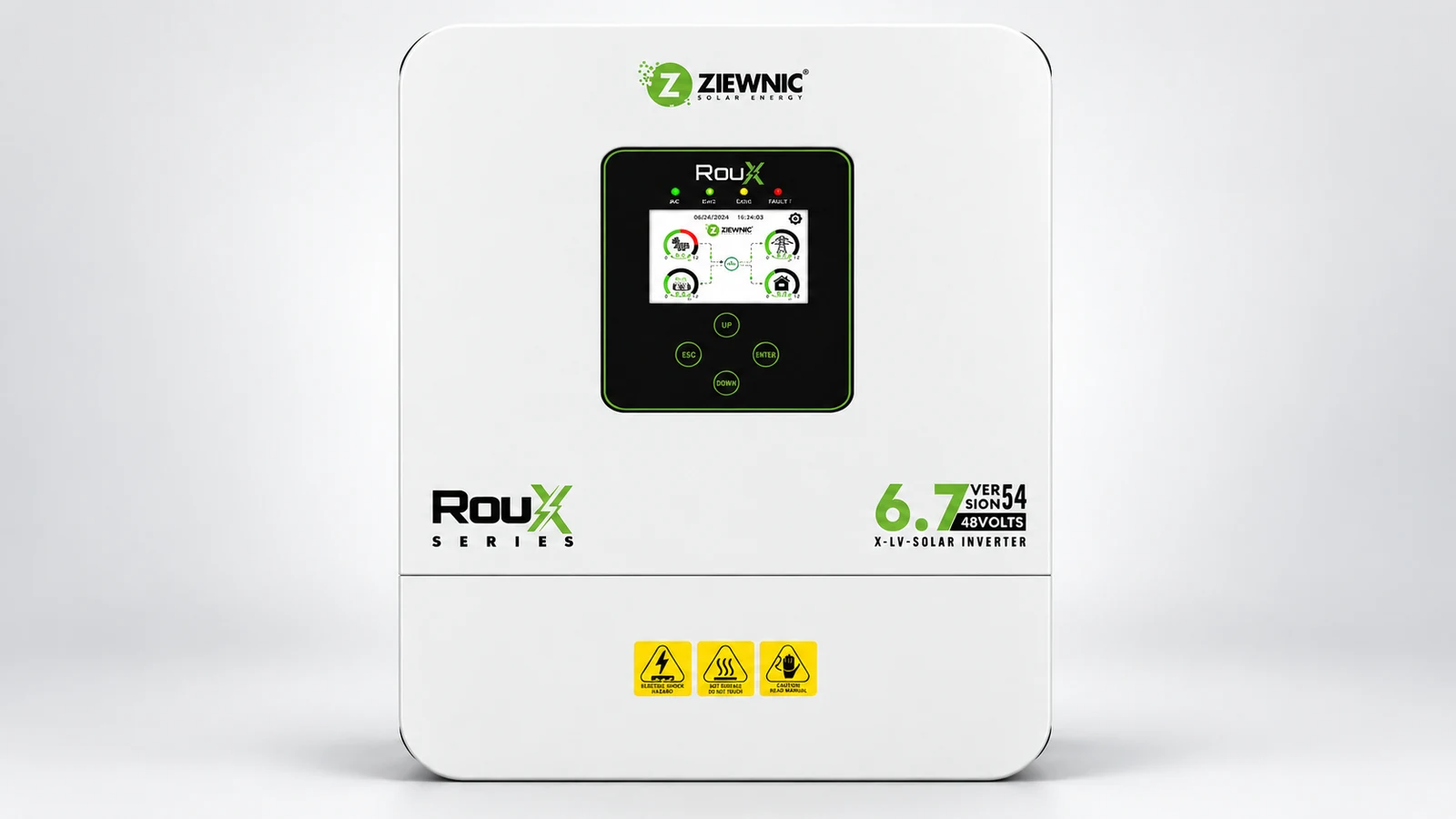

Ziewnic Roux-X LV6.7 3kW Off-Grid Inverter Price in Pakistan

Full specifications

Brand
Inverter Specifications
ModelGA3024JMHS
Inverter typeOff-Grid
Grid typeSingle Phase
IP classIP21
PV Input Data
Max DC input power4000 W
PV input voltage500 V
MPPT voltage range120-500 V
Max. PV input current18 A
AC Output Data
Rated AC output3000 W
Rated voltage230 V
Battery Data
Battery typeLithium & Lead-Acid
Battery voltage range48 V
Max. charging current100 A
Protections
AC overcurrent protectionYes
Output short circuit protectionYes
General Specifications
Operating temperature0°C ~ 50°C
Size (W×H×D)411.5 × 529 × 111.5 mm
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 3000 W rated on a 48 V battery from up to 4000 W of PV. MPPT window 120-500 V on a 500 V open-circuit ceiling, 18 A of PV input current. 100 A of charging. Off-grid only: the catalogue has no grid-tie or feed-in section, so this is not a net-metering inverter. Pure sine wave at 220, 230 or 240 V +/-5%, transfer 10 ms for computers or 20 ms for household equipment, peak efficiency above 94%. Overload holds 10.5 s at 110 to 150% and 5.5 s at 150 to 200%. Constant charge 56.4 V with a float of 54 V, best tracking between 360-430 V. Built-in Wi-Fi configuration app, RS232, IP21, noise under 50 dB. Case 411.5 × 529 × 111.5 mm. IP21. Rated 0°C ~ 50°C. No price applied. w11stop.com and smartsolar.pk both list a Ziewnic Roux at this designation, but they describe a different machine: their Roux PV7000 is sold as 4.7 kW against a 7,000 W array, where this ROUX-X VERSION54 catalogue gives 3,000 W rated on a 4,000 W array. Ziewnic also sell Roux Lite, Roux Mini and Roux Ultra lines. The figures contradict, so no retail price is attached to this page. Checked 28 September 2026.
