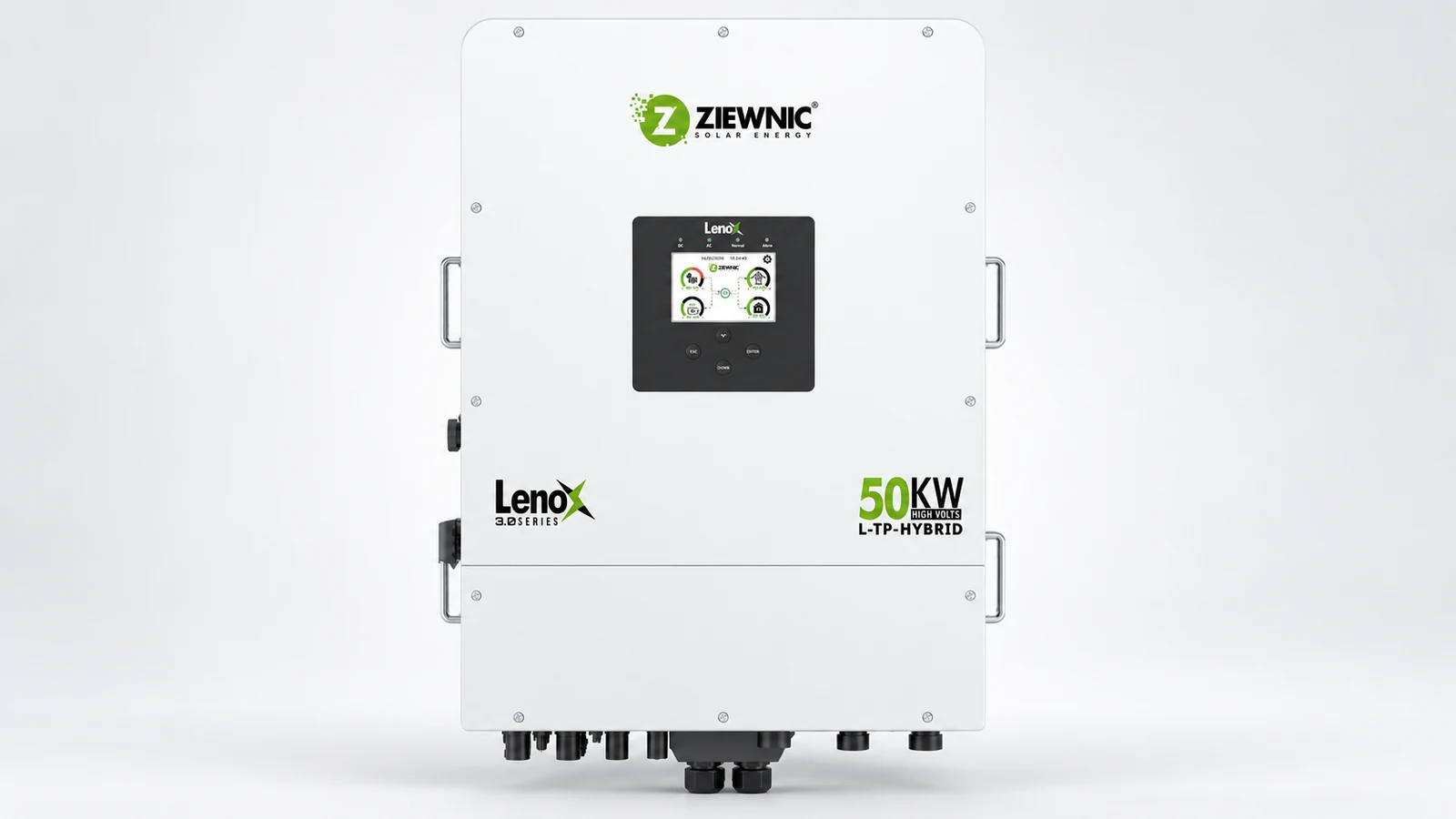

Ziewnic-Lenox-L-TP-50kW-PV65000-3-Phase-Hybrid-Inverter

Ziewnic Lenox L-TP 50kW PV65000 3-Phase Hybrid Inverter Price in Pakistan

Price on request
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelLENOX L-TP-50KW
Inverter typeHybrid
Grid typeThree Phase
PV Input Data
Max DC input power65000 W
PV input voltage1000 V
MPPT voltage range450-850 V
Max. PV input current55 A
No. of MPPT4
No. of strings per MPPT2+2+2+2
AC Output Data
Rated AC output50000 W
Rated AC output current83.3 A
Rated voltage230 V
Parallel operationYes
Power factor0.8 lagging to 0.8 leading
Battery Data
Battery typeLithium
Battery voltage range160-700 V
Max. charging current50 A
Max. discharging current50 A
BMSRS232 / CAN / RS485, Wi-Fi optional
Protections
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
General Specifications
Operating temperature-25°C ~ 60°C
Max. efficiency99.9%
Size (W×H×D)537 × 833 × 295 mm
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 50000 W rated on a 160-700 V battery from up to 65000 W of PV. MPPT window 450-850 V on a 1000 V open-circuit ceiling, 55 A of PV input current. 50 A of charging. 4 MPP trackers across 2+2+2+2 strings. Rated output 83.3 A at 230 V. Peak efficiency 99.9%. Grid feed-in is documented: the catalogue carries an AC Output (Grid-Tied) block at power factor 0.8 lagging to 0.8 leading with THDi under 3%, so this one is a net-metering candidate. Anti-islanding, insulation monitoring and residual current monitoring are all fitted, with arc fault protection offered as an option. Touch screen display, RS232, CAN and RS485 standard, Wi-Fi optional. Peak efficiency 99%. Rated -40 to 60 degC with derating above 45 degC, smart cooling, and derating above 2,000 m. Certified to IEC/EN 62109-1 and -2 with IEC/EN 61000-6-2 and 61000-6-4. This is a high-voltage battery machine, 160 to 700 V, so it pairs with an HV stack rather than the 48 V packs the rest of the range uses. Case 537 × 833 × 295 mm. Rated -25°C ~ 60°C. No price yet: w11stop.com stocks around forty Ziewnic products but not this model, and Kamal Solar and alladin.pk carry none. Checked 28 September 2026.
