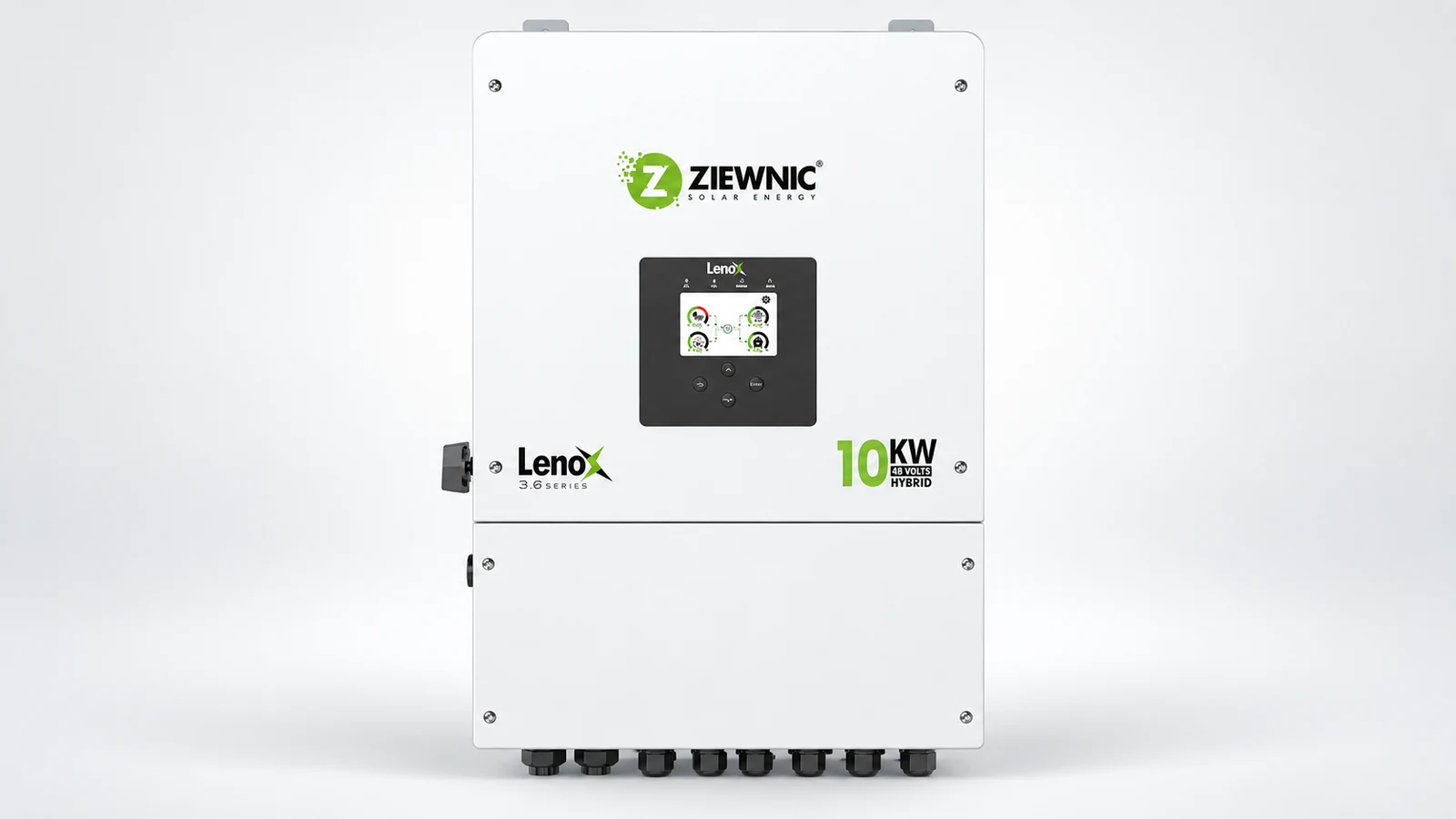

Ziewnic-Lenox-L-SP-10kW-48V-PV16000-Hybrid-Inverter

Ziewnic Lenox L-SP 10kW PV16000 Hybrid Inverter Price in Pakistan

Rs 380,000
Rs 38,000 per kW
Price updated: 28 September 2026
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelLENOX L-SP-10KW-48
Inverter typeHybrid
Grid typeSingle Phase
PV Input Data
Max DC input power16000 W
PV input voltage500 V
MPPT voltage range125-430 V
Max. PV input current32 A
No. of MPPT2
No. of strings per MPPT2+2
AC Output Data
Rated AC output10000 W
Rated AC output current45.4 A
Rated voltage230 V
Parallel operationYes
Power factor0.8 lagging to 0.8 leading
Battery Data
Battery typeLithium & Lead-Acid
Battery voltage range40-63 V
Max. charging current190 A
Max. discharging current190 A
BMSRS232 / CAN / RS485, Wi-Fi optional
Protections
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
General Specifications
Operating temperature-40°C ~ 60°C
Max. efficiency99%
Size (W×H×D)413 × 257.5 × 630 mm
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 10000 W rated on a 40-63 V battery from up to 16000 W of PV. MPPT window 125-430 V on a 500 V open-circuit ceiling, 32 A of PV input current. 190 A of charging. 2 MPP trackers across 2+2 strings. Rated output 45.4 A at 230 V. Peak efficiency 99%. Grid feed-in is documented: the catalogue carries an AC Output (Grid-Tied) block at power factor 0.8 lagging to 0.8 leading with THDi under 3%, so this one is a net-metering candidate. Anti-islanding, insulation monitoring and residual current monitoring are all fitted, with arc fault protection offered as an option. Touch screen display, RS232, CAN and RS485 standard, Wi-Fi optional. Peak efficiency 99%. Rated -40 to 60 degC with derating above 45 degC, smart cooling, and derating above 2,000 m. Certified to IEC/EN 62109-1 and -2 with IEC/EN 61000-6-2 and 61000-6-4. Case 413 × 257.5 × 630 mm. Rated -40°C ~ 60°C. Price shown is the w11stop.com listing "Ziewnic Lenox 10kW PV16000 L-SP Hybrid Solar Inverter IP65", Rs 380,000 (in stock), read 28 September 2026.
