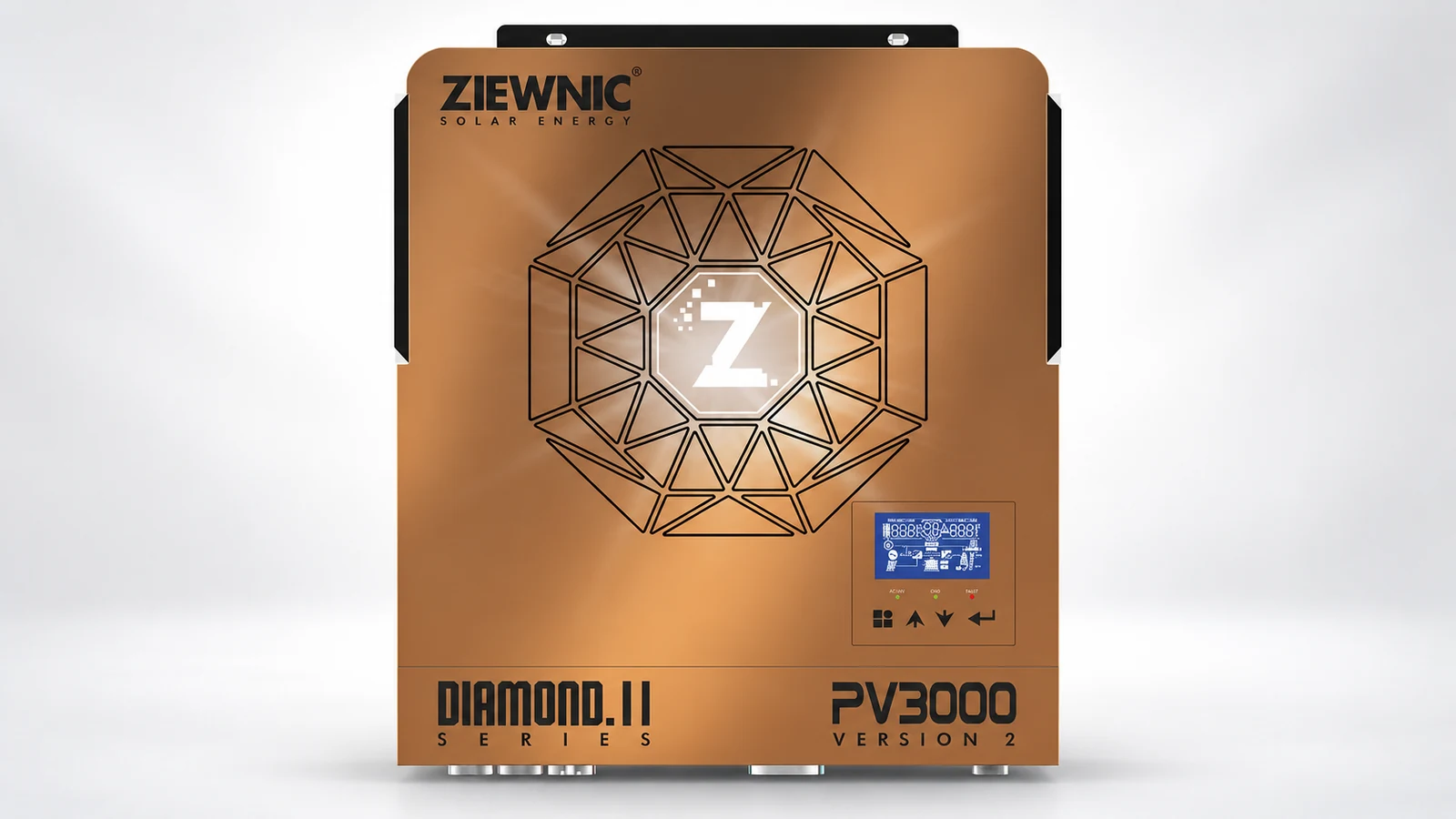

Ziewnic Diamond II 6G PV3000 2.2kW Hybrid Inverter Price in Pakistan
Full specifications
| Brand | Ziewnic |
| Inverter Specifications | |
| Model | DIAMOND II - PV3000 |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| IP class | IP21 |
| PV Input Data | |
| Max DC input power | 3000 W |
| PV input voltage | 430 V |
| MPPT voltage range | 55-430 V |
| Max. PV input current | 18 A |
| AC Output Data | |
| Rated AC output | 2200 W |
| Rated AC output current | 9.09 A |
| Rated voltage | 230 V |
| Power factor | 1.0 |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 12 V |
| Max. charging current | 80 A |
| Protections | |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| General Specifications | |
| Operating temperature | 0°C ~ 55°C |
| Max. efficiency | 98% |
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 2200 W rated (2200VA) on a 12 V battery from up to 3000 W of PV. MPPT window 55-430 V on a 430 V open-circuit ceiling, 18 A of PV input current. 80 A of charging. Rated output 9.09 A at 230 V. Peak efficiency 98%. Pure sine wave at 230 V +/-5%, power factor 1.0, transfer 10 ms for computers or 20 ms for appliances. Lithium and lead-acid both supported, with conformal coating against dust and humidity and a built-in electronic breaker. IP21. Rated 0°C ~ 55°C. Price shown is the w11stop.com listing "Ziewnic Diamond II 2.2kW PV3000 Hybrid Solar Inverter", Rs 55,000 (in stock), read 28 September 2026.
