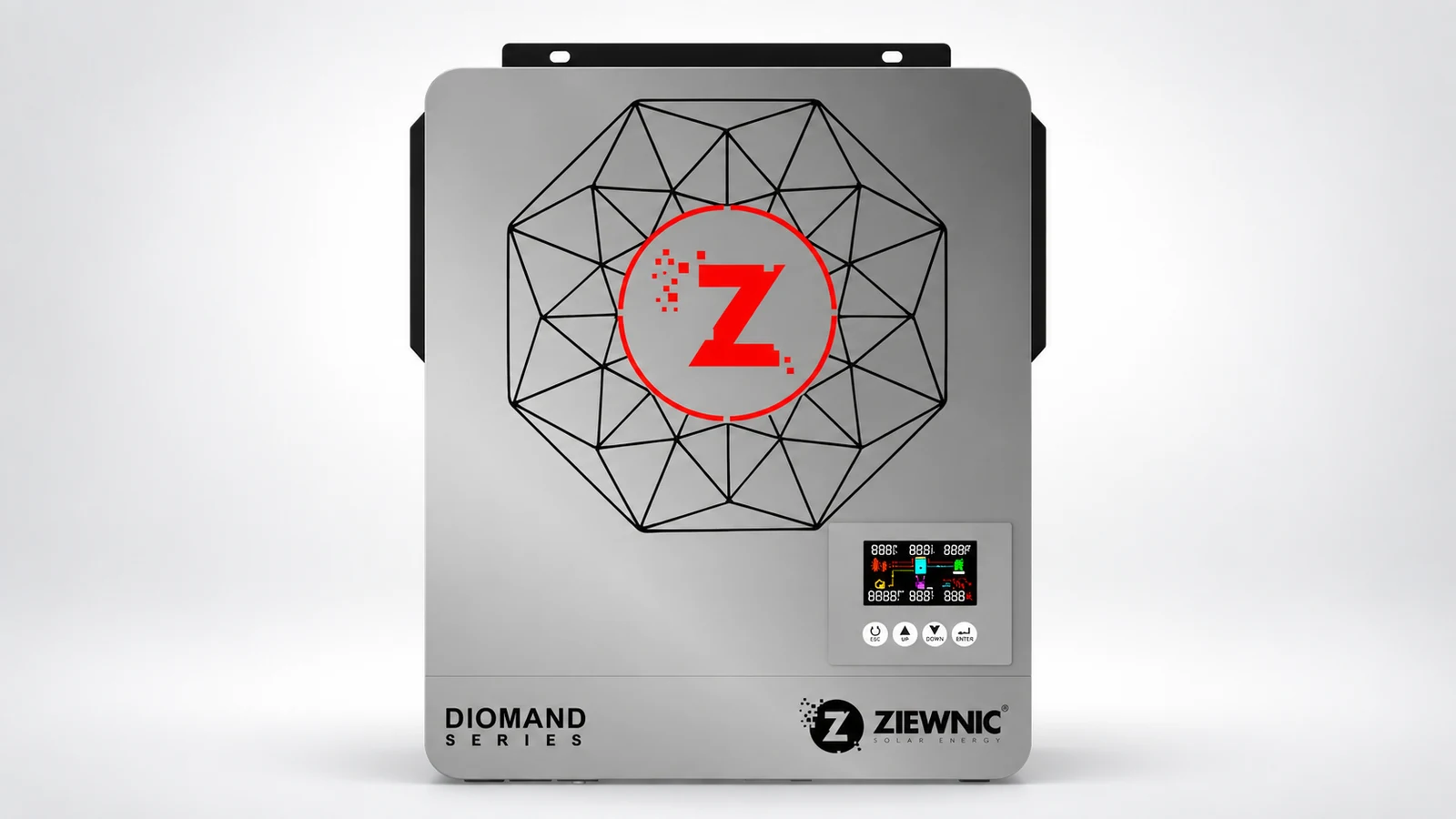

Ziewnic Diamond 5G PV6500 4.5kW Hybrid Inverter Price in Pakistan
Full specifications
| Brand | Ziewnic |
| Inverter Specifications | |
| Model | DIAMOND 5G - PV6500 |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| PV Input Data | |
| Max DC input power | 6500 W |
| PV input voltage | 500 V |
| MPPT voltage range | 90-450 V |
| Max. PV input current | 27 A |
| Startup voltage | 90 V |
| AC Output Data | |
| Rated AC output | 4500 W |
| Rated AC output current | 20 A |
| Rated voltage | 230 V |
| Smart load / generator input | Yes |
| Power factor | > 0.99 |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 24 V |
| Max. charging current | 160 A |
| Protections | |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| General Specifications | |
| Max. efficiency | 98% |
Note: Every Ziewnic catalogue in this range is footed "Powered by Growatt PK (Pvt.) Ltd.", so the brand is distributed here through Growatt Pakistan. 4500 W rated on a 24 V battery from up to 6500 W of PV. MPPT window 90-450 V on a 500 V open-circuit ceiling, 27 A of PV input current. 160 A of charging against 100 A from the grid. Surge 9000 W. A second load output rated 1500 W in battery mode, so non-critical circuits can be shed separately. Rated output 20 A at 230 V. Peak efficiency 98%. Grid feed-in is documented: a Grid-Tie Operation block with a 195.5 to 253 VAC window at 49 to 51 Hz and power factor above 0.99, so this one can be net-metered. Off-grid it accepts 90 to 280 VAC or 170 to 280 VAC, restarting at 180 VAC. Pure sine wave, 94% battery-to-AC. Start-up at 90 V. Price shown is the w11stop.com listing "Ziewnic Diamond 4.5kW 5G PV6500 Hybrid Solar Inverter", Rs 80,000 (in stock), read 28 September 2026.
