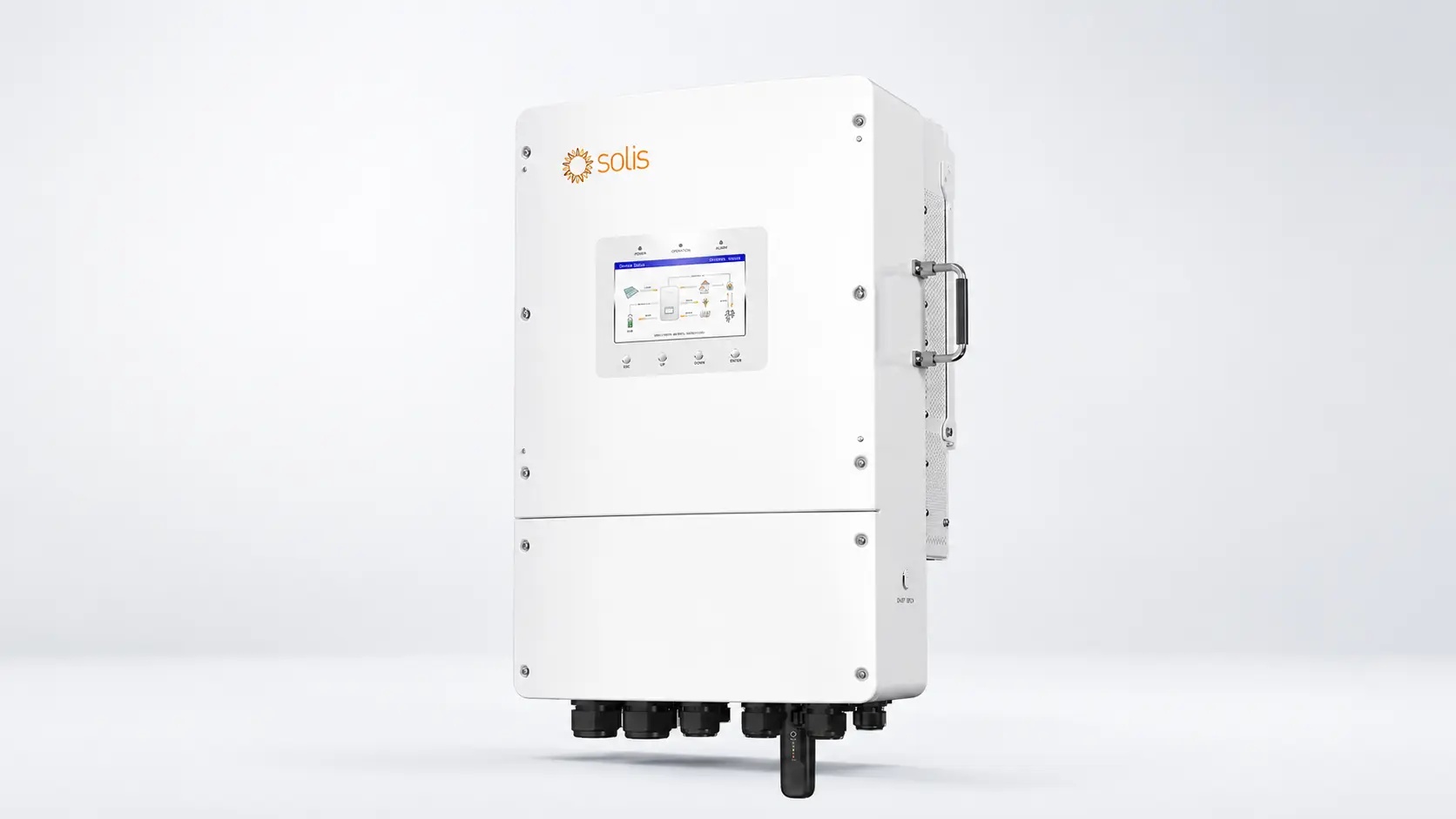

Solis S6-EH3P10K 10kW Hybrid Inverter
Price on request
Full specifications
| Brand | Solis |
| Inverter Specifications | |
| Model | S6-EH3P10K02-NV-YD-L |
| Inverter type | Hybrid |
| Grid type | Three Phase |
| IP class | IP66 |
| PV Input Data | |
| Max DC input power | 20000 W |
| PV input voltage | 1000 V |
| MPPT voltage range | 200-850 V |
| Max. PV input current | 40 A |
| No. of MPPT | 2 |
| No. of strings per MPPT | 2 |
| Startup voltage | 160 V |
| AC Output Data | |
| Rated AC output | 10000 W |
| Rated AC output current | 14.4 A |
| Rated voltage | 400 V |
| Smart load / generator input | Yes |
| Power factor | > 0.99 (0.8 leading - 0.8 lagging) |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 40-60 V |
| Max. charging current | 220 A |
| Max. discharging current | 220 A |
| BMS | CAN / RS485 |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| General Specifications | |
| Weight | 42 kg |
| Operating temperature | -25°C ~ +60°C |
| Max. efficiency | 97.5% |
| Size (W×H×D) | 430 × 660 × 305 mm |
Note: The model number denotes rated AC output. The PV figure is the manufacturer's recommended maximum array size, deliberately larger than the AC rating — oversizing the array against the inverter is normal practice, not a mistake.
