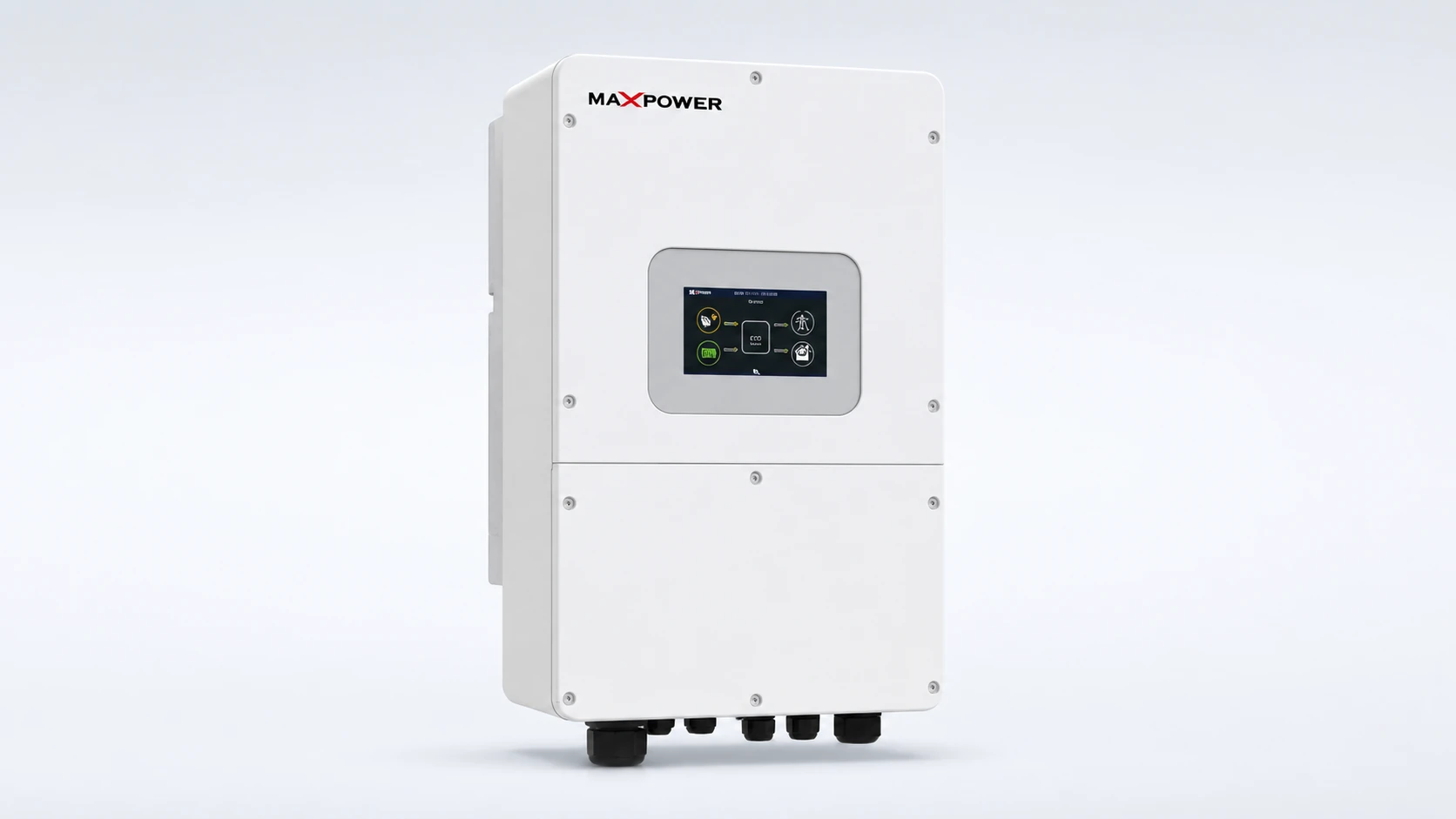

MaxPower Voltas HYD-15K-H6 15kW 3-Phase Hybrid Inverter
Price on request
Full specifications
| Brand | MaxPower |
| Inverter Specifications | |
| Model | HYD-15K-H6 |
| Inverter type | Hybrid |
| Grid type | Three Phase |
| IP class | IP66 |
| Warranty | 5 Years |
| PV Input Data | |
| Max DC input power | 30000 W |
| PV input voltage | 1000 V |
| MPPT voltage range | 180-850 V |
| Max. PV input current | 36 A |
| No. of MPPT | 2 |
| No. of strings per MPPT | 2 |
| Startup voltage | 200 V |
| AC Output Data | |
| Rated AC output | 15000 W |
| Rated AC output current | 21.8 A |
| Rated voltage | 400 V |
| Smart load / generator input | Yes |
| Power factor | 0.8 leading to 0.8 lagging |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 40-60 V |
| Max. charging current | 300 A |
| Max. discharging current | 300 A |
| BMS | WiFi / 4G / USB / CAN / RS485 |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 45 kg |
| Operating temperature | -25°C ~ +60°C |
| Max. efficiency | 98% |
| Size (W×H×D) | 425 × 710 × 290 mm |
Note: Grid feed-in is documented on the datasheet, so this model can be net-metered. Three-phase 400 V output on a low-voltage 40-60 V battery, which keeps it compatible with the lithium and lead-acid banks already common in Pakistan rather than needing a high-voltage stack. 300 A charge and discharge - the highest in the MaxPower range. Two MPPTs at 36 A with two strings each over a wide 180-850 V window on a 1000 V ceiling. Maximum apparent power 17.5 kVA; utility side supplies 30 kVA and 48 A. Backup switches in under 10 ms. Runs grid and generator together. IP66, -25 to +60 degC, 45 kg. Peak efficiency 98%, European 97.5%. 5-year warranty.
