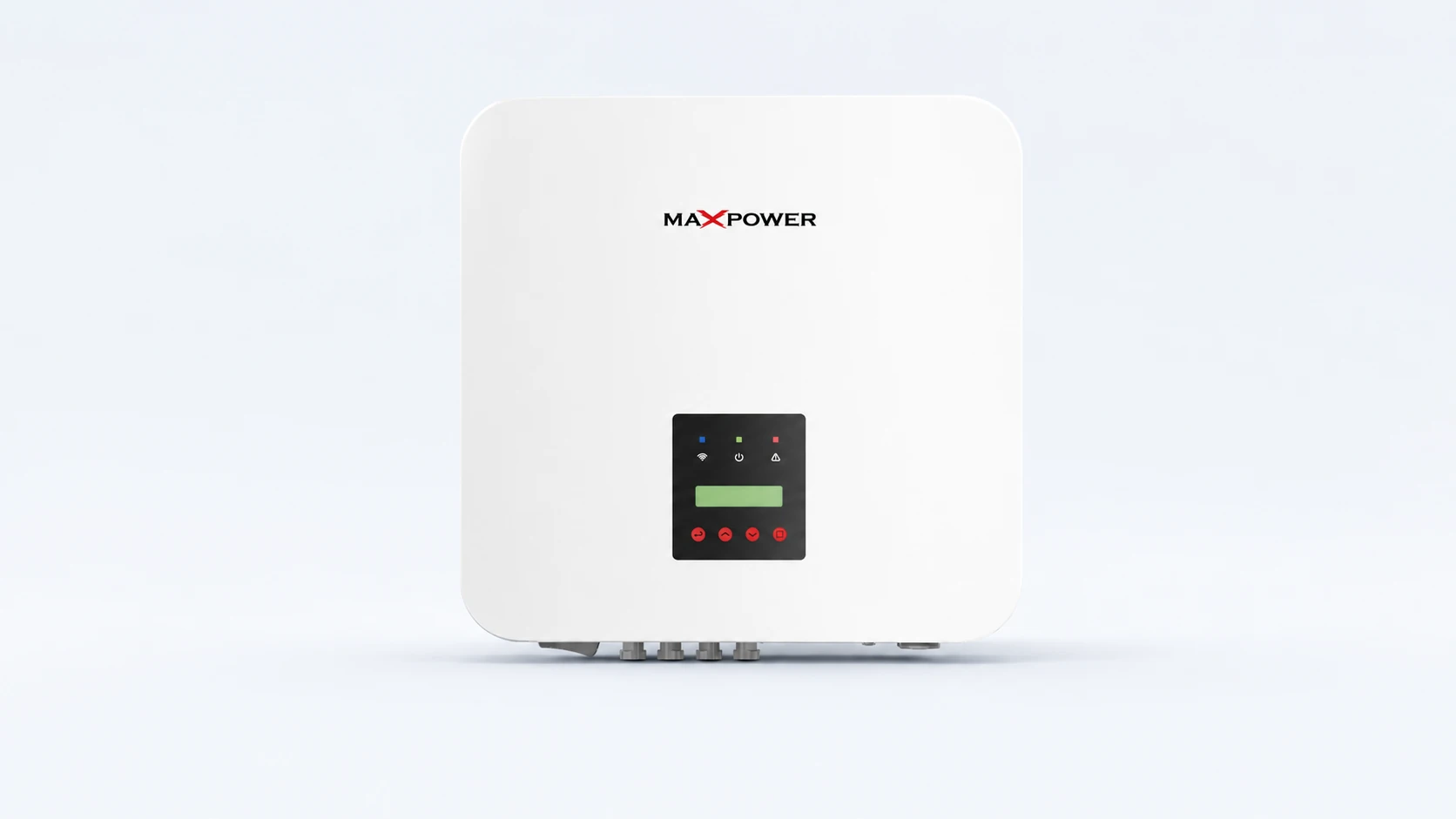

Maxpower Voltas 15KTLX-G4 Three Phase Ongrid Inverter

MaxPower Voltas 15KTLX-G4 15kW 3-Phase On-Grid Inverter

Price on request
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelVoltas 15KTLX-G4
Inverter typeOn-Grid
Grid typeThree Phase
IP classIP66
Warranty10 Years
PV Input Data
PV input voltage1100 V
MPPT voltage range100-1080 V
Max. PV input current36 A
No. of MPPT3
No. of strings per MPPT2
Startup voltage50 V
AC Output Data
Rated AC output15000 W
Rated AC output current21.7 A
Rated voltage400 V
Power factor> 0.99 (0.8 leading to 0.8 lagging)
Battery Data
Battery typeNone (on-grid)
Protections
PV arc fault detectionYes
PV reverse polarity detectionYes
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight15.2 kg
Operating temperature-25°C ~ +60°C
Max. efficiency98.6%
Size (W×H×D)411 × 401 × 162 mm
Note: Grid-tie only - no battery input and no backup output. 1100 V DC ceiling, 50 V start-up and a very wide 100-1080 V tracking window, so it begins generating early and holds on late. Three MPPTs. Peak efficiency 98.6%, European 98.3%. Type II DC and Type III AC surge arresters fitted; integrated AFCI is an option. Transformerless, IP66, -25 to +60 degC with derating above 45, altitude to 3000 m. 10-year warranty - double the 5 years on MaxPower's hybrid ranges. Same 18+18+36 A input arrangement as the 10 kW with 1+1+2 strings. Maximum output 15 kVA at 21.7 A. External fan cooling rather than the natural convection of the 10 kW, and correspondingly louder at up to 40 dB. 15.2 kg. The datasheet prints the maximum output current as 21 7 with the decimal point dropped, and MaxPower's website repeats it as 217 A - 15 kW three-phase at 400 V is 21.7 A, which is the figure used here.
