Full specifications

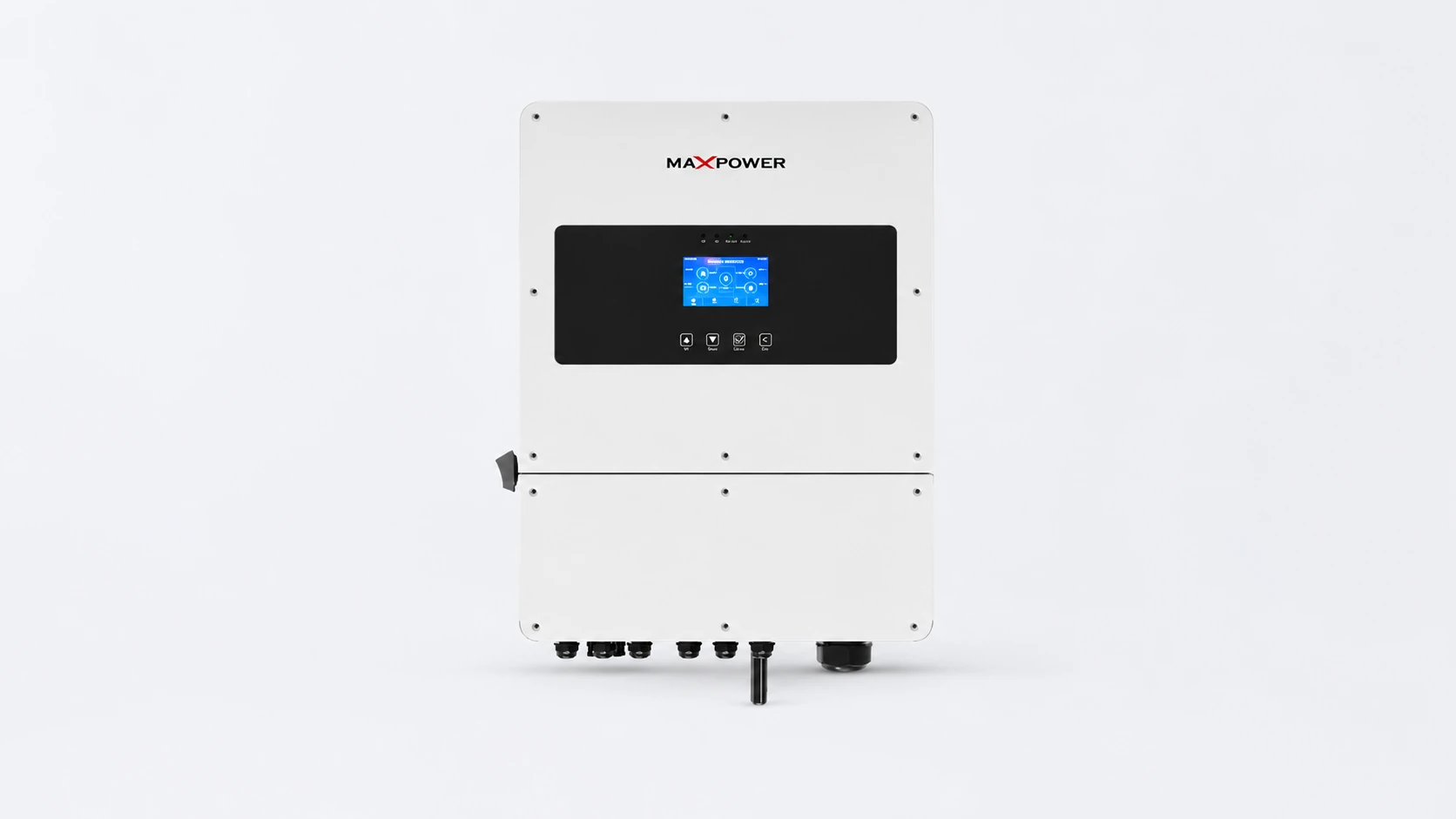

Brand	MaxPower
Inverter Specifications
Model	Voltas-12K-H4
Inverter type	Hybrid
Grid type	Three Phase
IP class	IP65
Warranty	5 Years
PV Input Data
Max DC input power	18000 W
PV input voltage	800 V
MPPT voltage range	200-700 V
Max. PV input current	26 A
No. of MPPT	2
No. of strings per MPPT	2
Startup voltage	160 V
AC Output Data
Rated AC output	12000 W
Rated AC output current	17.4 A
Rated voltage	400 V
Power factor	0.8 leading to 0.8 lagging
Battery Data
Battery type	Lithium & Lead-Acid
Battery voltage range	40-60 V
Max. charging current	250 A
Max. discharging current	250 A
BMS	CAN / RS485
Protections
PV arc fault detection	Yes
PV input lightning protection	Yes
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	44 kg
Operating temperature	-45°C ~ +60°C
Max. efficiency	97.9%
Size (W×H×D)	510 × 630 × 290 mm

Note: Grid feed-in is documented on the datasheet, so this model can be net-metered. Three-phase 380/400 V output on a low-voltage 40-60 V battery - the combination most Pakistani three-phase homes want, since it takes the banks already sold here rather than a high-voltage stack. 250 A charge and discharge. Asymmetric MPPTs at 26 A and 17 A with 2+1 strings, so the trackers are not interchangeable. Full-load DC window 260-650 V inside a wider 200-700 V MPPT range. Maximum AC output 13200 W. Peak efficiency 97.9%, European 96.9%. IP65, -45 to +60 degC. PV arc-fault detection and lightning protection. 5-year warranty.
