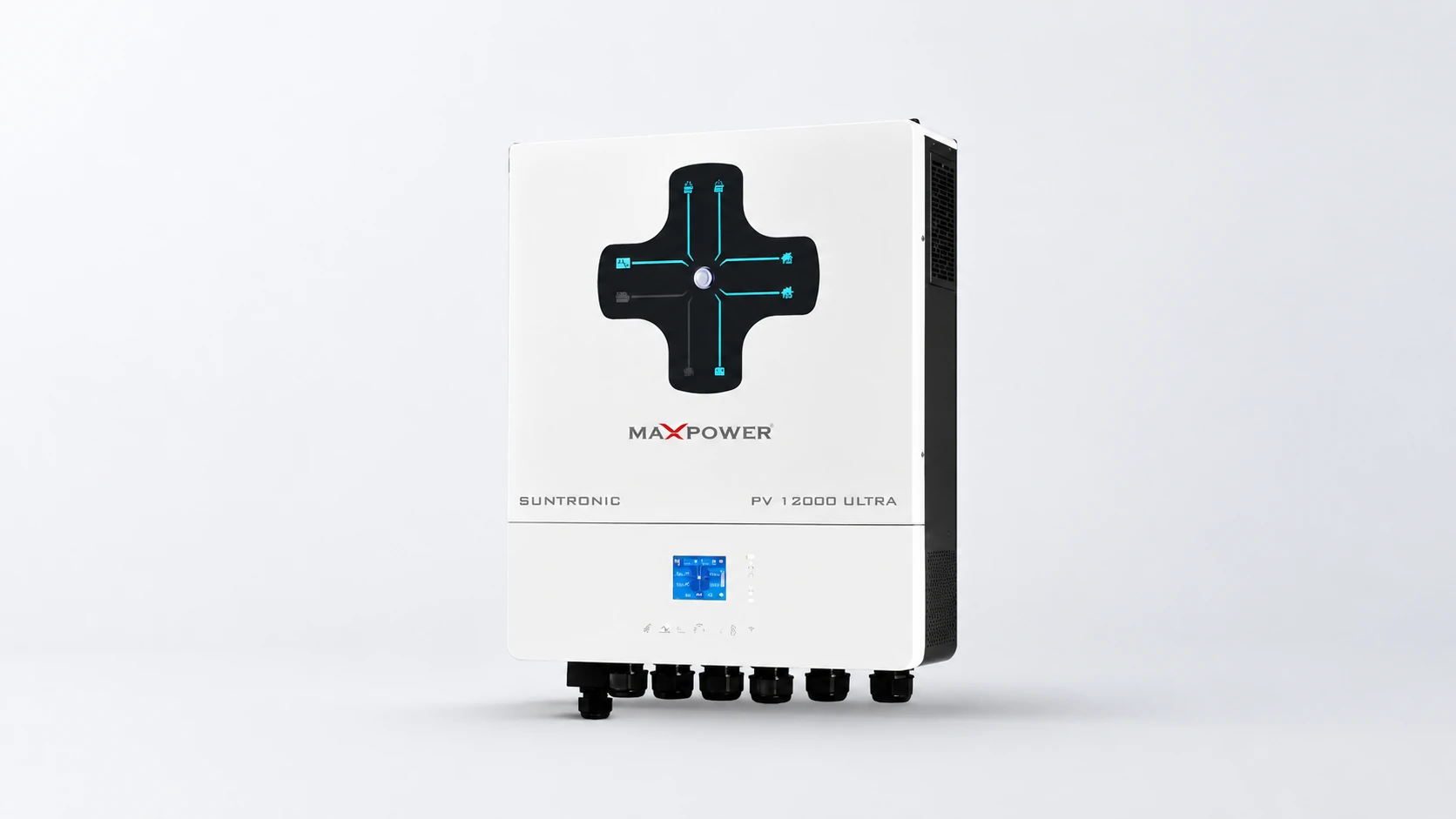

MaxPower Suntronic PV 12000 ULTRA 11kW Off-Grid Inverter
Price on request
Full specifications
| Brand | MaxPower |
| Inverter Specifications | |
| Model | SUNTRONIC PV 12000 ULTRA |
| Inverter type | Off-Grid |
| Grid type | Single Phase |
| PV Input Data | |
| Max DC input power | 12000 W |
| PV input voltage | 500 V |
| MPPT voltage range | 90-450 V |
| Max. PV input current | 27 A |
| No. of MPPT | 2 |
| AC Output Data | |
| Rated AC output | 11000 W |
| Rated voltage | 230 V |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 48 V |
| Max. charging current | 150 A |
| Max. discharging current | 150 A |
| BMS | RS232 / RS485 / WiFi |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 18.4 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 93% |
| Size (W×H×D) | 438 × 553.6 × 145 mm |
Note: No grid export and no net metering - the datasheet has no grid-output or feed-in section. It runs the load from PV and battery and accepts utility or generator as a backup charging source, which is not the same as being grid-interactive. The model number is not the output rating - the Suntronic PV 12000 ULTRA is rated 11 kW with a 12000W array ceiling. 48 V bank, 150 A maximum solar charging and 150 A from utility. MPPT window 90-450 V, open-circuit ceiling 500 V. Peak efficiency 93%. Surge 22000 VA. Twin 5 kW/6 kW PV channels at 27 A each, 40 A combined.
