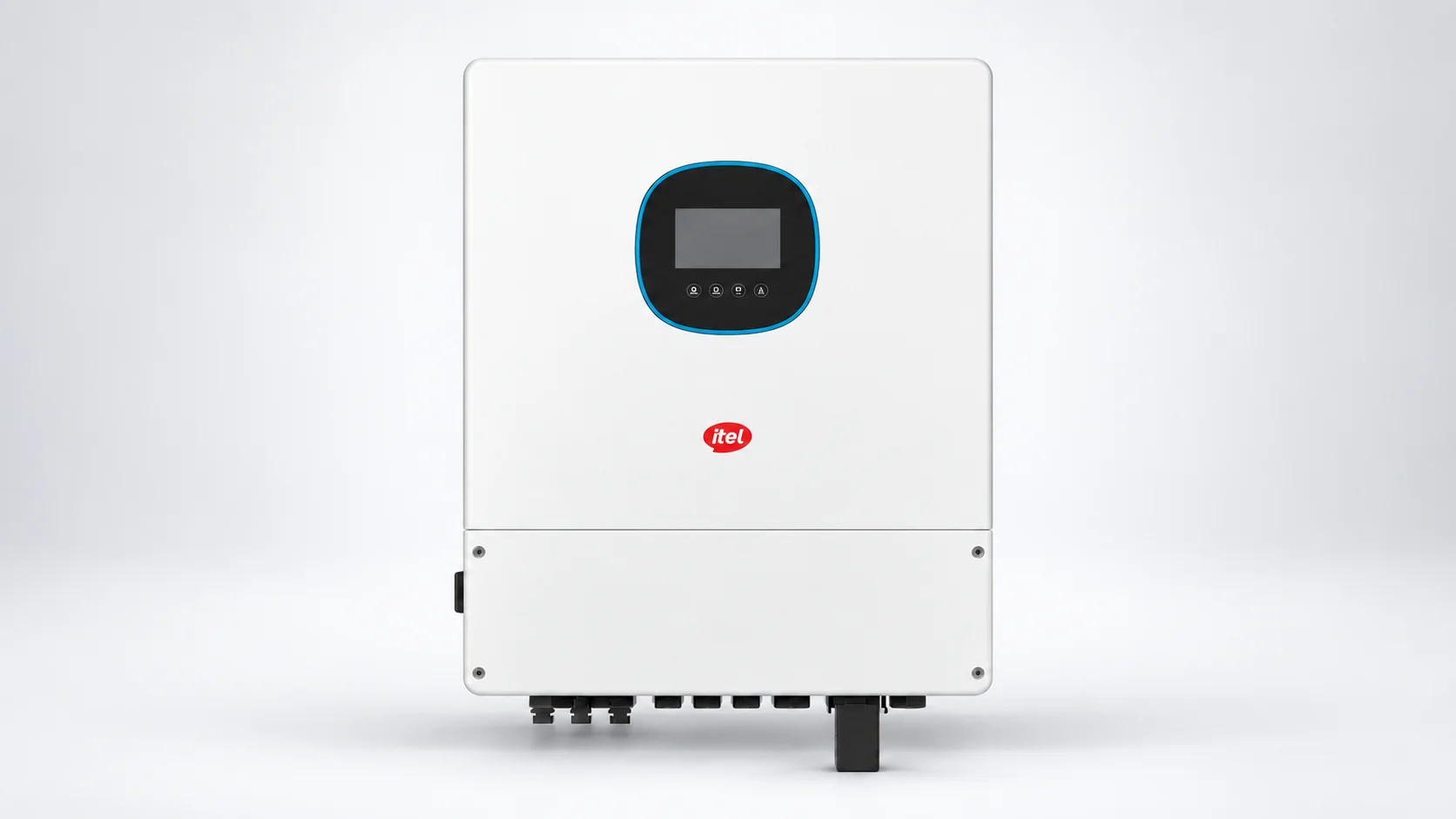

itel IHY-8KL3 8kW 3-Phase Hybrid Inverter

Note: 8000 W on grid and backup, 8800 VA maximum, from up to 16,000 W of PV, double the output, across two equal 18 A MPPTs on a 200 to 800 V window with a 1000 V ceiling and a 150 V start. 12 A per phase rated, 13.3 A maximum and 18 A on an unbalanced phase. 190 A battery charge and discharge. Peak 16,000 VA for 15 seconds. Grid export is documented, with IEC 62116 anti-islanding and IEC 61727 grid-connection certification listed, so this model can be net-metered. Three-phase 220/380 or 230/400 V output on a 48 V low-voltage battery bank (40 to 60 V, lead-acid or lithium). 99.9% MPPT tracking, 98.0% peak and 97.5% European efficiency. Backup output matches the grid rating and switches over in 10 ms, with a peak of double the rating for 15 seconds and enough starting current for a 3 HP motor, and it carries unbalanced loads up to 150% on one phase. Supports a diesel generator and a smart load, and parallels to 12 units. IP66, fan-cooled at under 55 dB, rated -25 to +60 °C with derating above 45 °C, up to 4000 m. Protection covers PV reverse polarity, insulation impedance, residual current, overvoltage, overload, short circuit and over-temperature, with Type III surge protection on the DC and AC side, a lighter class than the Type II fitted to most string inverters. 38 kg in a 475 × 683 × 256 mm case. 5-year replacement plus a 5-year service warranty, so the warranty field shows 5. Street price in Pakistan Rs 389,999 to Rs 400,000 (Shahrukh Solar House Rs 389,999, in stock; w11stop.com Rs 400,000), read 21 September 2026.
