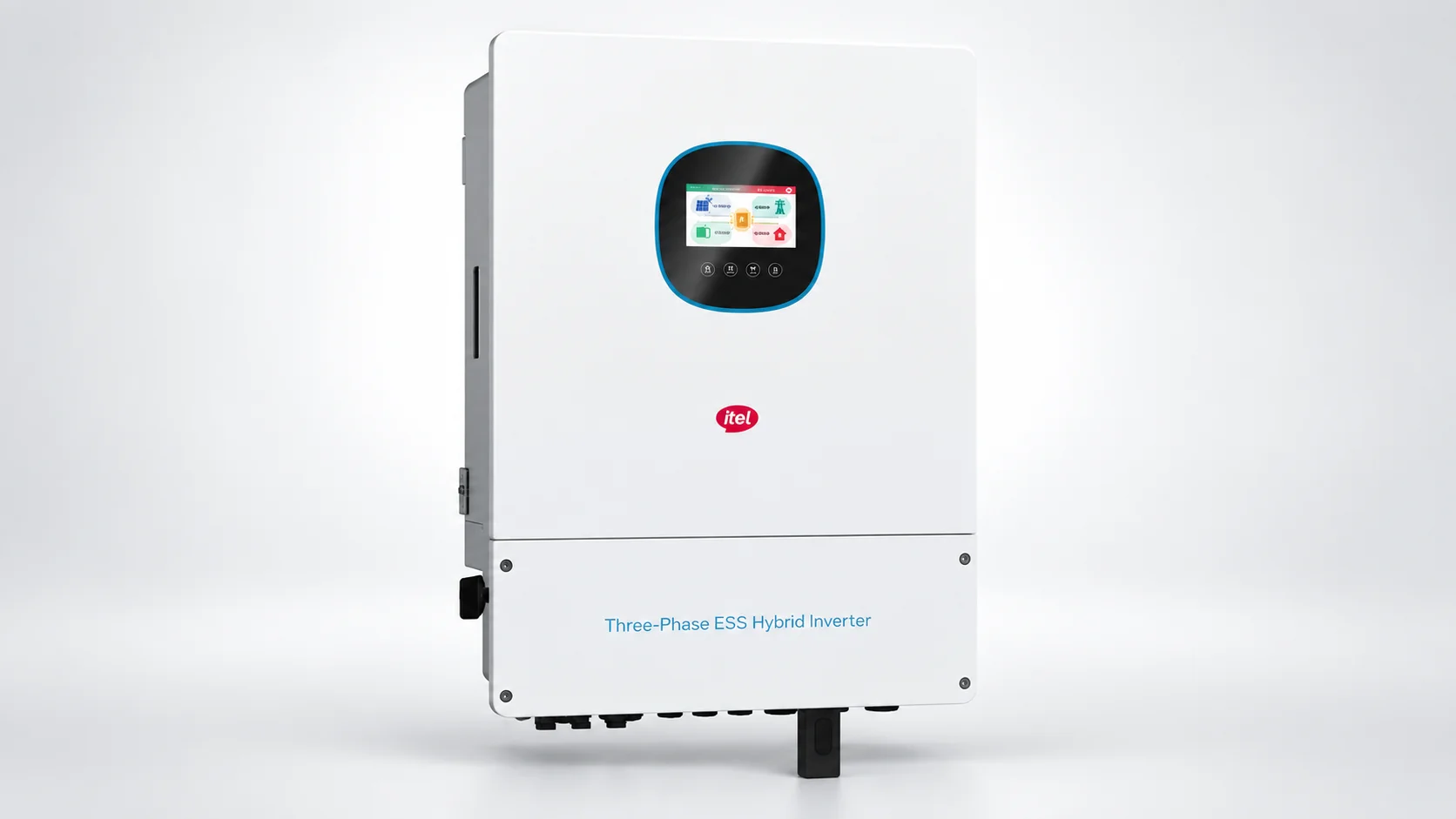

Full specifications

Brand	iTel
Inverter Specifications
Model	IHY-12KL3
Inverter type	Hybrid
Grid type	Three Phase
IP class	IP66
Warranty	5 Years
PV Input Data
Max DC input power	24000 W
PV input voltage	1000 V
MPPT voltage range	200-800 V
Max. PV input current	36 A
No. of MPPT	2
Startup voltage	150 V
AC Output Data
Rated AC output	12000 W
Rated AC output current	18.2 A
Rated voltage	400 V
Smart load / generator input	Yes
Parallel operation	Yes
Power factor	0.8 leading to 0.8 lagging
Battery Data
Battery type	Lithium & Lead-Acid
Battery voltage range	40-60 V
Max. charging current	250 A
Max. discharging current	250 A
BMS	WiFi / RS485 / CAN / Dry-contact
Protections
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	38 kg
Operating temperature	-25°C ~ +60°C
Max. efficiency	98%
Size (W×H×D)	475 × 683 × 256 mm

Note: 12,000 W on grid and backup, 13,200 VA maximum, from up to 24,000 W of PV, double the output, across two MPPTs that are not equal: 36 A on one and 18 A on the other, on a 200 to 800 V window with a 1000 V ceiling and a 150 V start. 18.2 A per phase rated, 20 A maximum and 27.3 A on an unbalanced phase. 250 A battery charge and discharge. Peak 24,000 VA for 15 seconds. Grid export is documented, with IEC 62116 anti-islanding and IEC 61727 grid-connection certification listed, so this model can be net-metered. Three-phase 220/380 or 230/400 V output on a 48 V low-voltage battery bank (40 to 60 V, lead-acid or lithium). 99.9% MPPT tracking, 98.0% peak and 97.5% European efficiency. Backup output matches the grid rating and switches over in 10 ms, with a peak of double the rating for 15 seconds and enough starting current for a 3 HP motor, and it carries unbalanced loads up to 150% on one phase. Supports a diesel generator and a smart load, and parallels to 12 units. IP66, fan-cooled at under 55 dB, rated -25 to +60 °C with derating above 45 °C, up to 4000 m. Protection covers PV reverse polarity, insulation impedance, residual current, overvoltage, overload, short circuit and over-temperature, with Type III surge protection on the DC and AC side, a lighter class than the Type II fitted to most string inverters. 38 kg in a 475 × 683 × 256 mm case. Same case and weight as the 8 kW IHY-8KL3. 5-year replacement plus a 5-year repair warranty, so the warranty field shows 5. Street price in Pakistan Rs 479,999 to Rs 525,000 (Shahrukh Solar House Rs 479,999, out of stock; w11stop.com Rs 525,000), read 21 September 2026.
