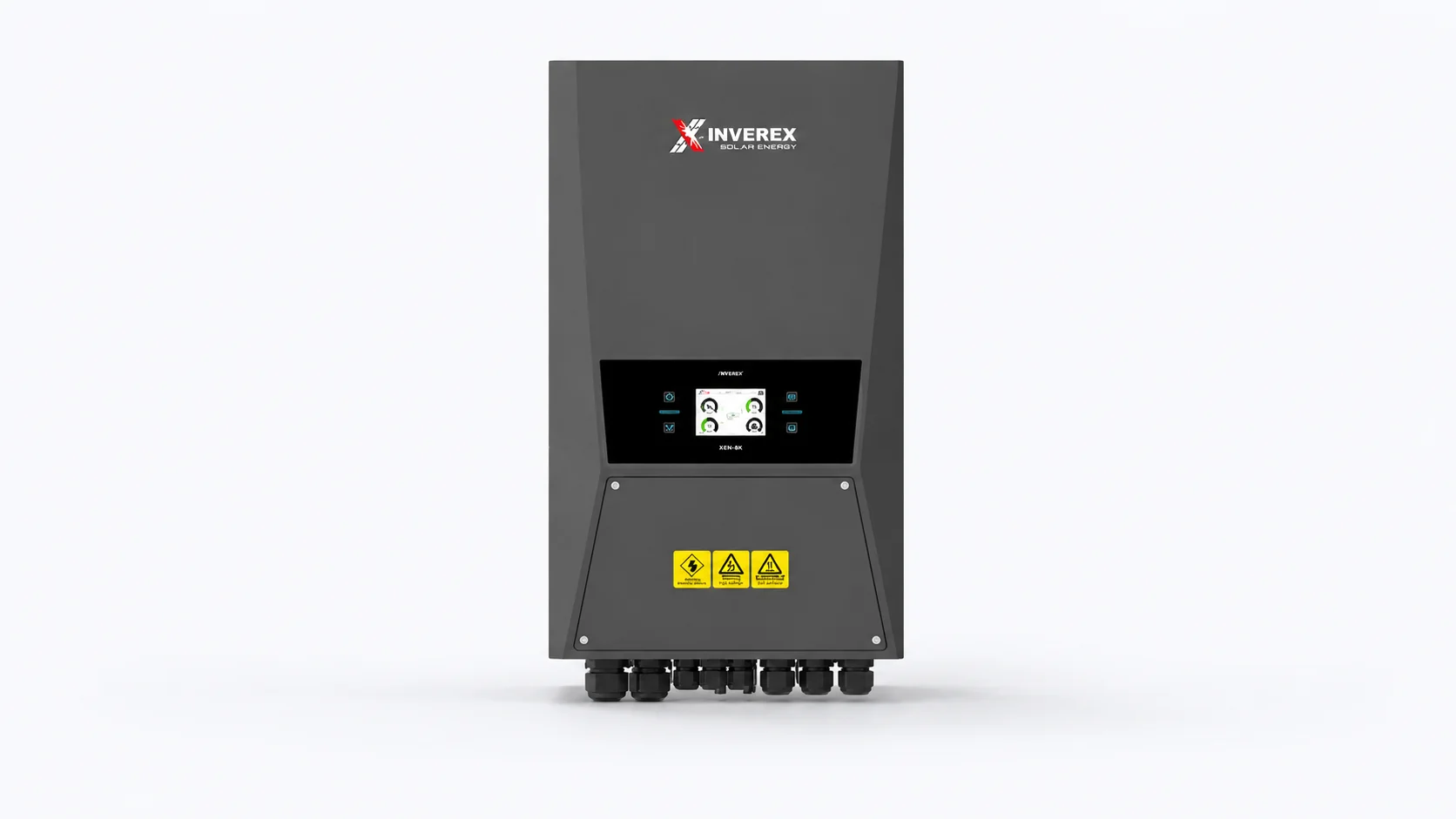

NITROX HYBRID 8 KW 3P-5G

Inverex NitroX 8kW 3P-5G Hybrid Inverter Price in Pakistan

Rs 520,000 – Rs 530,000
Rs 65,000 per kW
Price updated: 16 September 2026
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelNITROX HYBRID 8 KW 3P-5G
Inverter typeHybrid
Grid typeThree Phase
IP classIP65
Warranty5 Years
PV Input Data
Max DC input power12800 W
PV input voltage800 V
MPPT voltage range200-650 V
No. of MPPT2
No. of strings per MPPT1+1
Startup voltage160 V
AC Output Data
Rated AC output8000 W
Smart load / generator inputYes
Parallel operationYes
Power factor0.8 leading to 0.8 lagging
Battery Data
Battery voltage range40-60 V
Max. charging current190 A
Max. discharging current190 A
BMSSelf-adaption to BMS
Protections
PV reverse polarity detectionYes
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight36.2 kg
Operating temperature-40°C ~ +60°C
Max. efficiency97.6%
Size (W×H×D)350 × 660 × 266 mm
