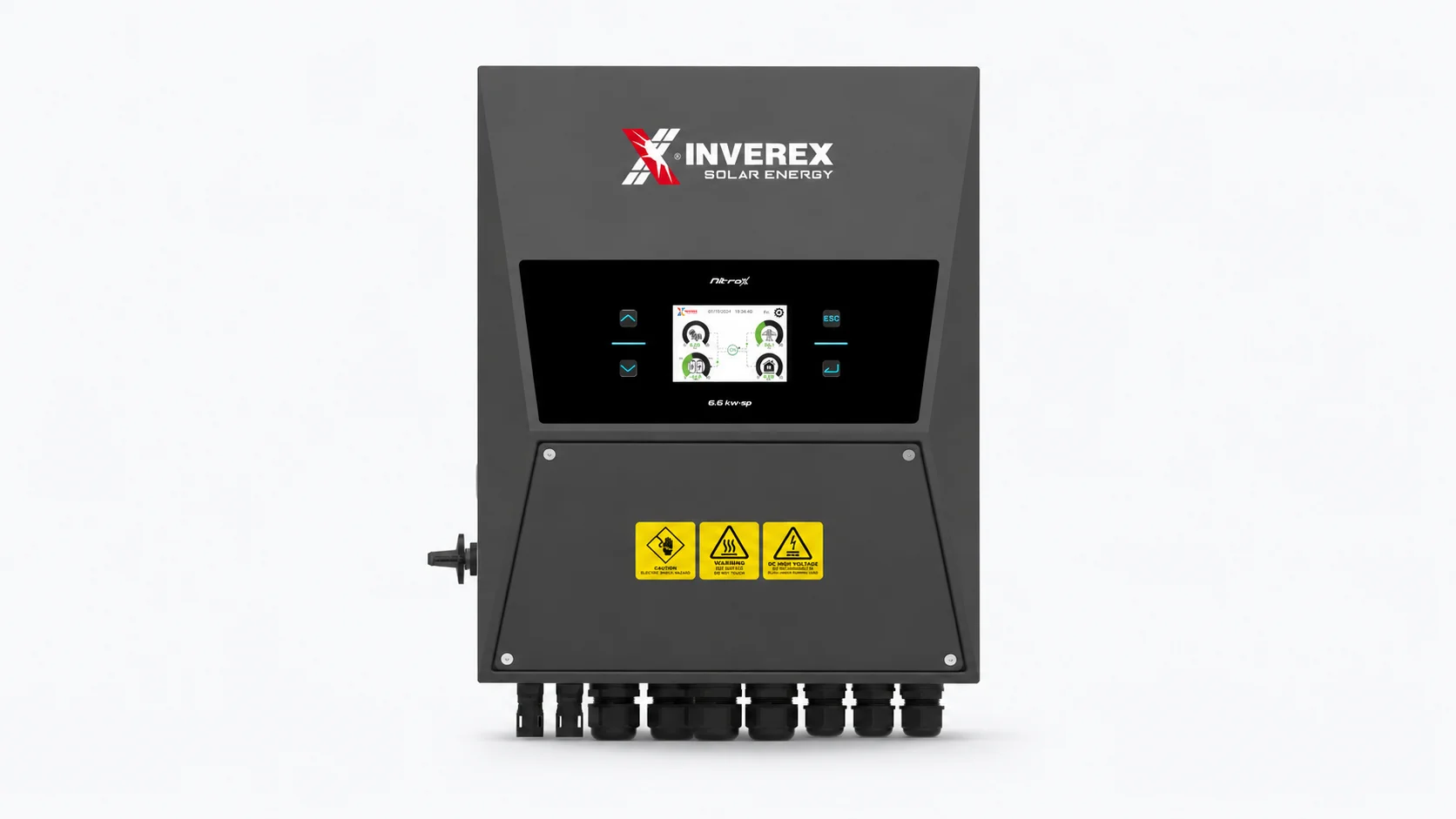

NITROX HYBRID 6.6 KW SP-5G

Inverex NitroX 6.6kW SP-5G Hybrid Inverter

Rs 275,000 – Rs 280,000
Rs 41,667 per kW
Price updated: 15 September 2026
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelNITROX HYBRID 6.6 KW SP-5G
Inverter typeHybrid
Grid typeSingle Phase
IP classIP65
Warranty5 Years
PV Input Data
Max DC input power10560 W
PV input voltage500 V
MPPT voltage range150-425 V
No. of MPPT2
No. of strings per MPPT1+1
Startup voltage125 V
AC Output Data
Rated AC output6600 W
Smart load / generator inputYes
Parallel operationYes
Power factor0.8 leading to 0.8 lagging
Battery Data
Battery voltage range40-60 V
Max. charging current140 A
Max. discharging current140 A
BMSSelf-adaption to BMS
Protections
PV reverse polarity detectionYes
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight17.35 kg
Operating temperature-40°C ~ +60°C
Max. efficiency97.6%
Size (W×H×D)340 × 470 × 258 mm
