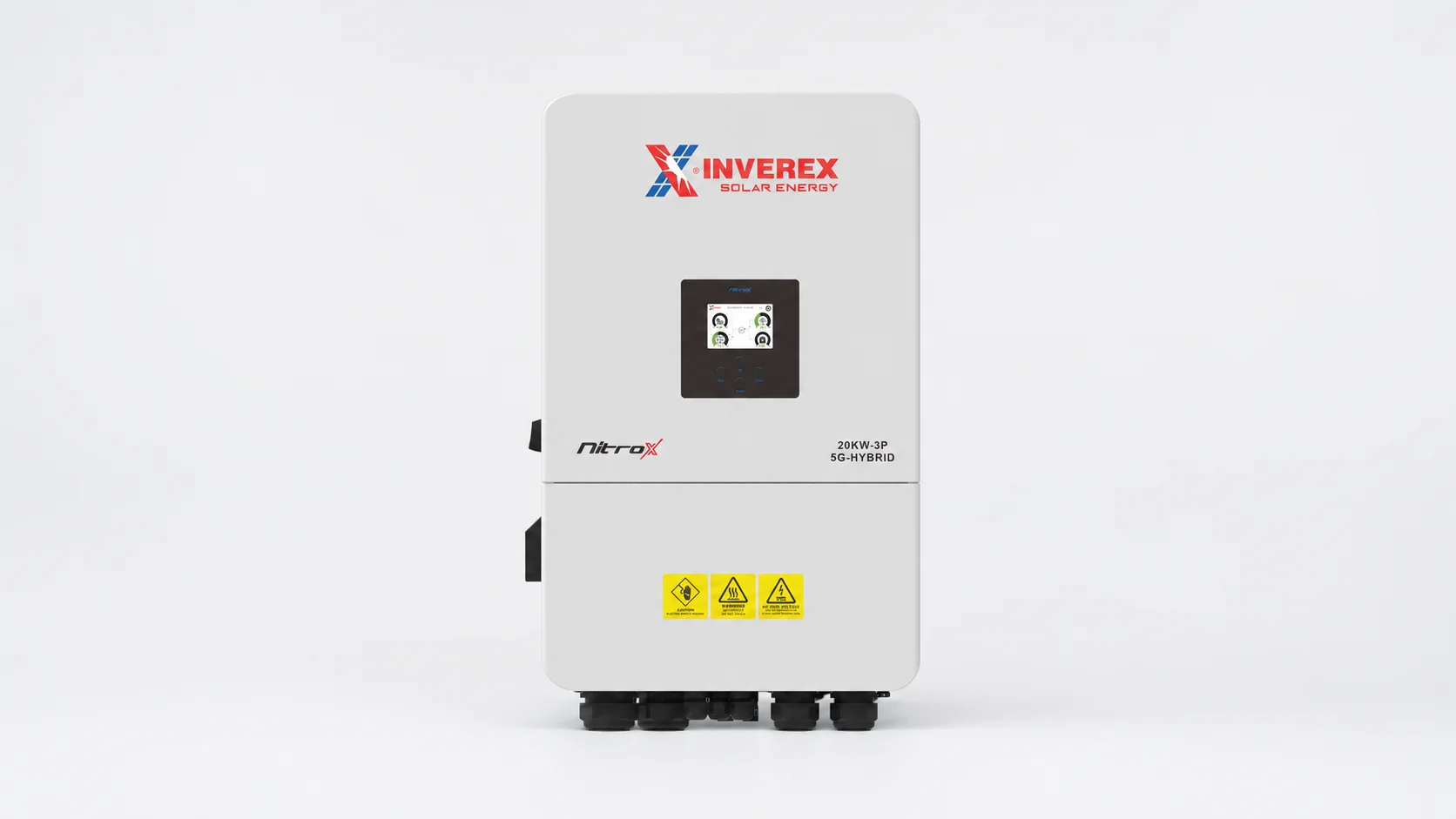

Inverex NitroX 20kW 3P 5G LV Hybrid Inverter
Rs 1,200,000 – Rs 1,255,000
Rs 60,000 per kW
Price updated: 11 August 2026
Full specifications
| Brand | Inverex |
| Inverter Specifications | |
| Model | NITROX HYBRID-20KW-LV-3P |
| Inverter type | Hybrid |
| Grid type | Three Phase |
| IP class | IP65 |
| Warranty | 5 Years |
| PV Input Data | |
| Max DC input power | 30000 W |
| PV input voltage | 800 V |
| MPPT voltage range | 160-650 V |
| No. of MPPT | 2 |
| No. of strings per MPPT | 2+1 |
| Startup voltage | 160 V |
| AC Output Data | |
| Rated AC output | 20000 W |
| Smart load / generator input | Yes |
| Parallel operation | Yes |
| Power factor | 0.8 leading to 0.8 lagging |
| Battery Data | |
| Battery voltage range | 40-60 V |
| Max. charging current | 350 A |
| Max. discharging current | 350 A |
| BMS | Self-adaption to BMS |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 50.6 kg |
| Operating temperature | -40°C ~ +60°C |
| Max. efficiency | 97.6% |
| Size (W×H×D) | 456 × 750 × 268.5 mm |
