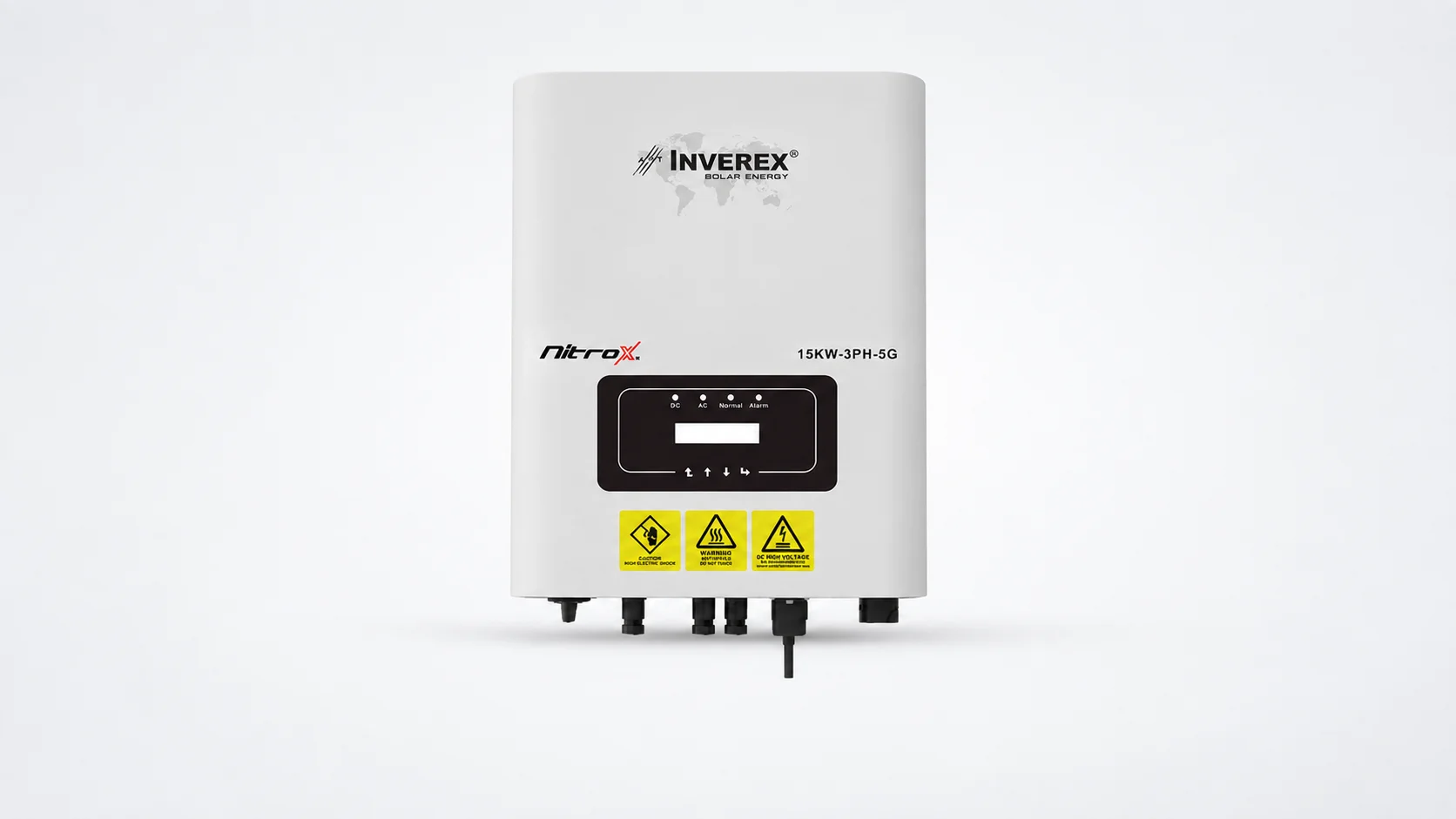

Inverex NitroX 15kW 3Ph-5G On-Grid Inverter

Rs 285,000
Rs 19,000 per kW
Price updated: 21 September 2026
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelNITROX 15KW 3Ph-5G
Inverter typeOn-Grid
Grid typeThree Phase
IP classIP65
Warranty10 Years
PV Input Data
Max DC input power20000 W
PV input voltage1000 V
MPPT voltage range200-850 V
No. of MPPT2
No. of strings per MPPT2
Startup voltage250 V
AC Output Data
Rated AC output15000 W
Rated AC output current21.7 A
Power factor0.8 leading to 0.8 lagging
Battery Data
Battery typeNone (on-grid)
Protections
PV reverse polarity detectionYes
Insulation resistance detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight15 kg
Operating temperature-25°C ~ +65°C
Max. efficiency98.6%
Size (W×H×D)333 × 472 × 202 mm
