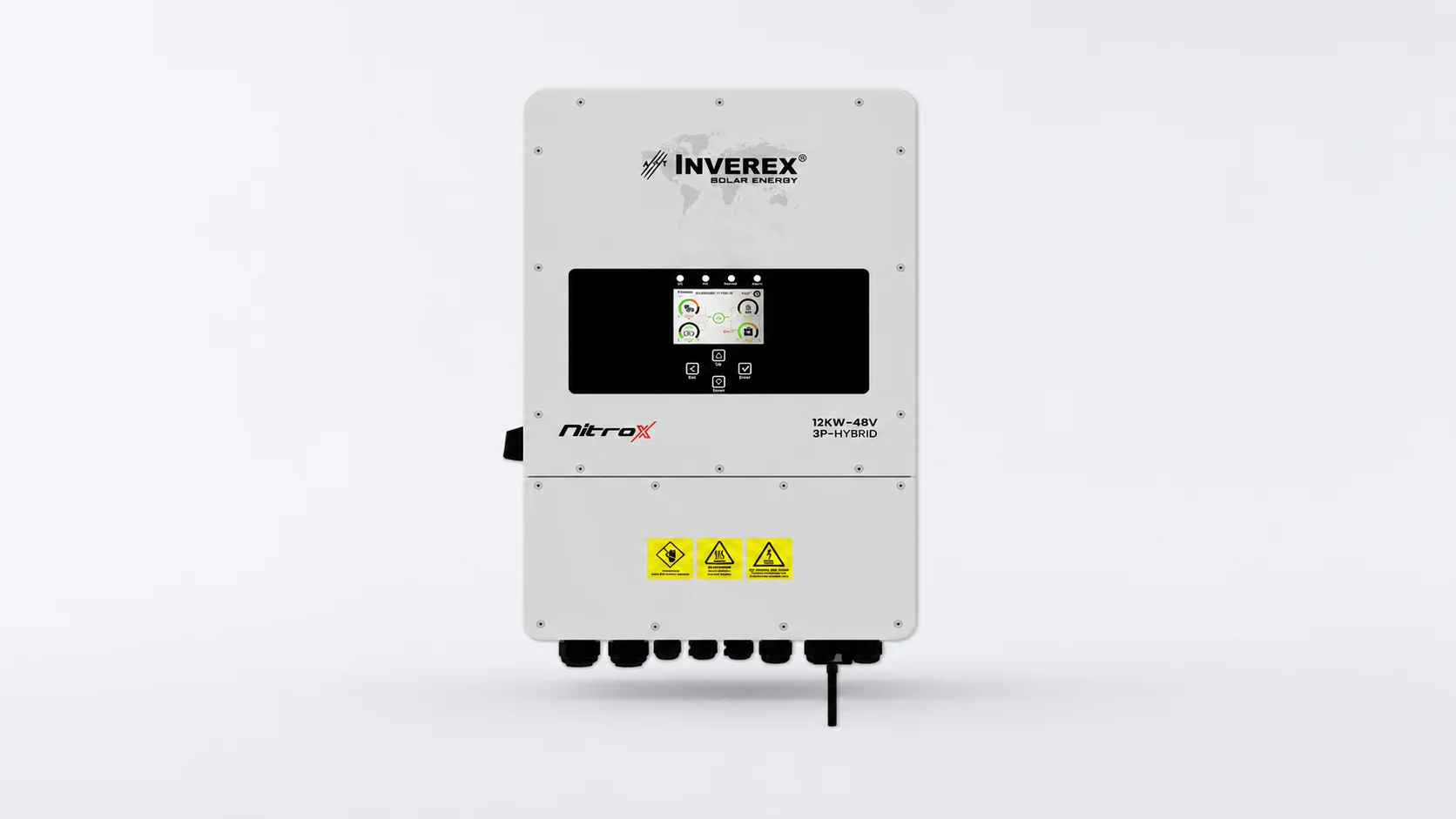

Inverex NitroX 12kW 3P-48V Hybrid Inverter Price in Pakistan
Rs 745,000
Rs 62,083 per kW
Price updated: 16 September 2026
Full specifications
| Brand | Inverex |
| Inverter Specifications | |
| Model | NITROX HYBRID 12 KW 3P-48V |
| Inverter type | Hybrid |
| Grid type | Three Phase |
| IP class | IP65 |
| Warranty | 5 Years |
| PV Input Data | |
| Max DC input power | 15600 W |
| PV input voltage | 800 V |
| MPPT voltage range | 200-650 V |
| No. of MPPT | 2 |
| No. of strings per MPPT | 2+1 |
| Startup voltage | 160 V |
| AC Output Data | |
| Rated AC output | 12000 W |
| Smart load / generator input | Yes |
| Parallel operation | Yes |
| Power factor | 0.8 leading to 0.8 lagging |
| Battery Data | |
| Battery voltage range | 40-60 V |
| Max. charging current | 240 A |
| Max. discharging current | 240 A |
| BMS | RS485 / CAN |
| Protections | |
| PV arc fault detection | Yes |
| PV input lightning protection | Yes |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| General Specifications | |
| Weight | 33.6 kg |
| Operating temperature | -45°C ~ +60°C |
| Max. efficiency | 97.6% |
| Size (W×H×D) | 422 × 699.3 × 279 mm |
