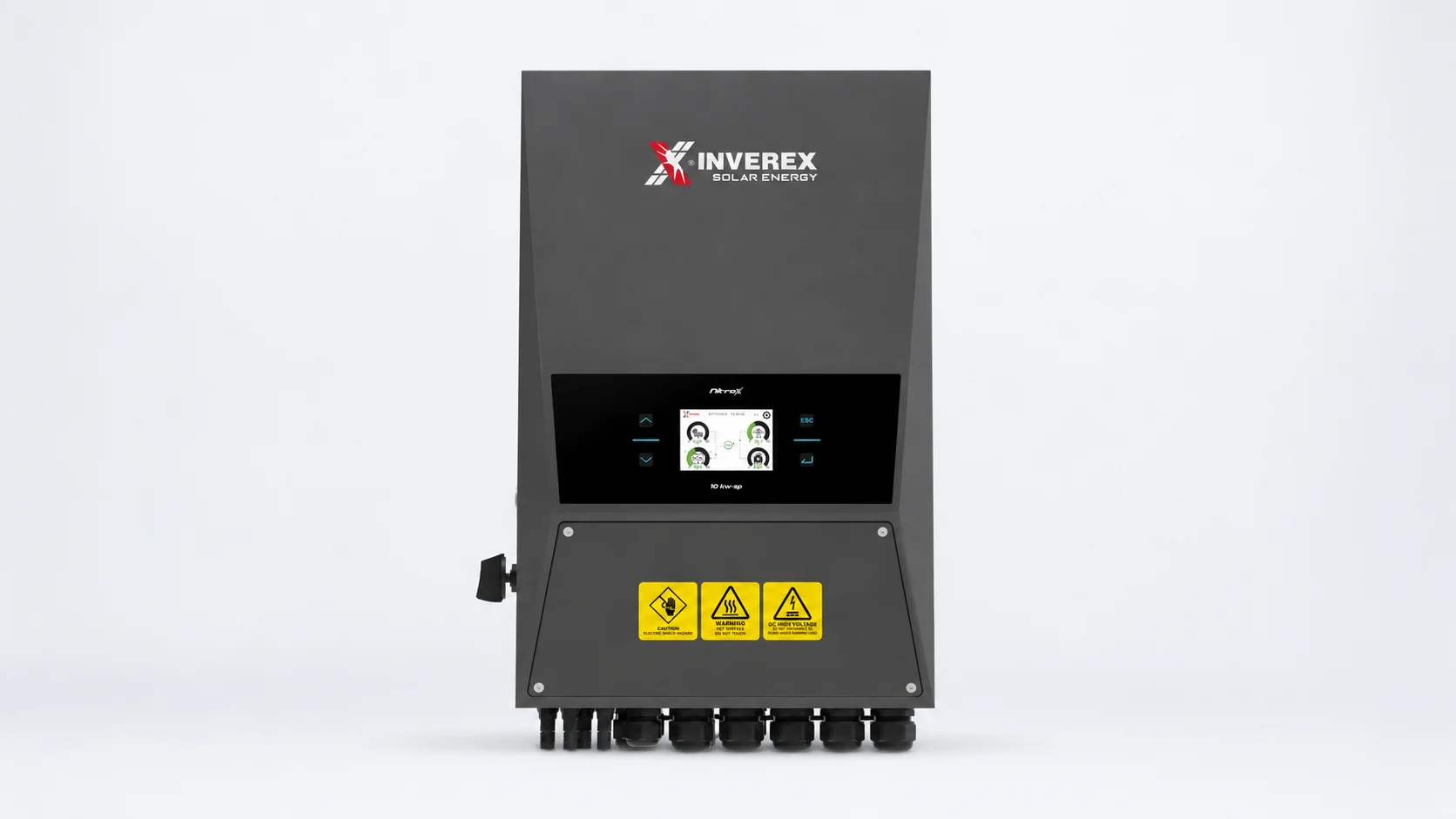

INVEREX HYBRID 10 KW SP-5G

Inverex NitroX 10kW SP-5G Hybrid Inverter Price in Pakistan

Rs 475,000 – Rs 560,000
Rs 47,500 per kW
Price updated: 16 September 2026
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelINVEREX HYBRID 10 KW SP-5G
Inverter typeHybrid
Grid typeSingle Phase
IP classIP65
Warranty5 Years
PV Input Data
Max DC input power16000 W
PV input voltage500 V
MPPT voltage range150-425 V
No. of MPPT2
No. of strings per MPPT2+2
Startup voltage125 V
AC Output Data
Rated AC output10000 W
Smart load / generator inputYes
Parallel operationYes
Power factor0.8 leading to 0.8 lagging
Battery Data
Battery voltage range40-60 V
Max. charging current210 A
Max. discharging current210 A
BMSSelf-adaption to BMS
Protections
PV reverse polarity detectionYes
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight25.2 kg
Operating temperature-40°C ~ +60°C
Max. efficiency97.6%
Size (W×H×D)343 × 580 × 258 mm
