Full specifications

Brand	Huawei
Inverter Specifications

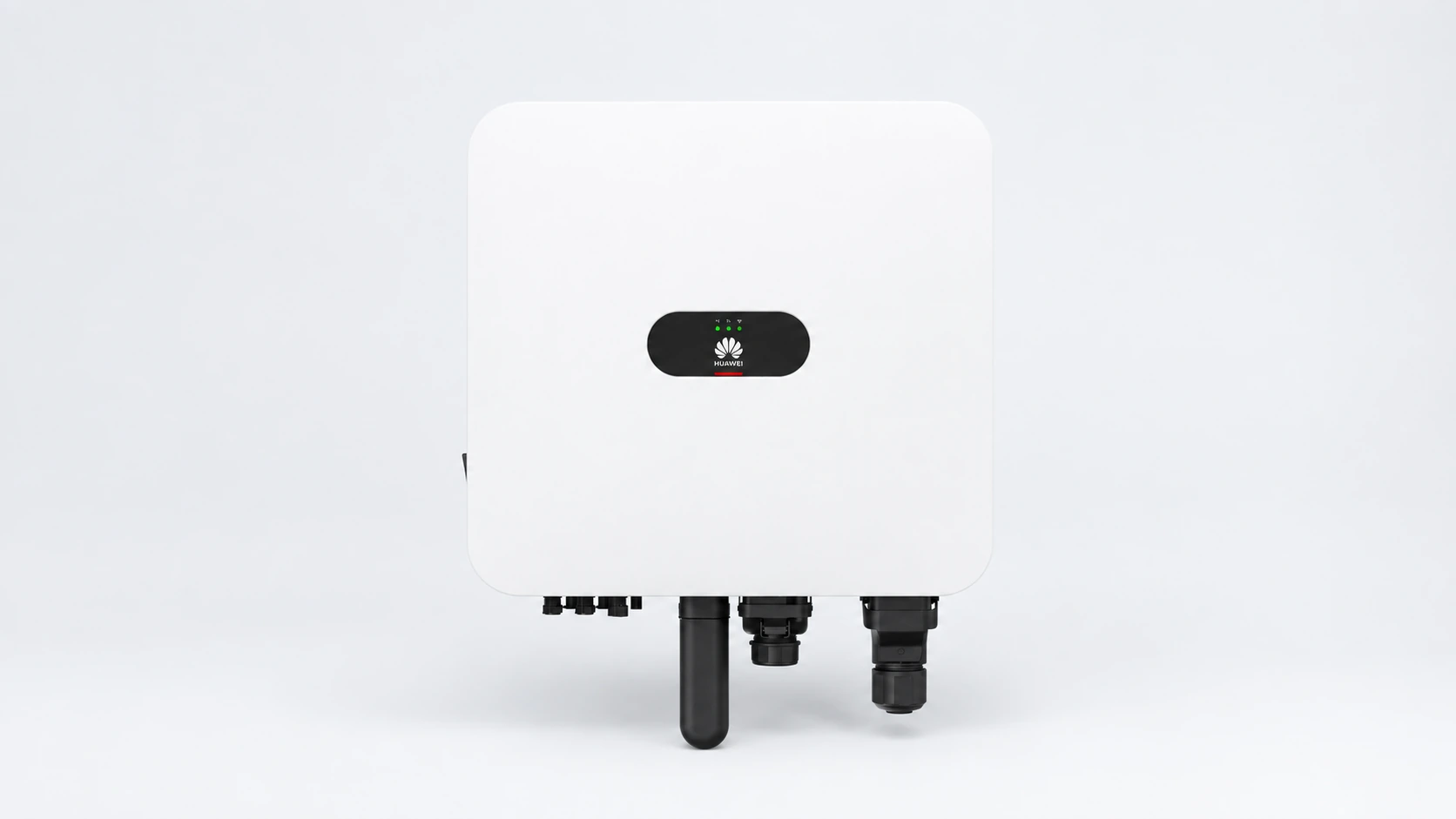

Model	SUN2000-10K-MAP0
Inverter type	Hybrid
Grid type	Three Phase
IP class	IP66
PV Input Data
Max DC input power	18000 W
PV input voltage	1100 V
MPPT voltage range	160-1000 V
Max. PV input current	16 A
No. of MPPT	2
No. of strings per MPPT	1
Startup voltage	160 V
AC Output Data
Rated AC output	10000 W
Rated AC output current	16.7 A
Rated voltage	400 V
Power factor	0.8 leading to 0.8 lagging
Battery Data
Battery type	Lithium
Battery voltage range	600-980 V
Max. charging current	20 A
Max. discharging current	20 A
BMS	RS485 / WLAN / Ethernet
Protections
PV arc fault detection	Yes
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	21 kg
Operating temperature	-25°C ~ +60°C
Max. efficiency	98.6%
Size (W×H×D)	490 × 460 × 130 mm

Note: High-voltage battery platform: 600-980 V, taking LUNA2000-5/10/15-S0 or LUNA2000-7/14/21-S1. It will not work with a 48 V bank, which rules out most lithium already sold in Pakistan. Maximum charging power 12,000 W across the range; maximum discharge 11000 W on this model. Backup needs the separate SmartGuard-63A-T0, and switchover is 20 ms rather than the sub-10 ms of a true UPS-grade unit. Overload behaviour is generous once running: 110% continuous, 150% for 1 min on three phases, 200% for 10 seconds. Supports 100% three-phase asymmetric load, so one heavy single-phase circuit is fine. Peak efficiency 98.6%, European 98.1%. Two MPPTs at 16 A, one string each. AFCI arc fault plus connector temperature sensing on both PV and battery. 21 kg, IP66, natural convection at under 29 dB - genuinely silent, unlike the fan-cooled M5.
