Full specifications

Brand	Fronus
Inverter Specifications

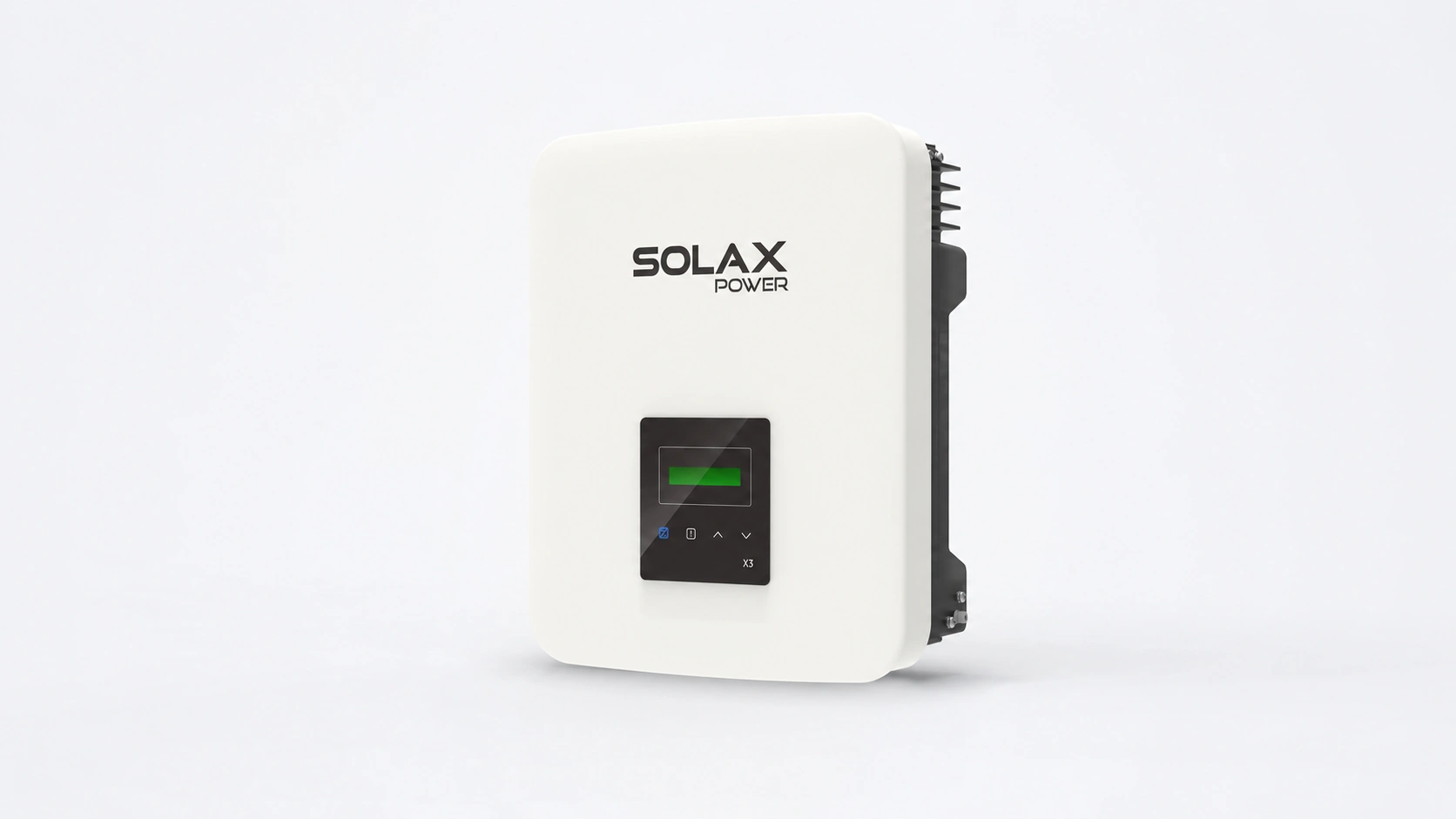

Model	X3-MIC-15K-G2
Inverter type	On-Grid
Grid type	Three Phase
IP class	IP66
PV Input Data
Max DC input power	30000 W
PV input voltage	1000 V
MPPT voltage range	120-980 V
Max. PV input current	32 A
No. of MPPT	2
No. of strings per MPPT	2
Startup voltage	150 V
AC Output Data
Rated AC output	15000 W
Rated AC output current	21.8 A
Rated voltage	400 V
Power factor	0.8 leading to 0.8 lagging
Battery Data
Battery type	None (on-grid)
Protections
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	18 kg
Operating temperature	-30°C ~ +60°C
Max. efficiency	98.3%
Size (W×H×D)	342 × 434 × 156 mm

Note: Grid-tie only - no battery input and no backup output. Two MPPTs with 2 string(s) each at 32 A, MPPT window 120-980 V on a 1000 V ceiling, nominal operating point 640 V. Maximum apparent power 15000 VA, maximum output current 22.7 A. IP66 and rated -30 to +60 degC, so it will take a Pakistani summer wall. 18 kg, natural convection below 10 kW and smart fan cooling above, typical noise under 50 dB. AFCI arc-fault protection and an AC auxiliary supply are both optional extras, not fitted as standard.
