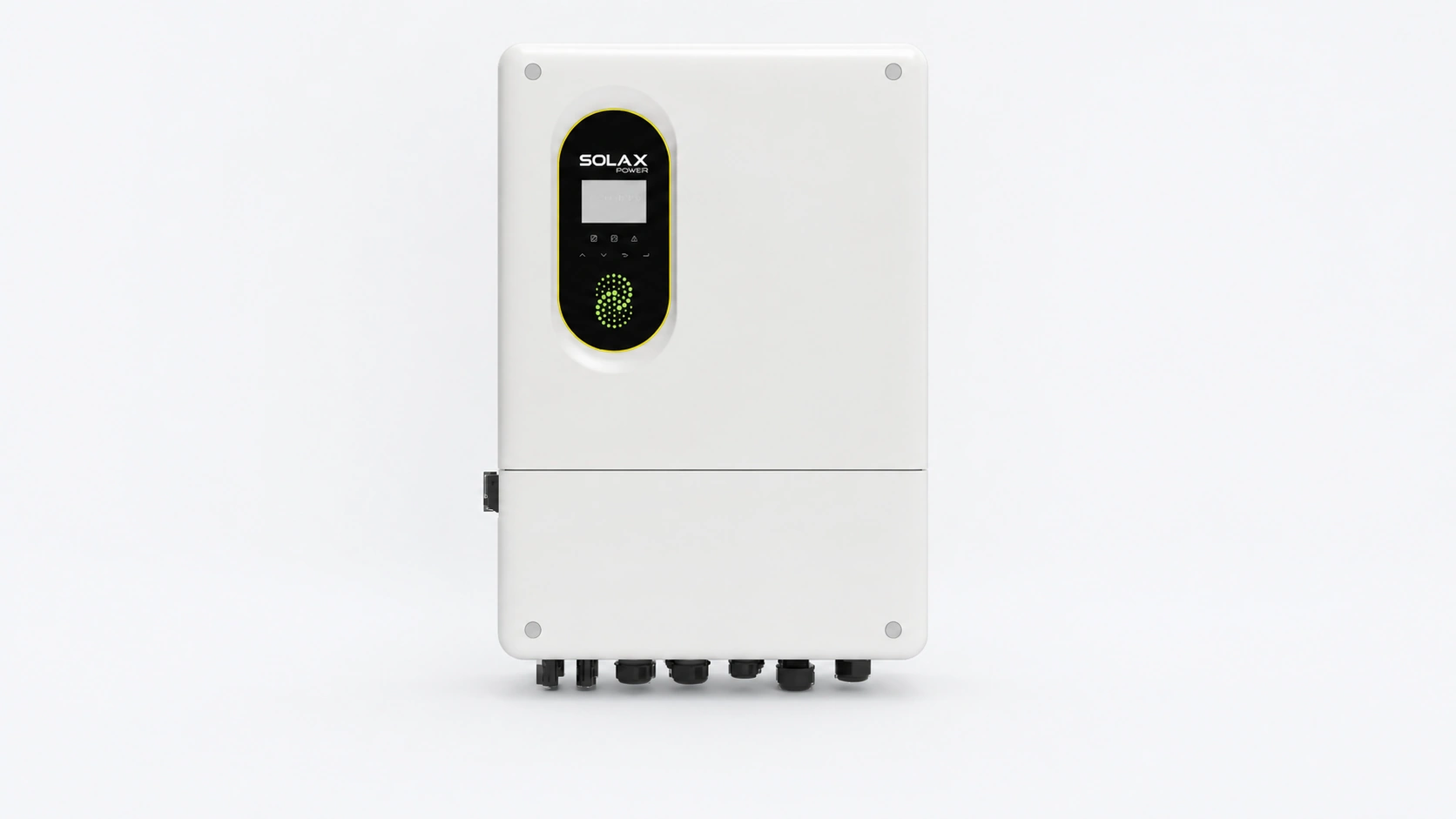

10kW-X3-Genki Fronus Inverters

Fronus X3-GENKi 10kW 3-Phase Off-Grid Inverter

Price on request
Compare this modelDownload datasheet (PDF)

Full specifications

Brand
Inverter Specifications
ModelX3-GENKi-10kW
Inverter typeOff-Grid
Grid typeThree Phase
IP classIP65
PV Input Data
Max DC input power20000 W
PV input voltage1000 V
MPPT voltage range160-950 V
Max. PV input current36 A
No. of MPPT2
No. of strings per MPPT2
Startup voltage150 V
AC Output Data
Rated AC output10000 W
Rated AC output current14.50 A
Rated voltage400 V
Smart load / generator inputYes
Battery Data
Battery typeLithium & Lead-Acid
Battery voltage range40-60 V
Max. charging current250 A
Max. discharging current250 A
BMSCAN / RS485 / WiFi / LAN / 4G / NTC
Protections
PV reverse polarity detectionYes
Insulation resistance detectionYes
Leakage current detectionYes
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight44.6 kg
Operating temperature-25°C ~ +60°C
Max. efficiency97.6%
Size (W×H×D)520 × 705 × 258 mm
Note: No grid export and no net metering. Verified on the Fronus product page: this model has no Grid-Tie Operation block and no feed-in voltage or frequency range, so it cannot synchronise to WAPDA or K-Electric. It will still take utility or generator in as a backup source and charge the battery from it - that is not the same as being grid-interactive. Runs as an off-grid system: it runs the load from PV and battery with grid or generator as a backup source, but it does not export, so it cannot be net-metered. Unusual combination for Pakistan - three-phase output on a standard 48 V bank (40-60 V), where most three-phase hybrids demand a high-voltage stack. 250 A charge and discharge, lithium or lead-acid, with BMS self-adaption for lithium and a 3-stage curve for lead-acid. EPS peak is twice rated power for 10 s, switchover under 6 ms. 2 / 1 MPPT strings at 36 / 18 A, short circuit 50 / 25 A, window 160-950 V. Generator input on the AC side. Battery terminal temperature protection is fitted. 44.6 kg and fan cooled at up to 55 dB - this is a plant-room unit, not a lounge wall.
