Full specifications

Brand	Fronus
Inverter Specifications

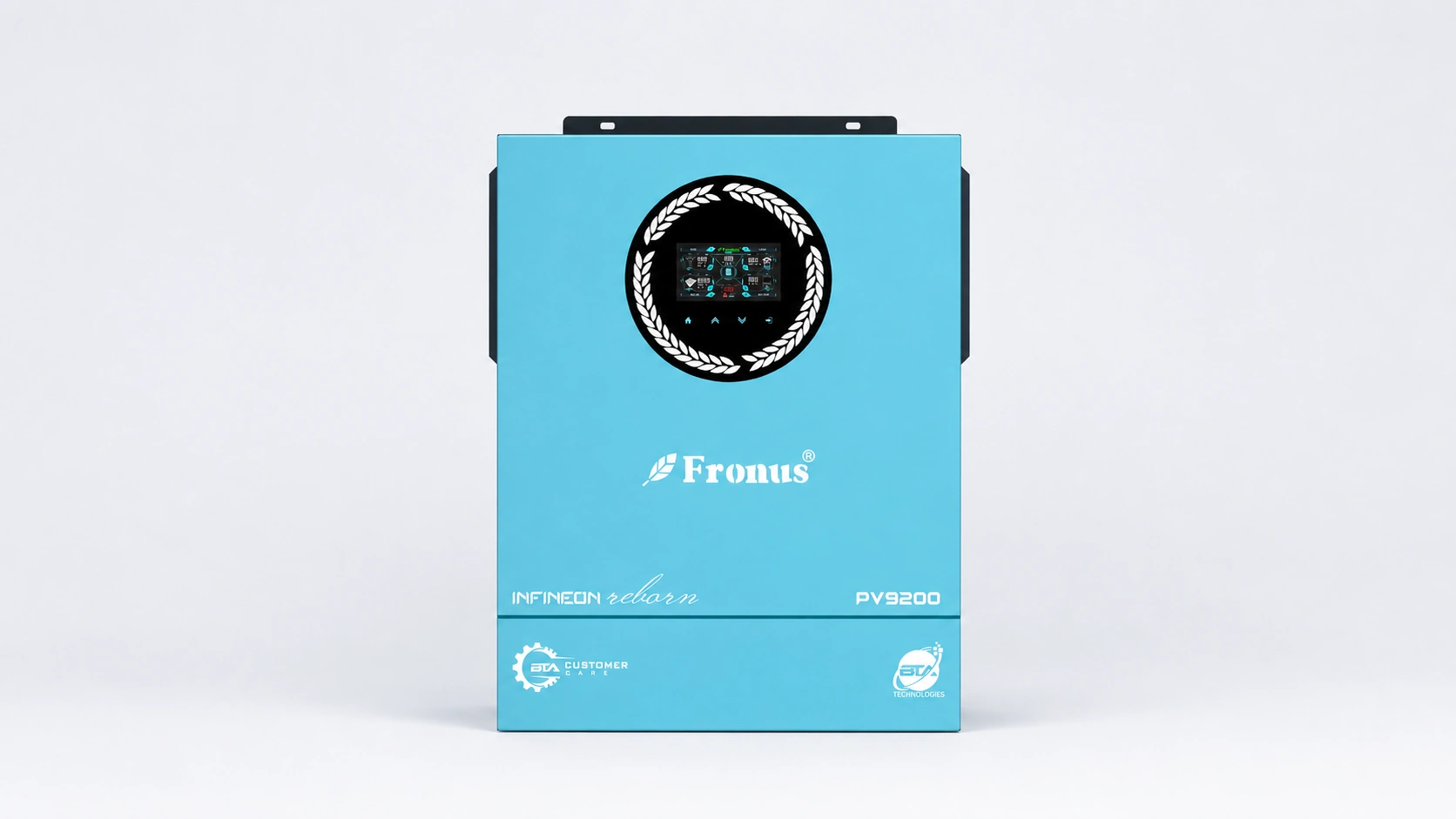

Model	PV9200 (Infineon Reborn)
Inverter type	Hybrid
Grid type	Single Phase
IP class	IP21
PV Input Data
Max DC input power	9200 W
PV input voltage	500 V
MPPT voltage range	90-450 V
No. of MPPT	2
Startup voltage	90 V
AC Output Data
Rated AC output	8200 W
Rated AC output current	35.6 A
Rated voltage	230 V
Power factor	> 0.99
Battery Data
Battery type	Lithium & Lead-Acid
Battery voltage range	48 V
Max. charging current	160 A
Max. discharging current	160 A
BMS	RS232 / WiFi / GPRS
Protections
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	14.2 kg
Operating temperature	-10°C ~ +50°C
Max. efficiency	98%
Size (W×H×D)	390 × 130 × 500 mm

Note: Hybrid with grid feed-in over a 195-253 VAC window, so it can be net-metered. 48 V bank with 160 A solar and 100 A utility charging, 16,400 W surge, 35.6 A output at >0.99 power factor. Dual load output: main circuit 8,200 W, second circuit up to 2,733 W in battery mode, cutting out at 52 VDC and returning at 54 VDC. 93% peak inverter efficiency, 98% maximum DC/AC conversion. IP21 and rated -10 to +50 degC - indoor mounting only. Do not confuse this with the Platinum PV9200: same 8.2 kW output and same 9,200 W array, but the Platinum takes 140 A from utility against 100 A here, runs a single 23 A tracker instead of two, and sits in a smaller 310 x 110 x 420 case. WARNING on your media library: the file named Datasheet-PV-9200-Platinum.pdf actually contains THIS model's specification, not the Platinum's - worth renaming before you upload.
