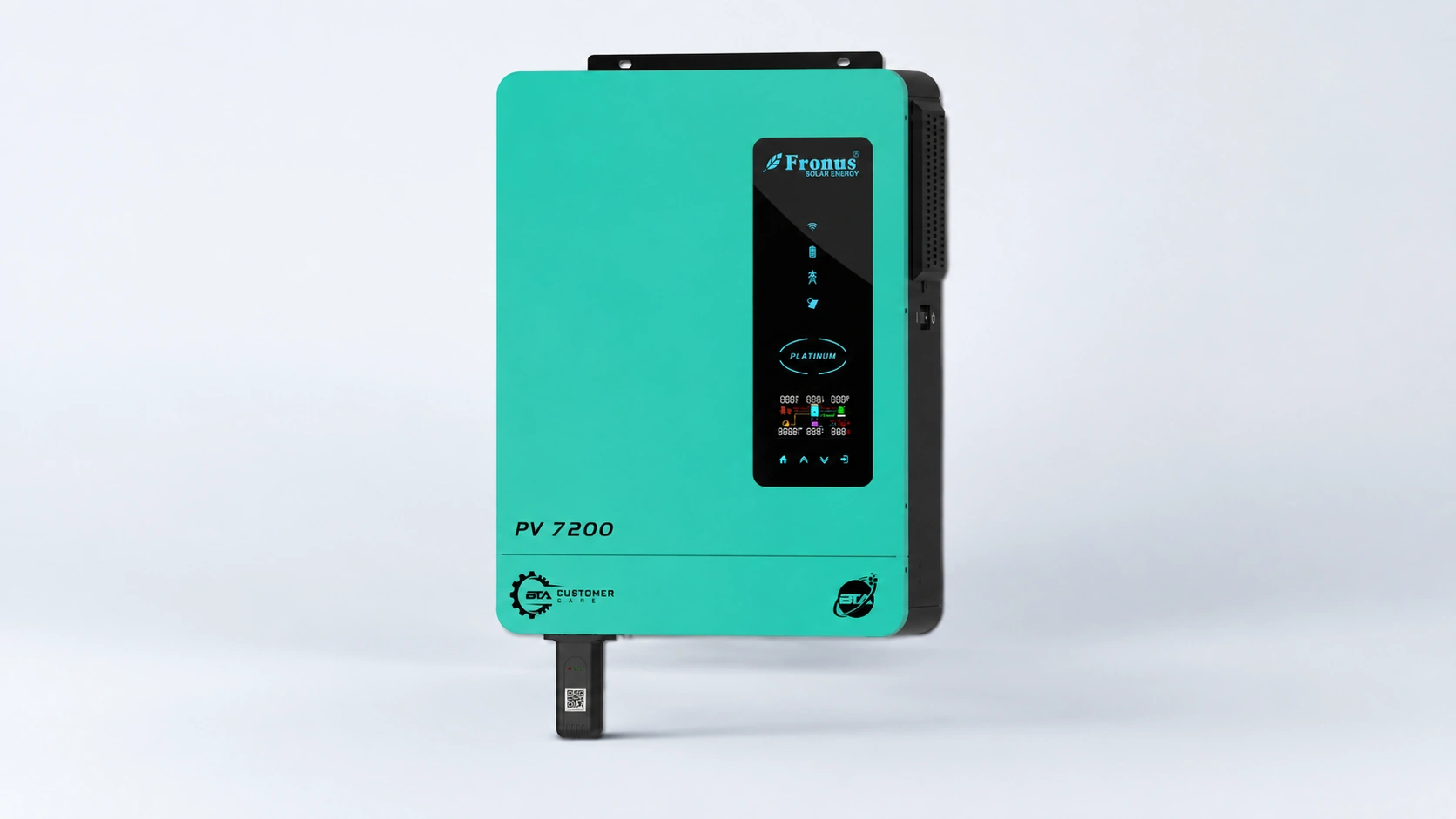

Fronus PV7200 Platinum 6.2kW Hybrid Solar Inverter
Full specifications
| Brand | Fronus |
| Inverter Specifications | |
| Model | PV7200 (Platinum) |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| IP class | IP21 |
| PV Input Data | |
| Max DC input power | 7200 W |
| PV input voltage | 500 V |
| MPPT voltage range | 90-450 V |
| Max. PV input current | 23 A |
| No. of MPPT | 1 |
| Startup voltage | 90 V |
| AC Output Data | |
| Rated AC output | 6200 W |
| Rated AC output current | 27 A |
| Rated voltage | 230 V |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 48 V |
| Max. charging current | 120 A |
| Max. discharging current | 160 A |
| BMS | RS232 / WiFi / GPRS |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 14.2 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 98% |
| Size (W×H×D) | 334 × 110 × 453 mm |
Note: Hybrid with grid feed-in: the datasheet carries a Grid-Tie Operation block with a 195-253 VAC feed-in window, so this one can be net-metered. 48 V battery bank, 120 A maximum solar charging and 100 A from utility, 160 A combined. A single MPP tracker at 23 A. At 14.2 kg it is materially heavier than the Infineon Reborn PV7200's 10.0 kg despite the same 6.2 kW output. Maximum PV array 7200 W over a 90-450 V MPPT window, open-circuit ceiling 500 V. Rated output 6200 VA with 12400 W surge. Note the Fronus Infineon Reborn line uses the same PV7200 model number on a different inverter - check which line you are quoting. Transfer time 10 ms in UPS mode, 20 ms for appliances. Utility charging is 3-step with selectable flooded and AGM/gel set points. Rated -10 to +50 degC and IP21-class, so it is an indoor unit - it must not be wall-mounted outdoors. Dual load output: the second circuit carries up to 2067 W in battery mode. Street price in Pakistan Rs 140,000 (solarpanelprices.pk, read 21 Aug 2026).
