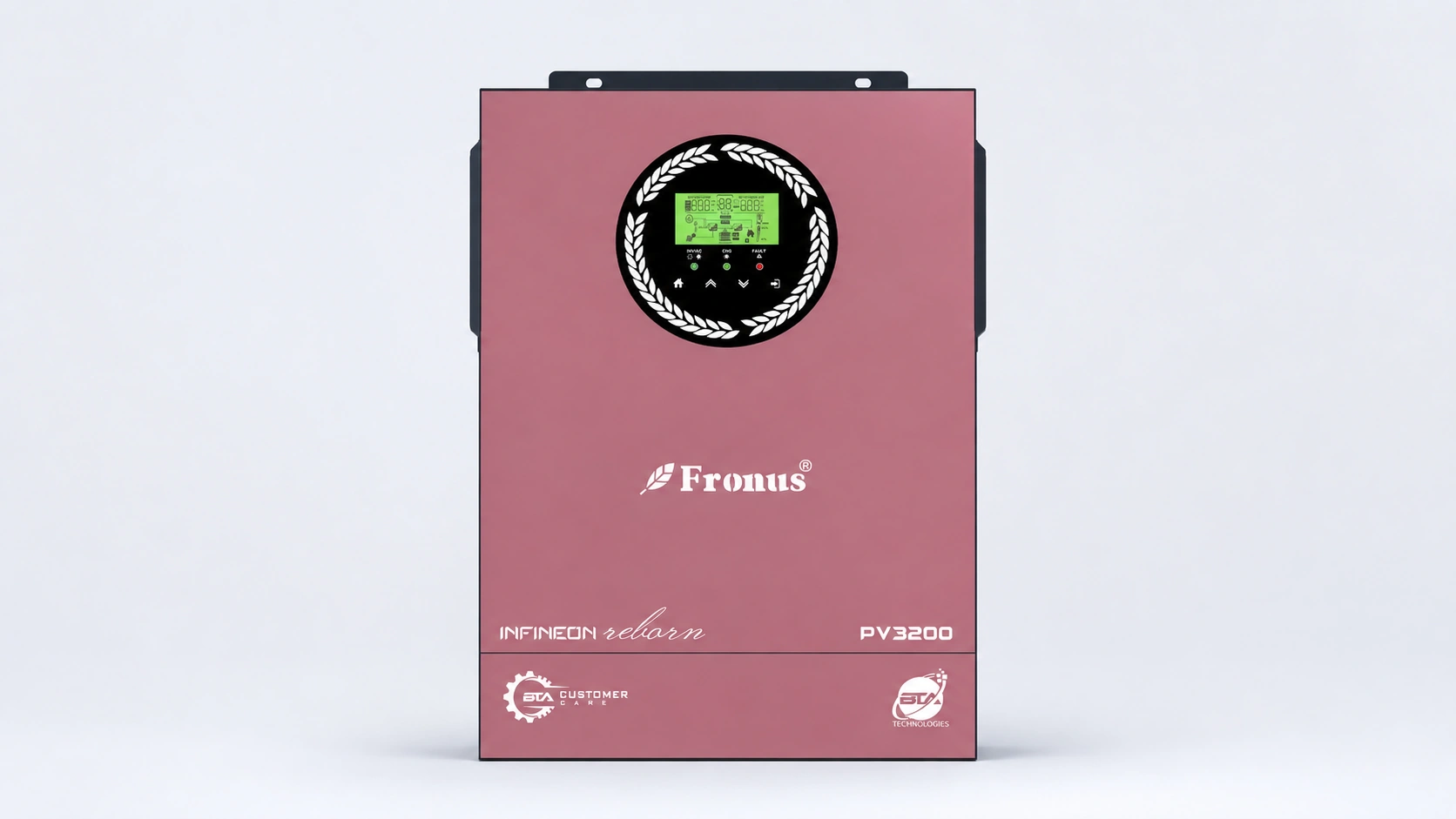

Fronus PV3200 Infineon Reborn 3kW Off-Grid Solar Inverter
Full specifications
| Brand | Fronus |
| Inverter Specifications | |
| Model | PV3200 (Infineon Reborn) |
| Inverter type | Off-Grid |
| Grid type | Single Phase |
| IP class | IP21 |
| PV Input Data | |
| Max DC input power | 3000 W |
| PV input voltage | 400 V |
| MPPT voltage range | 30-400 V |
| AC Output Data | |
| Rated AC output | 3000 W |
| Rated voltage | 230 V |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 24 V |
| Max. charging current | 80 A |
| Max. discharging current | 80 A |
| BMS | RS232 / WiFi / GPRS |
| Protections | |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 5.4 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 94% |
| Size (W×H×D) | 270 × 100 × 390 mm |
Note: No grid export and no net metering. Verified on the Fronus product page: this model has no Grid-Tie Operation block and no feed-in voltage or frequency range, so it cannot synchronise to WAPDA or K-Electric. It will still take utility or generator in as a backup source and charge the battery from it - that is not the same as being grid-interactive. Runs as an off-grid system - this unit has no grid feed-in. It powers the load from PV and battery and takes utility or generator as a backup source, but it cannot export, so it cannot be net-metered. 24 V battery bank, 80 A maximum solar charging and 60 A from utility. Maximum PV array 3000 W over a 30-400 V MPPT window, open-circuit ceiling 400 V. Rated output 3200 VA. Transfer time 10 ms in UPS mode, 20 ms for appliances. Utility charging is 3-step with selectable flooded and AGM/gel set points. Rated -10 to +50 degC and IP21-class, so it is an indoor unit - it must not be wall-mounted outdoors. Street price in Pakistan Rs 90,000 (solarpanelprices.pk, read 21 Aug 2026).
