Full specifications

Brand	Fronus
Inverter Specifications

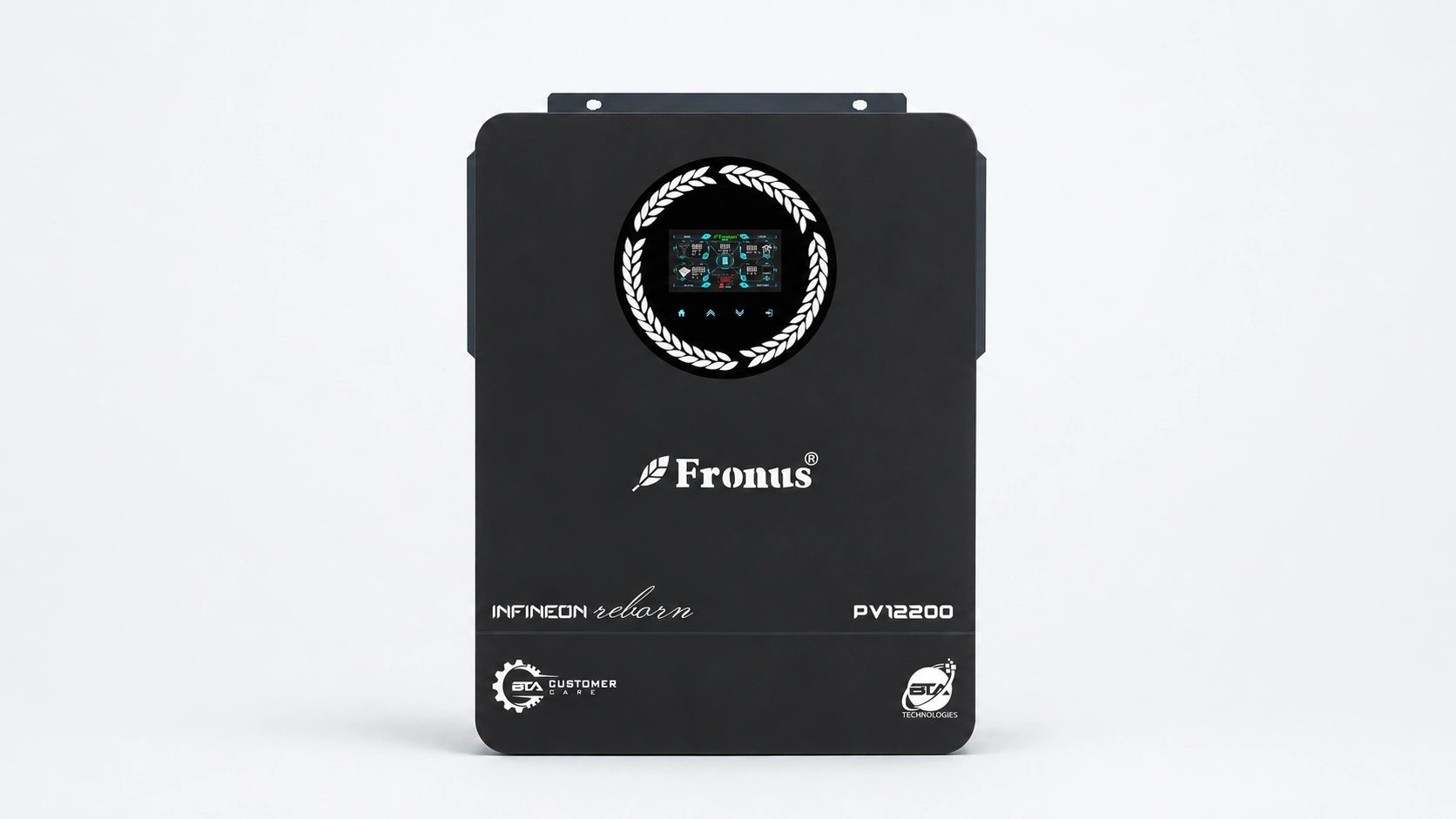

Model	PV12200 (Infineon Reborn)
Inverter type	Hybrid
Grid type	Single Phase
IP class	IP21
PV Input Data
Max DC input power	12200 W
PV input voltage	500 V
MPPT voltage range	90-450 V
No. of MPPT	2
AC Output Data
Rated AC output	10200 W
Rated AC output current	44.3 A
Rated voltage	230 V
Battery Data
Battery type	Lithium & Lead-Acid
Battery voltage range	48 V
Max. charging current	160 A
Max. discharging current	160 A
BMS	RS232 / WiFi / GPRS
Protections
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
Over voltage protection	Yes
General Specifications
Weight	14.5 kg
Operating temperature	-10°C ~ +50°C
Max. efficiency	98%
Size (W×H×D)	390 × 130 × 530 mm

Note: Hybrid with grid feed-in: the datasheet carries a Grid-Tie Operation block with a 195-253 VAC feed-in window, so this one can be net-metered. 48 V battery bank, 160 A maximum solar charging and 100 A from utility. Maximum PV array 12200 W split as 5400 W per channel across two inputs, over a 90-450 V MPPT window, open-circuit ceiling 500 V. Rated output 10200 VA. Transfer time 10 ms in UPS mode, 20 ms for appliances. Utility charging is 3-step with selectable flooded and AGM/gel set points. Rated -10 to +50 degC and IP21-class, so it is an indoor unit - it must not be wall-mounted outdoors. Dual load output: the second load circuit carries up to 3400 W in battery mode, which lets you put critical circuits on one output and sheddable load on the other.
