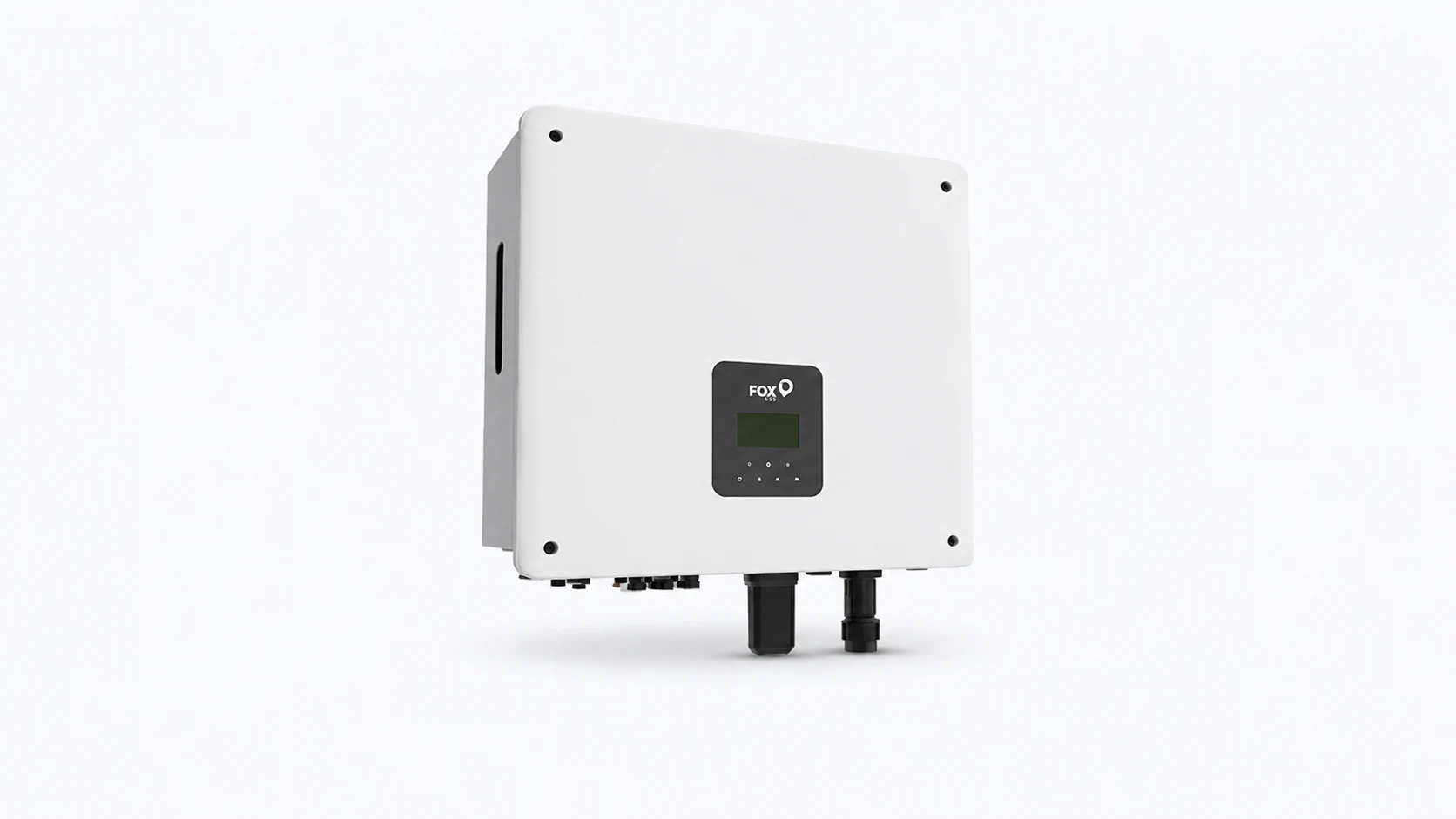

Fox ESS H1-6.0-E-G2 6kW Hybrid Inverter
Price on request
Full specifications
| Brand | Fox ESS |
| Inverter Specifications | |
| Model | H1-6.0-E-G2 |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| IP class | IP65 |
| PV Input Data | |
| Max DC input power | 12000 W |
| PV input voltage | 600 V |
| MPPT voltage range | 80-550 V |
| Max. PV input current | 16 A |
| No. of MPPT | 2 |
| No. of strings per MPPT | 1 |
| Startup voltage | 75 V |
| AC Output Data | |
| Rated AC output | 6000 W |
| Rated AC output current | 27.3 A |
| Rated voltage | 230 V |
| Parallel operation | Yes |
| Power factor | 1 (adjustable 0.8 leading to 0.8 lagging) |
| Battery Data | |
| Battery type | Lithium |
| Battery voltage range | 80-480 V |
| Max. charging current | 40 A |
| Max. discharging current | 40 A |
| BMS | CAN |
| Protections | |
| PV arc fault detection | Yes |
| PV reverse polarity detection | Yes |
| Insulation resistance detection | Yes |
| Leakage current detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 22 kg |
| Operating temperature | -25°C ~ +60°C |
| Max. efficiency | 97.08% |
| Size (W×H×D) | 434 × 418 × 185 mm |
Note: G2 generation. High-voltage battery platform at 80-480 V, so it pairs with Fox ESS HV stacks rather than a 48 V bank. European efficiency 96.33%, peak 97.08%. EPS delivers 7200 VA peak for 60 s with under 10 ms switchover. Grid input takes 54.5 A / 12000 VA. Parallels to 10 units, IP65, 22 kg. Each MPPT is capped at 6000 W no matter which model, so on the larger units the array has to be split reasonably evenly across the two inputs.
