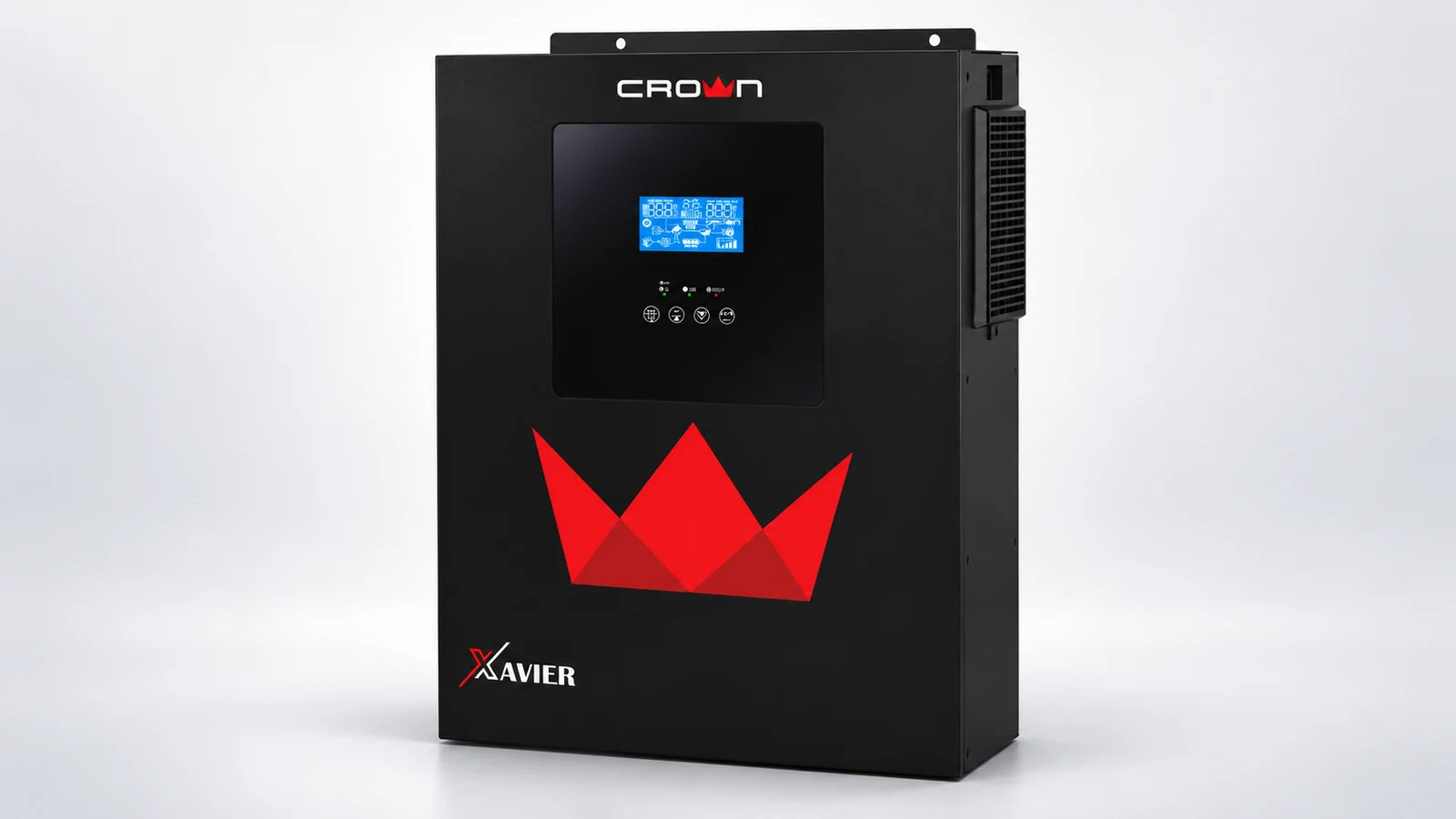

Crown Xavier 3kW Off-Grid Inverter Price in Pakistan
Full specifications
| Brand | Crown |
| Inverter Specifications | |
| Model | X-3KW-PF1 |
| Inverter type | Off-Grid |
| Grid type | Single Phase |
| Warranty | 1 Years |
| PV Input Data | |
| Max DC input power | 3000 W |
| PV input voltage | 450 V |
| MPPT voltage range | 60-400 V |
| AC Output Data | |
| Rated AC output | 3000 W |
| Rated voltage | 230 V |
| Power factor | 1 |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 24 V |
| Max. charging current | 100 A |
| BMS | RS232 |
| Protections | |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| General Specifications | |
| Weight | 7.5 kg |
| Operating temperature | -10°C ~ 50°C |
| Max. efficiency | 93% |
| Size (W×H×D) | 288 × 390 × 100 mm |
Note: 3000 W on a 24 V battery bank from up to 3000 W of PV, over a 60 to 400 V MPPT window on a 450 V ceiling, with 100 A of solar charging against 80 A from the grid. Surge 6000 VA, peak efficiency 93%, transfer 10 ms for computers or 20 ms for appliances, pure sine wave at 230 V, power factor 1. Input window selectable, 170 to 280 V for computers or 90 to 280 V for appliances. Float 27 V with overcharge cut-off at 32 V, lithium or lead-acid, smart battery equalisation and a thermal protection sensor. Sold as the PV-3000, and badged Xavier 3KW-PF 1.0 on its own datasheet. Off-grid only: Crown title the range sheet Single Phase Off-Grid Inverter and there is no feed-in section, so this is not a net-metering inverter. Warranty is 1 year comprehensive plus 3 years of free service, which is what the 4-year badge on this range actually means. Crown's two datasheets disagree about the Wi-Fi: the range sheet lists it as built in, the PV-3000 sheet calls it optional, so confirm it is fitted before paying for monitoring. Anti-dust kit, 2.5-inch LCD with touch pad, 7.5 kg, case 288 mm wide, 390 mm tall, 100 mm deep. Price shown is the w11stop.com listing, Rs 69,999 (in stock), read 26 September 2026; its 24 V battery, 100 A charging, 60 to 400 V window and 6000 VA surge all match this datasheet. Its spec tab still shows an older Rs 98,000, which is the stale figure, not the price it sells at.
