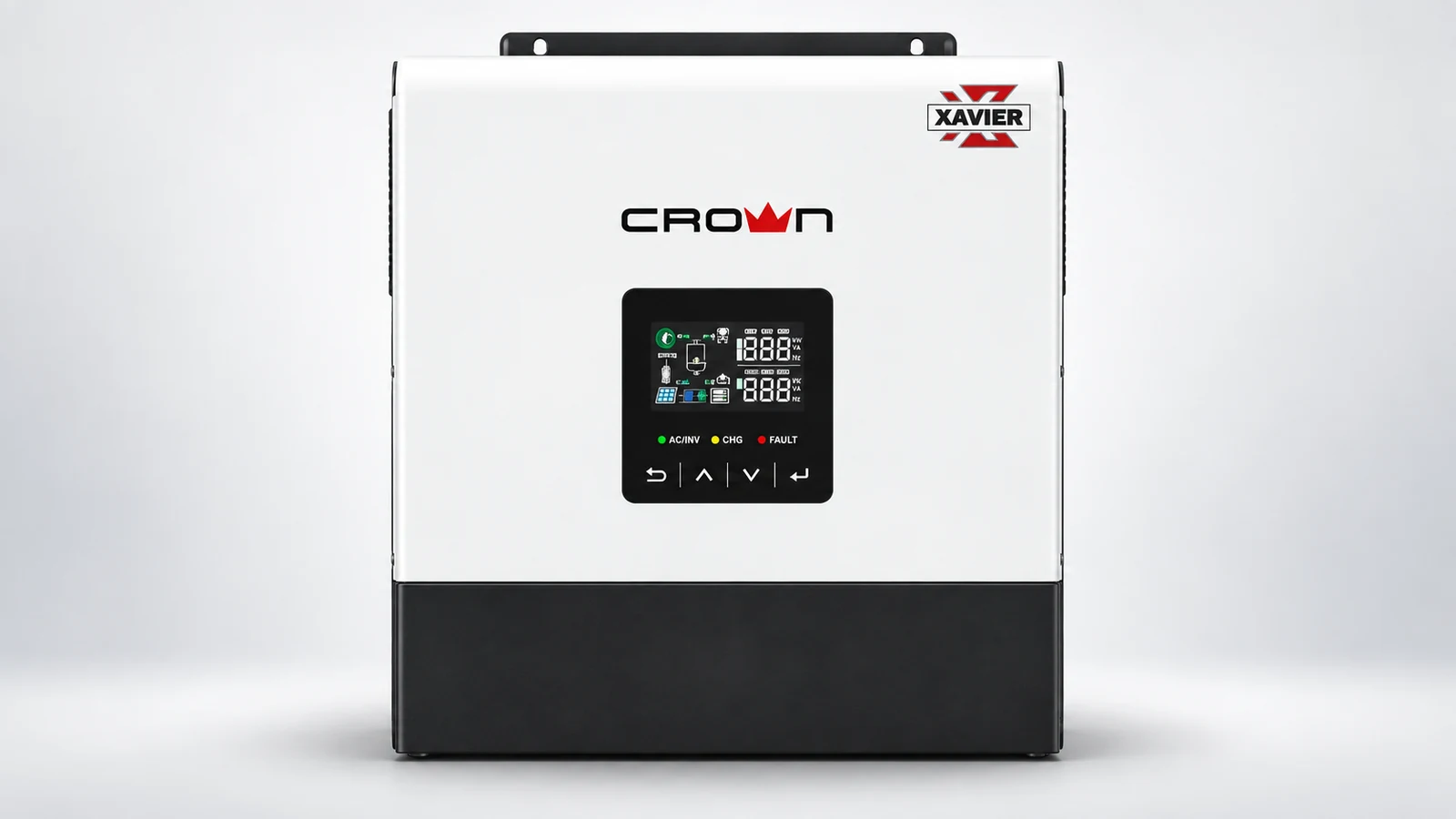

Crown Xavier 2.5kW Off-Grid Inverter Price in Pakistan

Note: 2500 W from PV and battery together, 1500 W from the battery alone, on a 12 V battery bank. Up to 3000 W of PV through a single MPP tracker over a 30 to 440 V window, 500 V ceiling, 65 V start, 18 A in and 20 A short-circuit. 120 A of combined PV and AC charging with 140 A of discharge, which is a lot of current for a 12 V system, so size the battery cabling for it. Dual outputs for load management, so non-critical circuits can be shed separately. Surge is 2x rated for 2 s and overload trips at 5 s above 150% or 10 s between 110 and 150%. Type III surge protection on both the DC and the AC side. Grid side takes up to 5000 W at power factor 0.99 with THDI under 3%; output THD is 3%. Efficiency is quoted per stage, 99.0% MPPT, 96.0% charging, 89.0% discharging, with no single PV-to-AC figure, so the efficiency field is left empty. IP21 and rated -10 to 45 degC with derating above 40 degC, which is a narrower ceiling than most of this range and worth checking against a Karachi summer. 5.4 kg, case 304.4 mm wide, 320 mm tall, 101 mm deep, LCD and LED with Wi-Fi. The warranty is contradictory on the sheet: the specification table says 1.5 years while the front page carries a 4-year badge, so it is not recorded here. Get it in writing. No price yet: w11stop.com does not list this model, read 26 September 2026.
