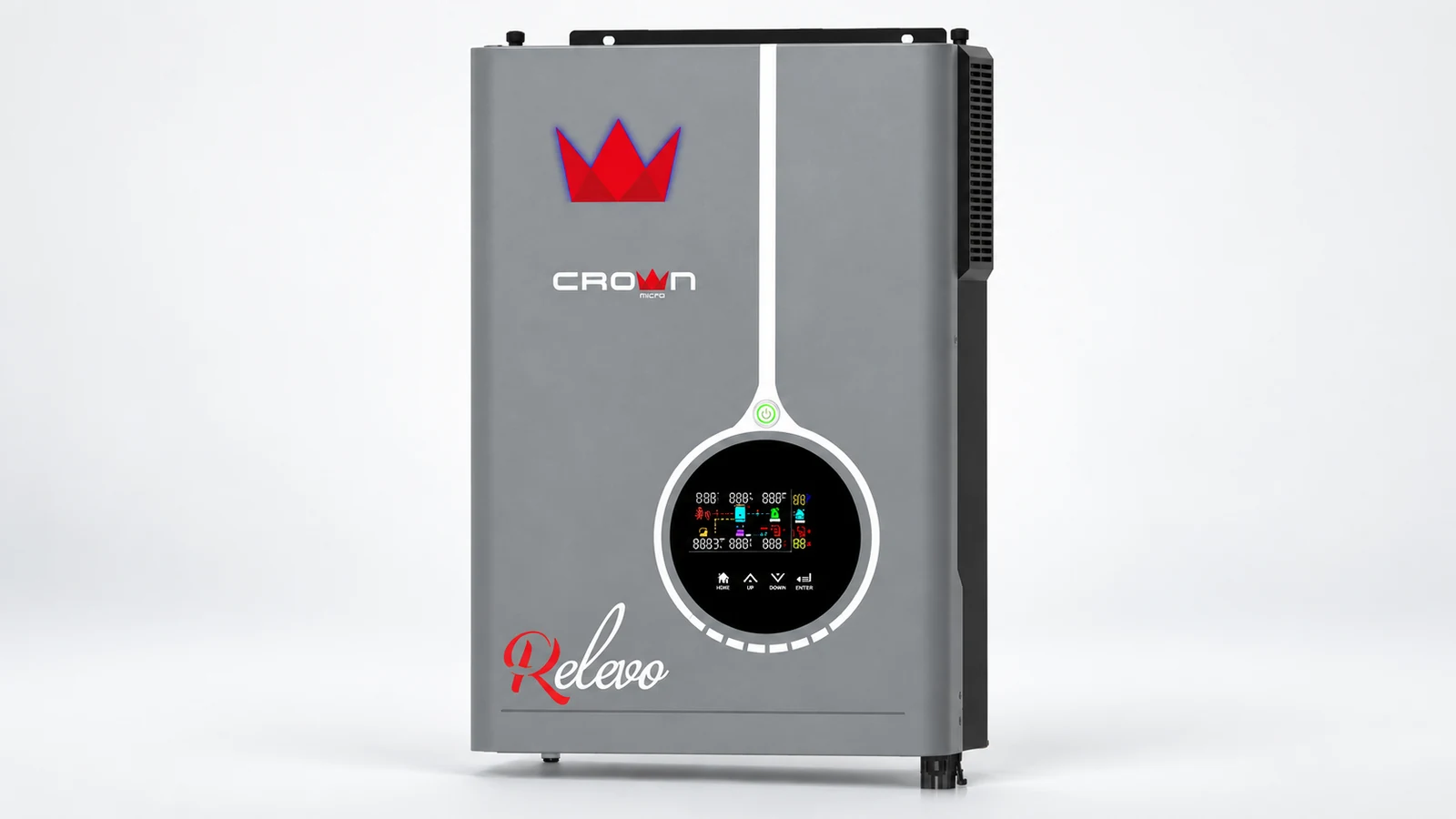

Crown Relevo 3.6kW Hybrid Inverter Price in Pakistan

Note: 3600 W on a 24 V battery bank from up to 6200 W of PV, which is an unusually generous array for a 3.6 kW inverter, over a 90 to 450 V MPPT window on a 500 V ceiling at a nominal 240 V. 120 A of combined AC and solar charging against 100 A from the utility alone, 3-step charging with separate flooded and AGM set points (29.2 V and 28.2 V bulk, 27 V float). Output 15.7 A. No-load draw 35 W, the lowest in the range. This one can be net-metered: Crown title the manual On/Off Grid Solar Inverter and it carries a Grid-Tie Operation block with a 195 to 253 VAC feed-in window at 49 to 51 Hz and power factor above 0.99. Pure sine wave at 230 V +/-5%, 50 Hz, peak inverter efficiency 93% and 97% maximum PV-to-AC conversion. Surge is 2x rated power for 5 seconds, overload trips at 3 s above 150% and 5 s between 101 and 150%. Transfer time 10 ms for computers or 20 ms for appliances, with a selectable input window of 170 to 280 V or 90 to 280 V and output derating below 170 V. CE marked, rated -10 to 50 degC, and the case is 300 mm wide, 444 mm tall and 100 mm deep. Against the 4.2kW next to it in the range: the same 6200 W array ceiling and the same 24 V battery, but 600 W less output and 120 A of charging instead of 140 A. It shares a grey case with the 4.2kW, where the 6.2kW is white. No price yet: w11stop.com lists a Crown Relevo 2500VA 1600W, which is a different and smaller model, and none of the 3.6kW, 4.2kW or 6.2kW, read 26 September 2026.
