Full specifications

Brand	Crown
Inverter Specifications

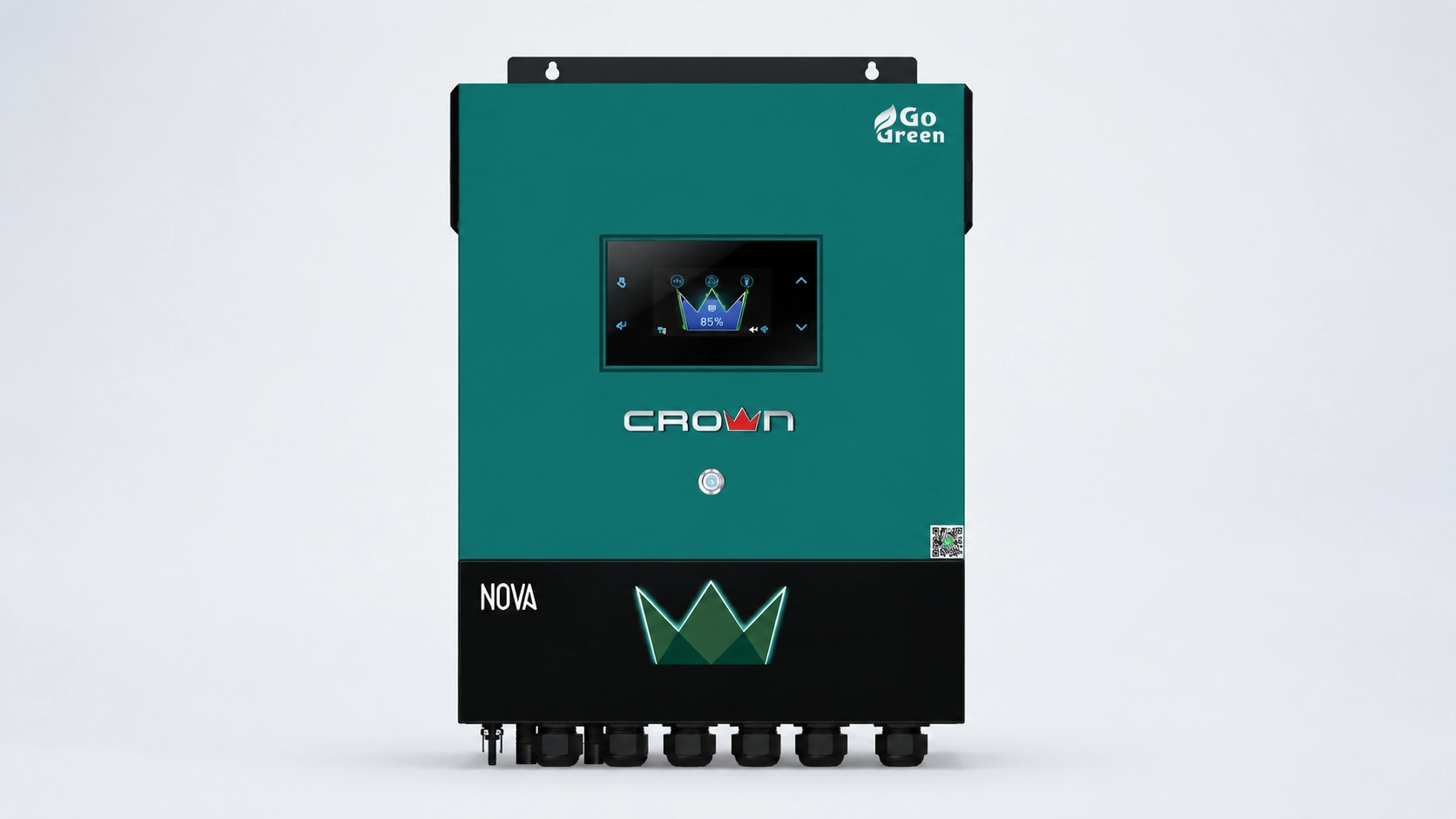

Model	NOVA-8.6KW
Inverter type	Hybrid
Grid type	Single Phase
PV Input Data
Max DC input power	14000 W
PV input voltage	500 V
MPPT voltage range	90-450 V
Max. PV input current	27 A
No. of MPPT	2
AC Output Data
Rated AC output	8600 W
Rated voltage	230 V
Smart load / generator input	Yes
Parallel operation	Yes
Battery Data
Battery type	Lithium & Lead-Acid
Battery voltage range	48 V
Max. charging current	150 A
Max. discharging current	150 A
BMS	USB / RS232 / RS485 / Wi-Fi / Dry-contact
General Specifications
Weight	19.7 kg
Operating temperature	-10°C ~ +50°C
Max. efficiency	93%
Size (W×H×D)	503.6 × 530.8 × 158.4 mm

Note: Battery-based hybrid with dual AC output and a separate generator port. Selectable input window of 170-280 VAC for computers or 90-280 VAC for household loads.
