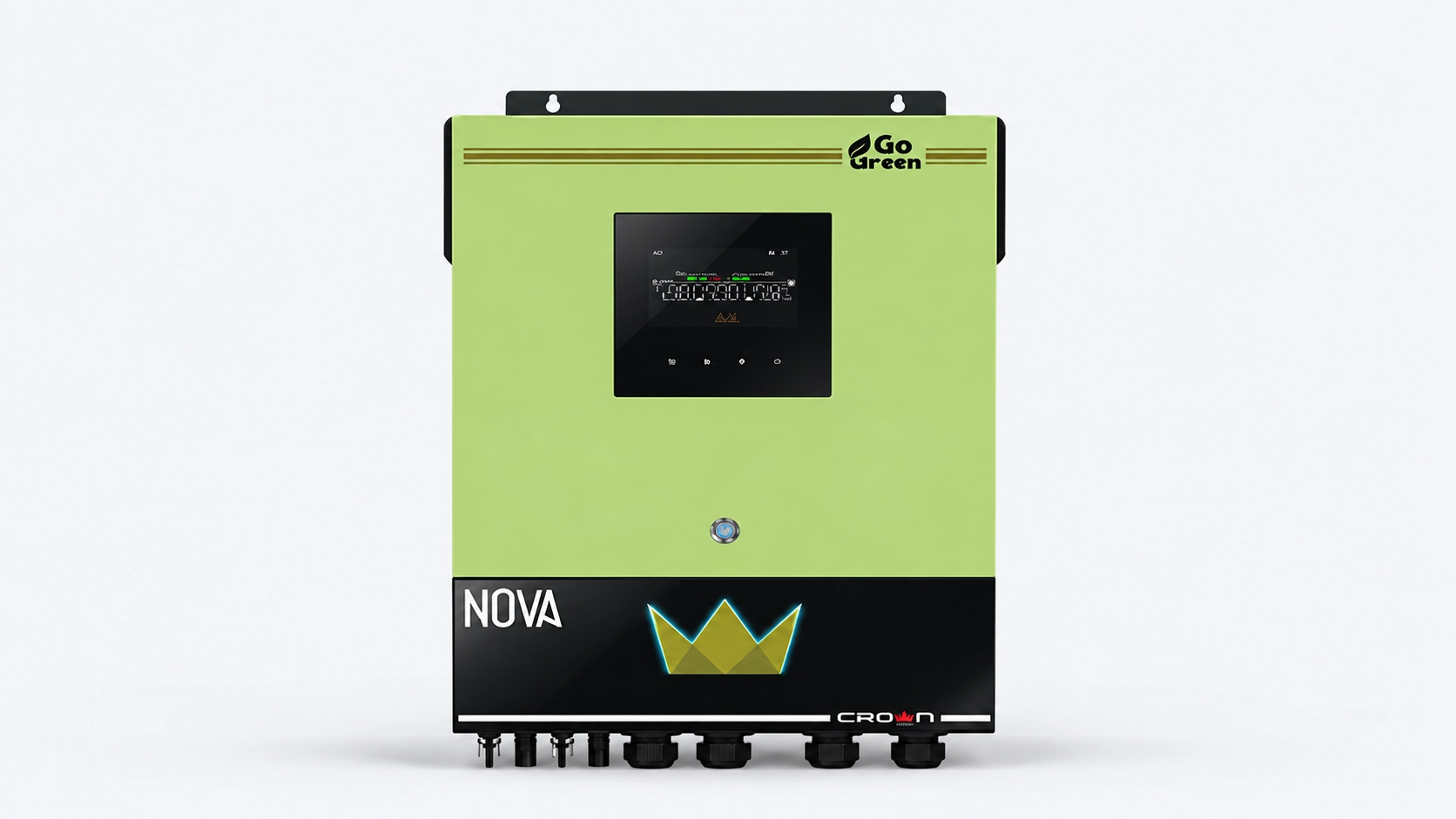

Crown Nova 8.2kW Hybrid Inverter
Full specifications
| Brand | Crown |
| Inverter Specifications | |
| Model | NV-8.2KW |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| Warranty | 4 Years |
| PV Input Data | |
| Max DC input power | 12000 W |
| PV input voltage | 500 V |
| MPPT voltage range | 90-450 V |
| Max. PV input current | 27 A |
| No. of MPPT | 2 |
| AC Output Data | |
| Rated AC output | 8200 W |
| Rated voltage | 230 V |
| Smart load / generator input | Yes |
| Parallel operation | Yes |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 48 V |
| Max. charging current | 150 A |
| Max. discharging current | 150 A |
| BMS | USB / RS232 / RS485 / Wi-Fi / Dry-contact |
| General Specifications | |
| Weight | 20 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 93% |
| Size (W×H×D) | 503.6 × 530.8 × 158.4 mm |
Note: Battery-based hybrid with dual AC output and a separate generator port. Selectable input window of 170-280 VAC for computers or 90-280 VAC for household loads.
