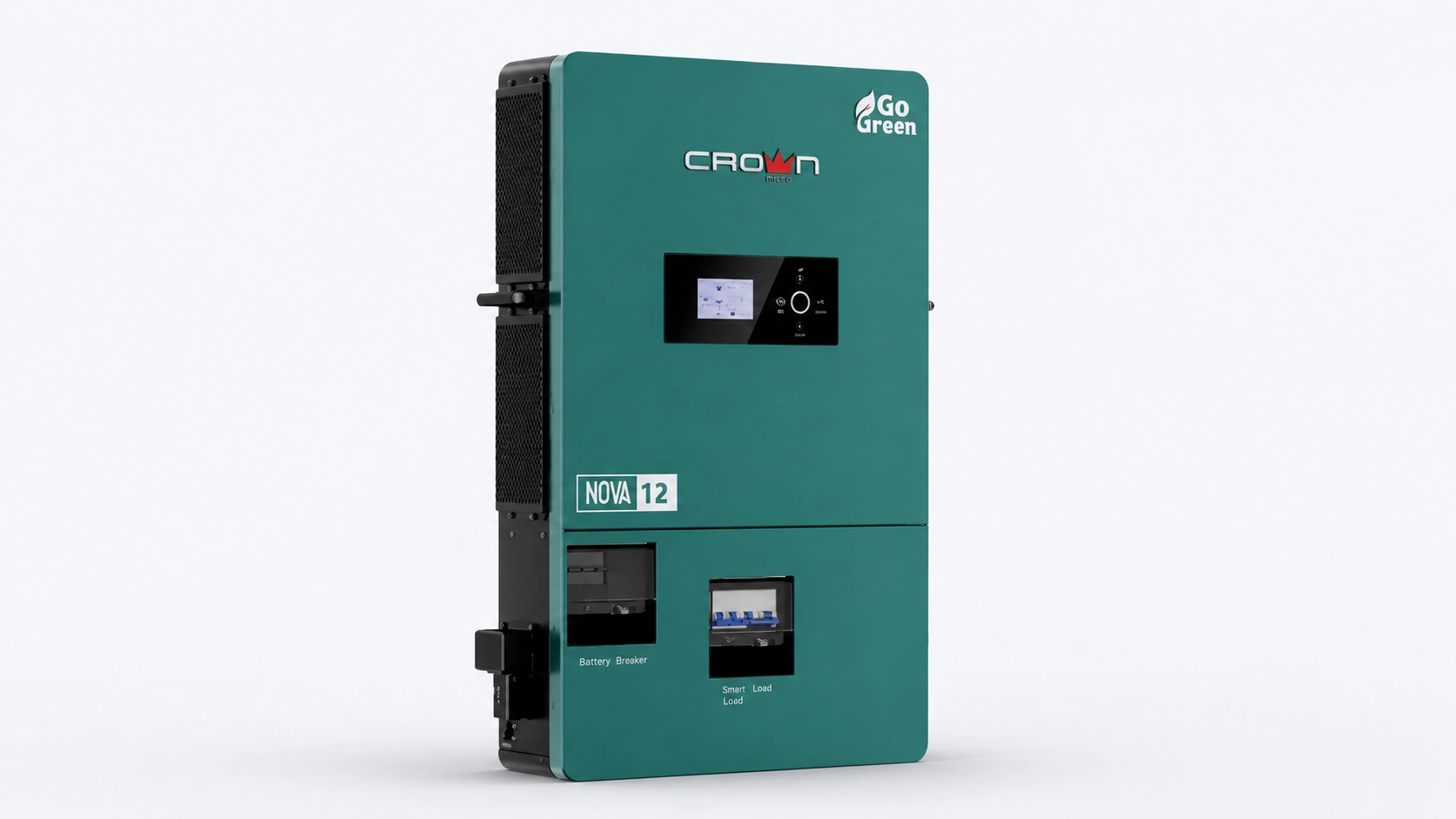

Crown Nova 12.6kW Hybrid Inverter
Full specifications
| Brand | Crown |
| Inverter Specifications | |
| Model | NOVA-12.6KW |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| Warranty | 6 Years |
| PV Input Data | |
| Max DC input power | 24000 W |
| PV input voltage | 480 V |
| MPPT voltage range | 120-440 V |
| Max. PV input current | 35 A |
| No. of MPPT | 2 |
| No. of strings per MPPT | 2 |
| Startup voltage | 100 V |
| AC Output Data | |
| Rated AC output | 12600 W |
| Rated AC output current | 50 A |
| Rated voltage | 230 V |
| Smart load / generator input | Yes |
| Parallel operation | Yes |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 46.4-60 V |
| Max. charging current | 250 A |
| Max. discharging current | 250 A |
| BMS | USB / RS232 / RS485 / Wi-Fi / Dry-contact |
| Protections | |
| PV reverse polarity detection | Yes |
| AC overcurrent protection | Yes |
| Output short circuit protection | Yes |
| Surge protection | Yes |
| Over voltage protection | Yes |
| General Specifications | |
| Weight | 40 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 93.5% |
| Size (W×H×D) | 530 × 830 × 150 mm |
Note: Battery-based hybrid with dual AC output and a separate generator port. Selectable input window of 170-280 VAC for computers or 90-280 VAC for household loads.
