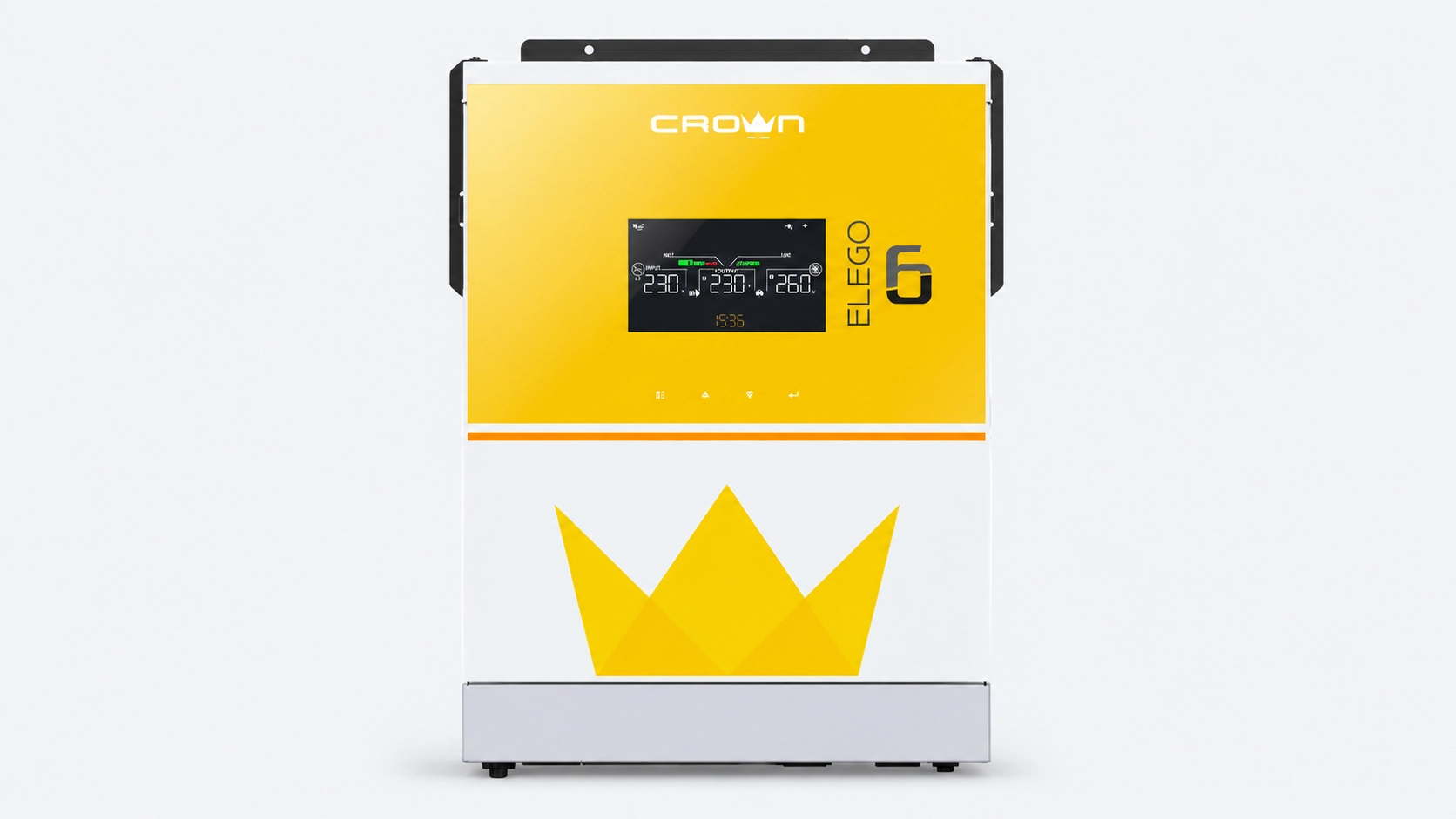

Crown Elego VI 6kW Hybrid Inverter
Full specifications
| Brand | Crown |
| Inverter Specifications | |
| Model | EOI-VI-6KW |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| Warranty | 4 Years |
| PV Input Data | |
| Max DC input power | 7000 W |
| PV input voltage | 500 V |
| MPPT voltage range | 120-430 V |
| Max. PV input current | 27 A |
| No. of MPPT | 1 |
| Startup voltage | 130 V |
| AC Output Data | |
| Rated AC output | 6000 W |
| Rated AC output current | 26 A |
| Rated voltage | 230 V |
| Parallel operation | Yes |
| Power factor | > 0.99 |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 48 V |
| Max. charging current | 120 A |
| Max. discharging current | 120 A |
| BMS | USB / RS-232 / Dry Contact |
| General Specifications | |
| Weight | 12 kg |
| Operating temperature | -10°C ~ +50°C |
| Max. efficiency | 95% |
| Size (W×H×D) | 295 × 468 × 120 mm |
Note: Single MPPT, so best suited to one unshaded roof plane. Parallels up to 9 units.
