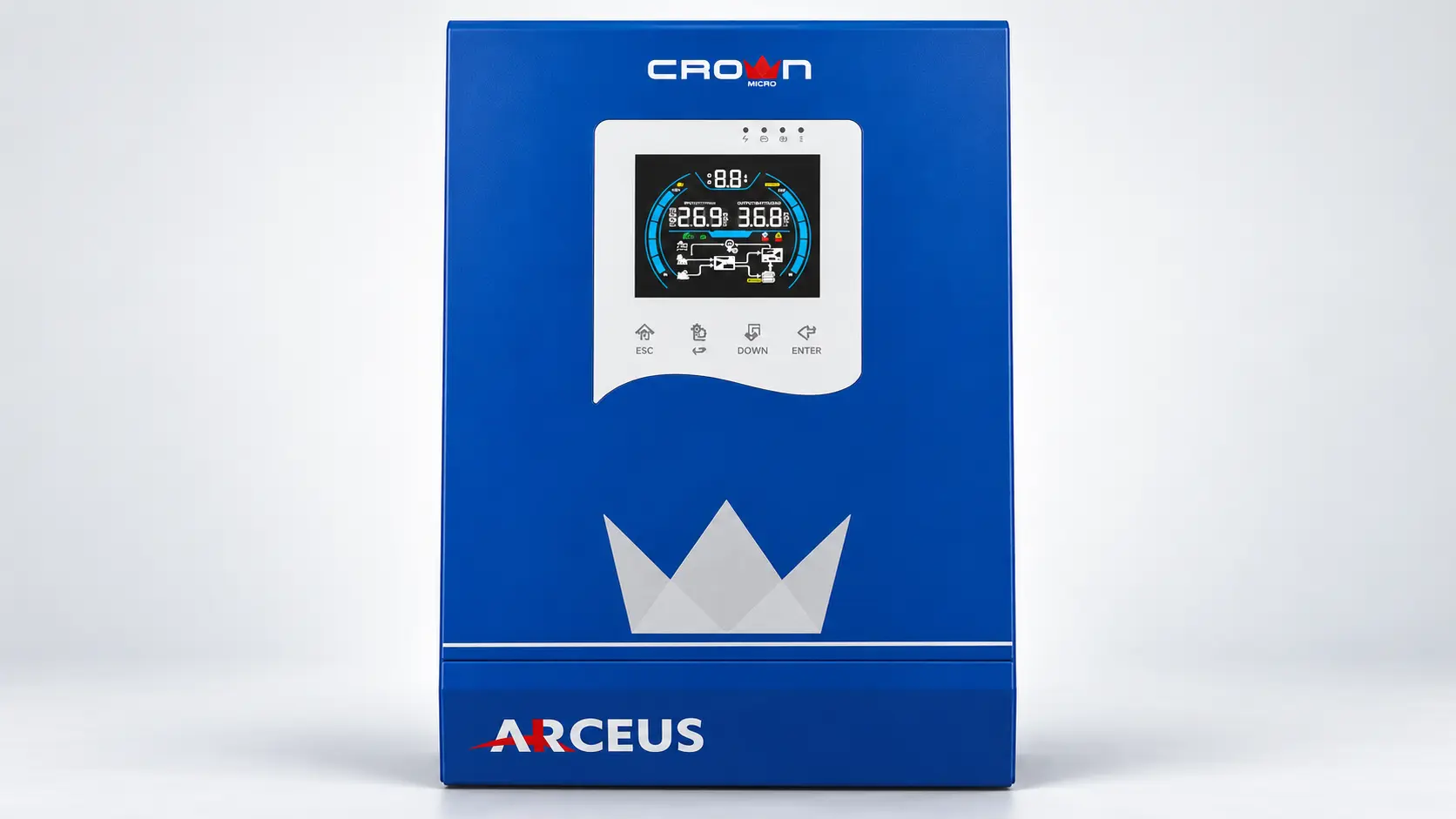

Crown Arceus 5kW Hybrid Inverter Price in Pakistan

Note: 5000 W on a 48 V battery bank from up to 6000 W of PV, over a 120 to 450 V MPPT window on a 500 V ceiling, with 80 A of charging from solar and 80 A from the grid sharing one 80 A ceiling. Surge is 10000 W, a full 2x rated power, which is what lets it start a deep well pump or a large compressor. Pure sine wave, 220 to 240 V +/-5%, transfer 10 ms, peak inverter efficiency 94% and 98% on the MPPT charger. Float 54.8 V with overcharge cut-off at 60 V. It parallels up to nine units, the widest in this catalogue, though Crown list that as an option rather than standard, so confirm the parallel kit is included. It also runs with no battery at all and has a second output for shedding non-critical circuits. Standby draw is only 2 W. A 5.5-inch colour LCD with a touch pad, USB and RS232 standard with RS485 optional. CE marked against EN 62109-1 and EN 62109-2 with the EN 61000 EMC set. 8.45 kg, case 310 mm wide, 470 mm tall and 120 mm deep. Two things to watch. First, the Feed to Grid row on the datasheet is left blank while every other capability row says Yes, so there is no documented grid export and this should not be planned into a net-metering application without written confirmation. Second, it is rated 0 to 40 degC, which is a narrow ceiling for Pakistan and the same limit Crown put on the Arceus 3.6kW and 6.5kW, so it wants a shaded, ventilated wall rather than a hot roof space. Price shown is the w11stop.com listing, Rs 140,000 (in stock), read 27 September 2026.
