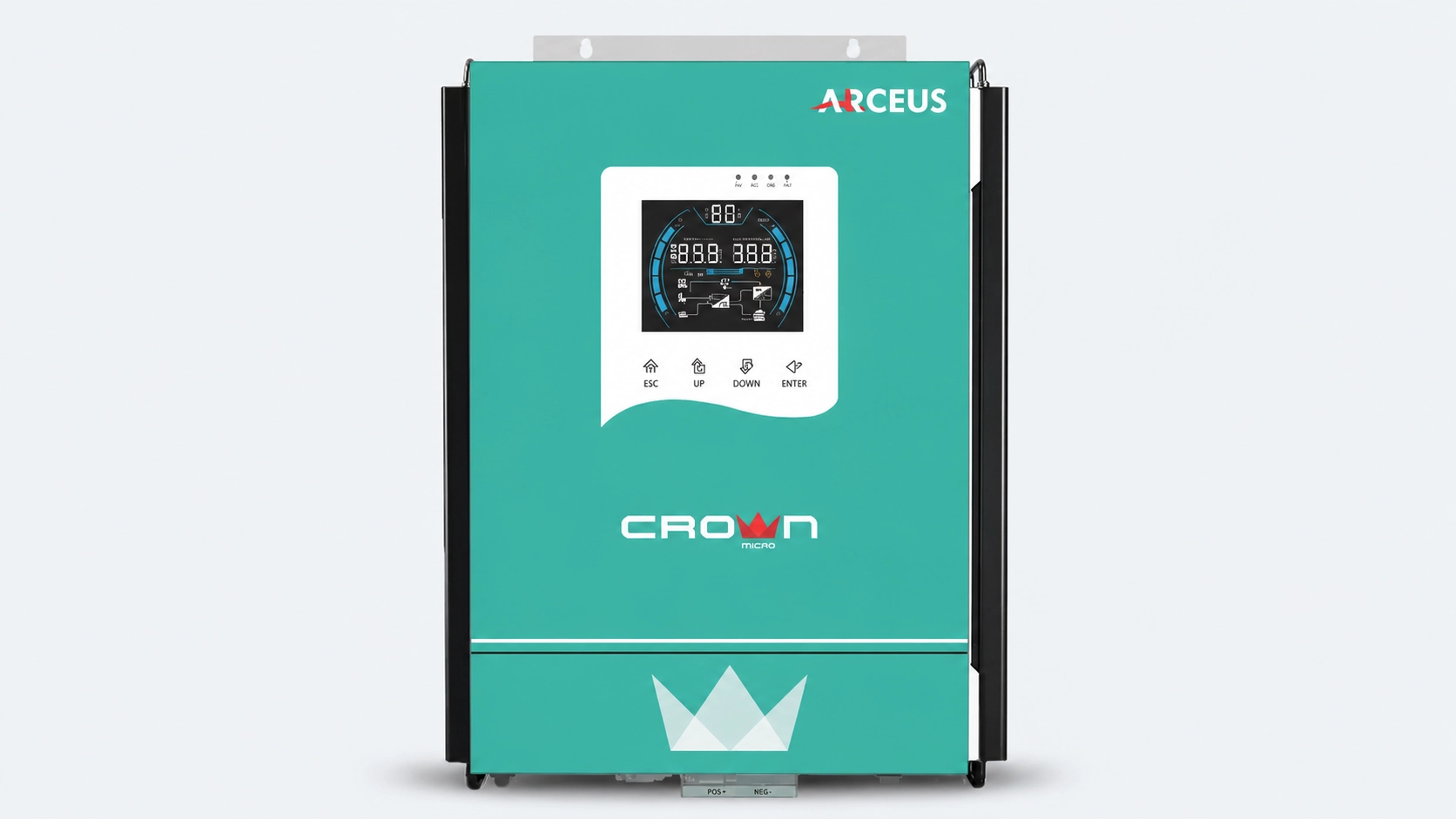

Crown Arceus 3.6kW Hybrid Inverter
Price on request
Full specifications
| Brand | Crown |
| Inverter Specifications | |
| Model | ARCEUS-3.6KW |
| Inverter type | Hybrid |
| Grid type | Single Phase |
| IP class | IP20 |
| PV Input Data | |
| Max DC input power | 5000 W |
| PV input voltage | 500 V |
| MPPT voltage range | 40-450 V |
| Max. PV input current | 18 A |
| AC Output Data | |
| Rated AC output | 3600 W |
| Rated voltage | 230 V |
| Power factor | 1.0 |
| Battery Data | |
| Battery type | Lithium & Lead-Acid |
| Battery voltage range | 24 V |
| Max. charging current | 100 A |
| Max. discharging current | 100 A |
| BMS | RS485 / CAN / USB / RS232 / Dry contact |
| General Specifications | |
| Weight | 7.8 kg |
| Operating temperature | 0°C ~ +40°C |
| Max. efficiency | 93.5% |
| Size (W×H×D) | 312 × 430 × 120 mm |
Note: IP20 rated and specified for 0-40°C, so this is an indoor unit only — it must not be wall-mounted outdoors, unlike Crown's IP66 Oyster models. Selectable input window of 90-280 VAC for appliances or 170-264 VAC in UPS mode, with a 10 ms transfer either way. Single-unit only — this model does not parallel. Wi-Fi monitoring is optional on this model.
