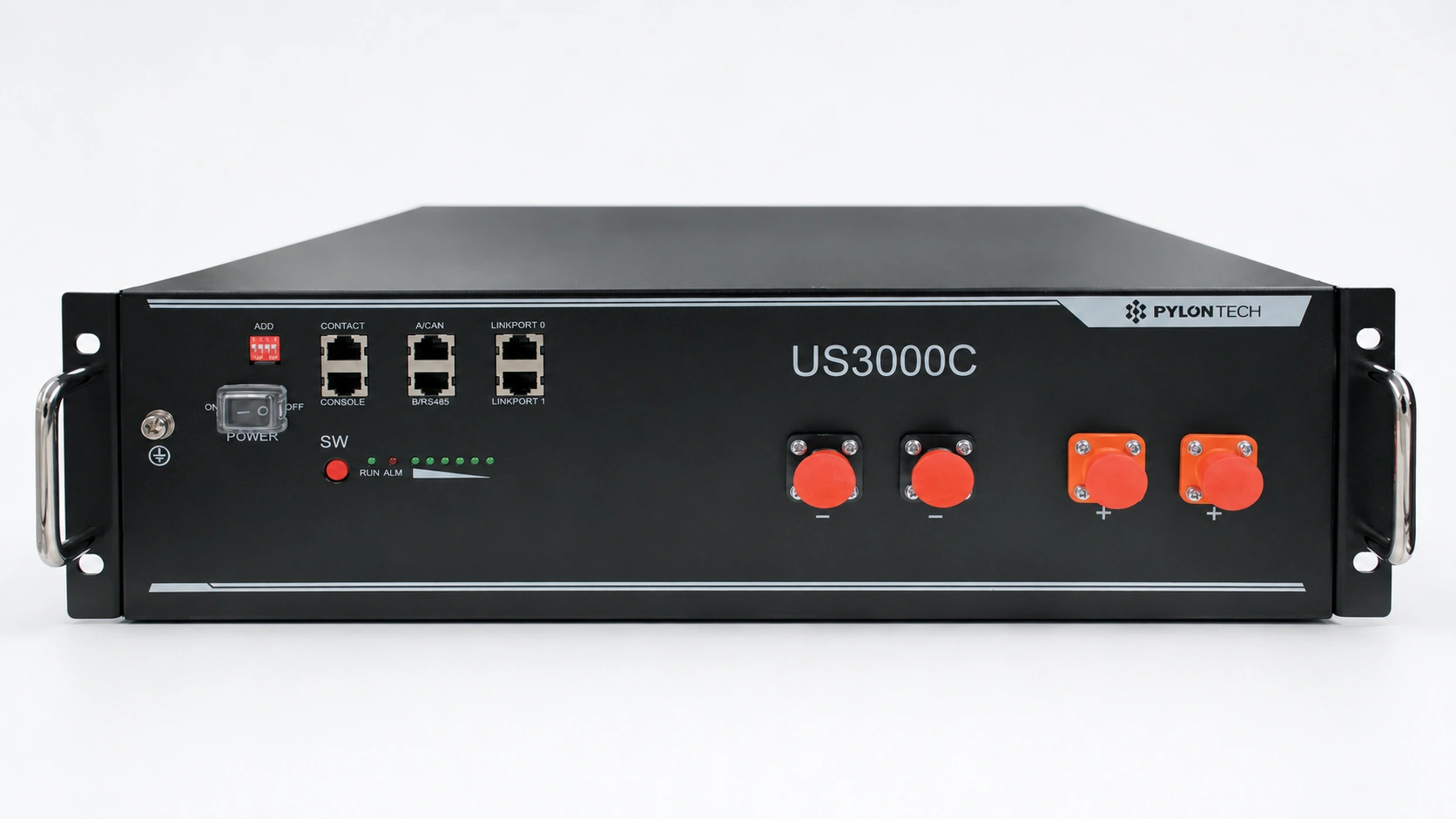

Pylontech 3.552kWh Lithium-ion Battery 48V (US3000C)
Rs 115,000
Rs 34,080 per usable kWh
Price updated: 13 September 2026
Full specifications
| Brand | Pylontech |
| Model | US3000C |
| Electrical Specifications | |
| Battery type | Lithium |
| Battery chemistry | LiFePO4 |
| Capacity | 74 Ah |
| Cycle life | 6000 |
| Usable capacity | 95% |
| Nominal energy | 3.552 kWh |
| Nominal voltage | 48 V |
| Operating voltage range | 45.0-53.5 V |
| Max. parallel batteries | 16 |
| Continuous charging current | 37 A |
| Continuous discharging current | 37 A |
| Depth of discharge | 95% |
| General Specifications | |
| Temperature range | Charge 0°C ~ +50°C / Discharge -10°C ~ +50°C |
| IP class | IP20 |
| Communication port | RS485 / CAN |
| Dimensions (W×H×D) | 442 × 420 × 132 mm |
| Weight | 32 kg |
| Mounting type | Rack |
Note: The workhorse of the range. Adds a built-in soft-start that limits inrush when an inverter starts from the battery, and supports wake-up over a 5-12 V signal on the RJ45 port and firmware upgrade over CAN or RS485. Operating window 45-53.5 V. Certified to GR-1089 for earthquake resistance. Note the 95% depth of discharge is only available to inverters that fully implement Pylontech's latest protocol - on an older protocol you will get less. Pylontech quote usable energy directly - 95% of nominal - and back it with over 6000 cycles at that same 95% depth of discharge at 25°C, which is an unusually deep test point and the reason these modules are a default choice for hybrid inverters. Design life 15+ years. Integrated BMS, RS485 and CAN, natural cooling, IP20 so indoors only. Sixteen modules to a string. Charge 0°C to +50°C, discharge -10°C to +50°C, storage -20°C to +60°C. Certified IEC 62619, IEC 63056, IEC 62040, UL1973, VDE2510-50 and UN38.3. Pakistani listings start around Rs 115,000.
