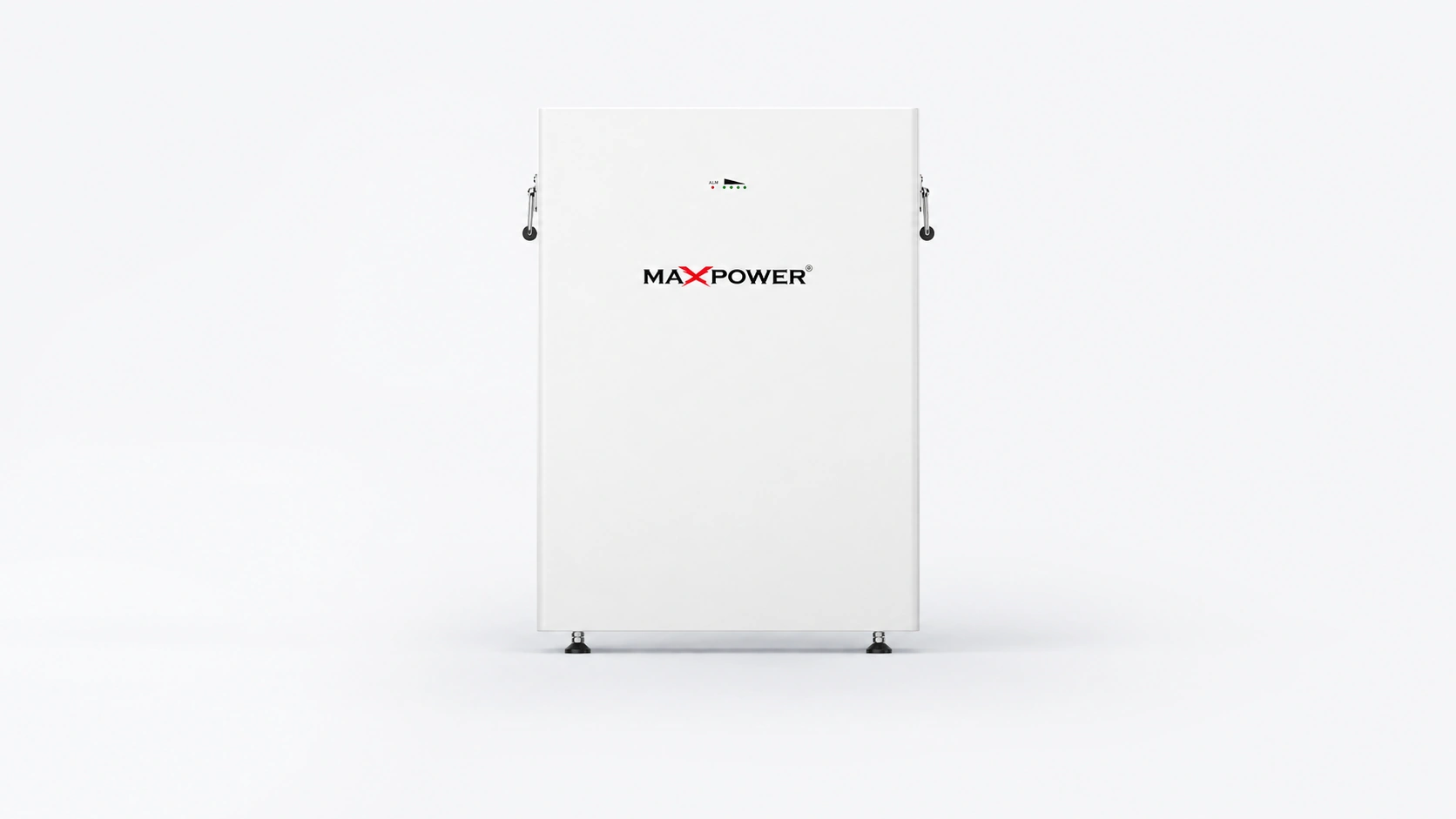

MaxPower 5.12kWh Lithium-ion Battery 51.2V (MP 5000-Alpha)
Full specifications
| Brand | MaxPower |
| Model | MP 5000-Alpha |
| Electrical Specifications | |
| Battery type | Lithium |
| Battery chemistry | LiFePO4 |
| Capacity | 100 Ah |
| Nominal energy | 5.12 kWh |
| Nominal voltage | 51.2 V |
| Max. parallel batteries | 15 |
| Continuous charging current | 50 A |
| Continuous discharging current | 100 A |
| Peak discharging current | 110 A (1 s) |
| General Specifications | |
| Temperature range | Charge 0°C ~ +55°C / Discharge -20°C ~ +55°C |
| IP class | IP20 |
| Communication port | CAN / RS485 |
| Dimensions (W×H×D) | 620 × 159 × 445 mm |
| Weight | 46.8 kg |
Note: 51.2 V at 100 Ah, giving 2.56 kW of charge power at 50 A and 5.12 kW of discharge at 100 A, with a 110 A peak for 1 second. Ships with cable and wall mount included. Parallels to 15. 46.8 kg. Note this is a 48 V battery at the same 5.12 kWh as the 24 V MP 5000-Pro - same energy, different system voltage, so check which your inverter needs. MaxPower publish no cycle life on this datasheet - the sheet has no cycle-count row at all. Only the two Ultra models in their range quote one, and they do it to a 60% end-of-life threshold rather than the 70-80% used by most brands here, so even those are not directly comparable. No depth of discharge is stated either, so no usable-energy figure is derived. Ask the dealer for a warranty document before sizing a system on lifetime cost. MaxPower publish a compatibility list covering Solis, Growatt, Sofar, SAJ, ATESS, Must, GoodWe, SMA, Deye, Megarevo, SRNE, Victron, LuxPower and Voltronic.
