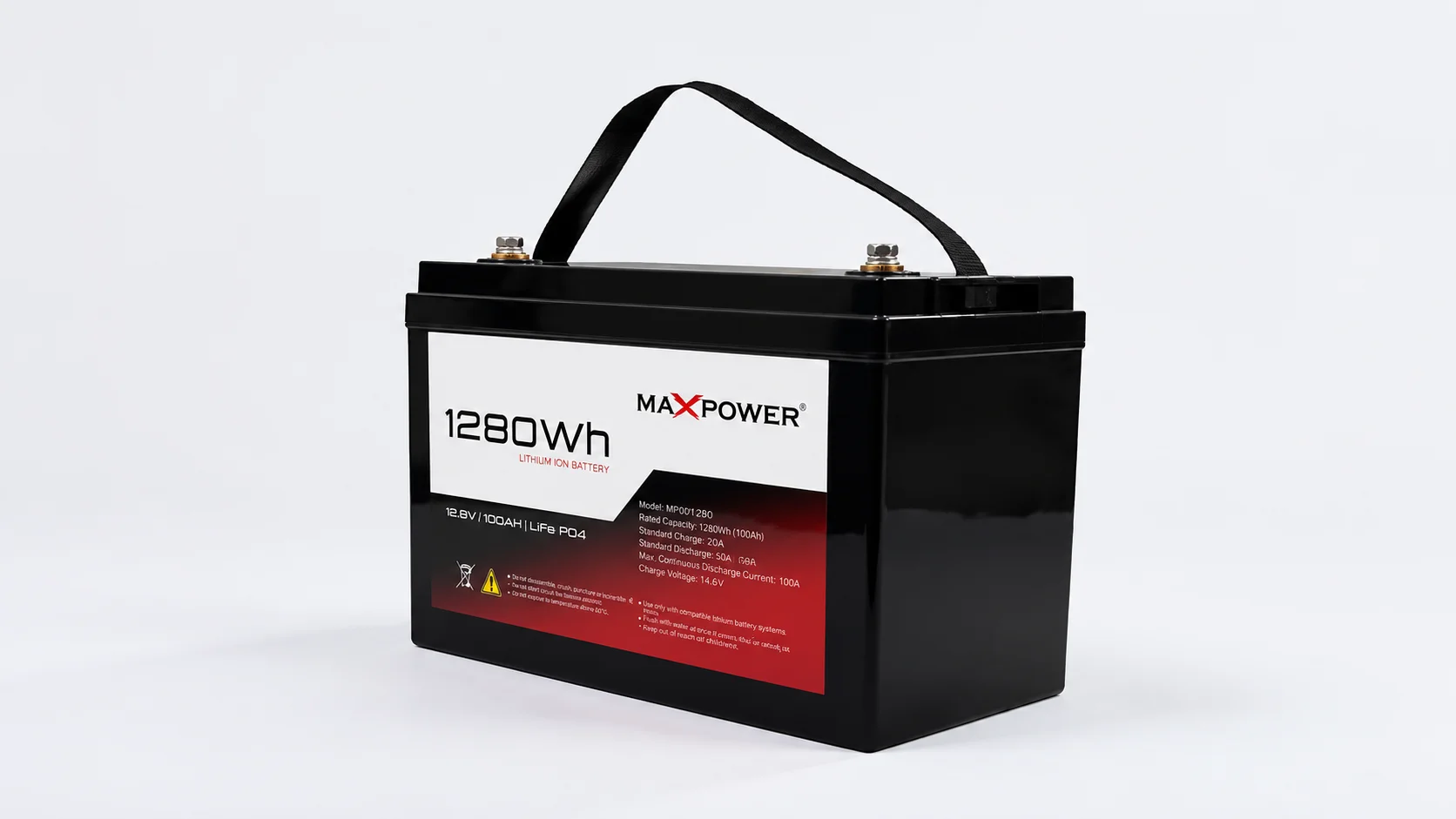

MaxPower 1.28kWh Lithium-ion Battery 12.8V (MP 1200-Pro)

MaxPower 1.28kWh Lithium-ion Battery 12.8V (MP 1200-Pro)

Full specifications

Brand
ModelMP 1200-Pro
Electrical Specifications
Battery typeLithium
Battery chemistryLiFePO4
Capacity100 Ah
Nominal energy1.28 kWh
Nominal voltage12.8 V
Operating voltage range10.8-14.6 V
Continuous charging current50 A
Continuous discharging current100 A
General Specifications
Temperature rangeCharge 0°C ~ +55°C / Discharge -30°C ~ +60°C
IP classIP20
Dimensions (W×H×D)330 × 215 × 172 mm
Weight10 kg
Mounting typeFloor
Note: The entry model in the Pro range and a straight replacement for a 12 V lead-acid battery. Bulk charge 14.6 V, float 13.8 V, cut-off 10.8 V. Standard working current 50 A with 100 A maximum - size continuous loads against the 50 A figure. 10 kg. Note this is the only MaxPower battery here with no communication port and no parallel rating published - the datasheet omits both, where every other model lists CAN and RS485. MaxPower publish no cycle life on this datasheet - the sheet has no cycle-count row at all. Only the two Ultra models in their range quote one, and they do it to a 60% end-of-life threshold rather than the 70-80% used by most brands here, so even those are not directly comparable. No depth of discharge is stated either, so no usable-energy figure is derived. Ask the dealer for a warranty document before sizing a system on lifetime cost. MaxPower publish a compatibility list covering Solis, Growatt, Sofar, SAJ, ATESS, Must, GoodWe, SMA, Deye, Megarevo, SRNE, Victron, LuxPower and Voltronic.
