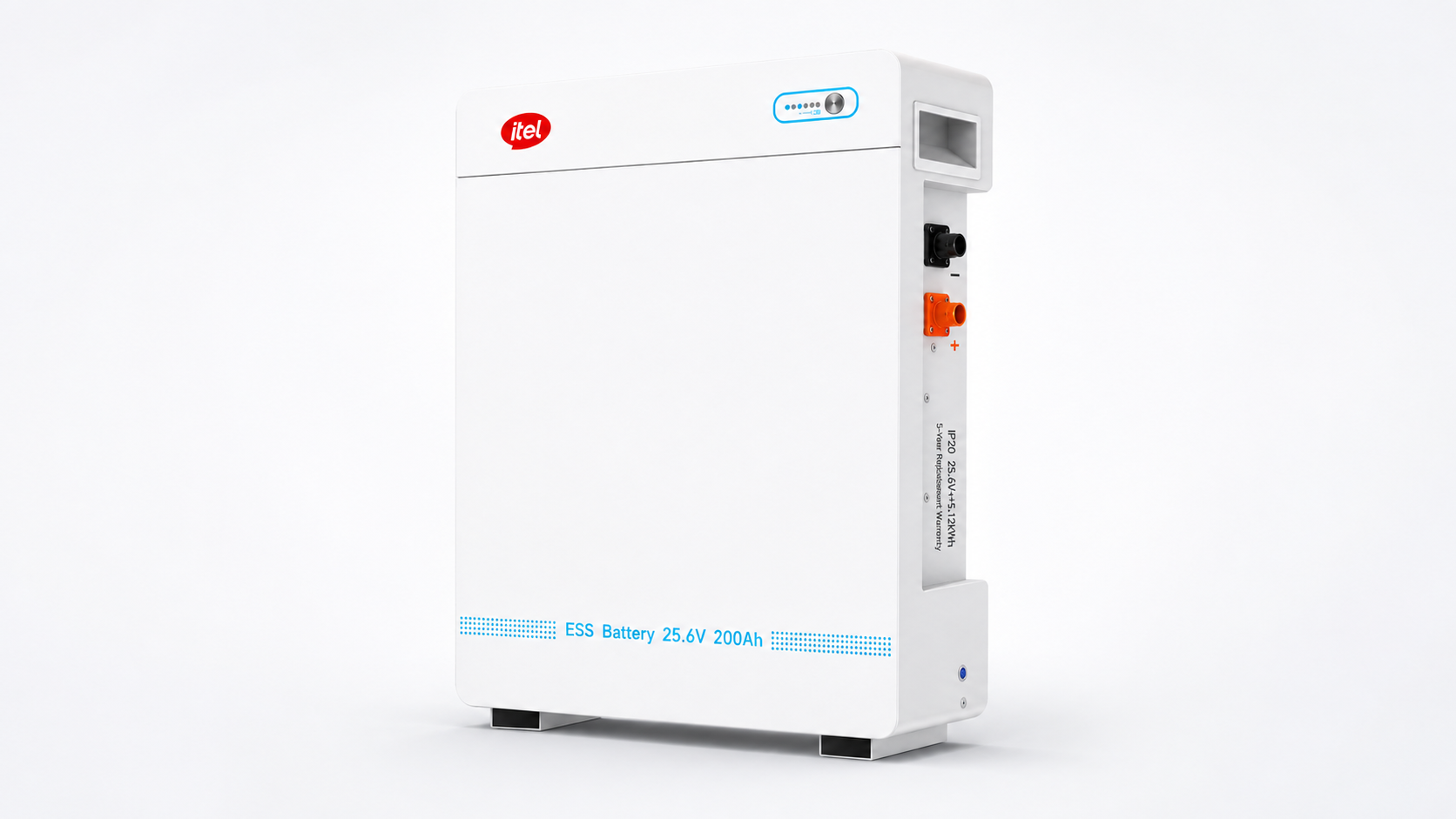

itel 5.12kWh Lithium-ion Battery 25.6V (IPL-25200X)
Rs 240,000
Rs 52,083 per usable kWh
Price updated: 23 August 2026
Full specifications
| Brand | iTel |
| Model | IPL-25200X |
| Electrical Specifications | |
| Battery type | Lithium |
| Battery chemistry | LiFePO4 |
| Capacity | 200 Ah |
| Cycle life | 6000 |
| Usable capacity | 90% |
| Nominal energy | 5.12 kWh |
| Nominal voltage | 25.6 V |
| Operating voltage range | 21.6-28.8 V |
| Max. parallel batteries | 32 |
| Continuous charging current | 200 A |
| Continuous discharging current | 200 A |
| Peak discharging current | 220 A (pulse) |
| Depth of discharge | 90% |
| General Specifications | |
| Temperature range | Charge 0°C ~ +55°C / Discharge -20°C ~ +60°C |
| IP class | IP20 |
| Communication port | RS485 / CAN / RS232 |
| Dimensions (W×H×D) | 490 × 618 × 240 mm |
| Weight | 48 kg |
| Mounting type | Floor |
Note: itel recommend a 90% depth of discharge, so the usable figure shown is the nameplate at 90%. Note their cycle-life test is run at 80% DoD, not 90% - the deeper you actually run it, the fewer cycles you get. The most powerful 24 V battery in this catalogue: 200 A continuous both ways against the 100 A of itel's own IPW-25100, with a 220 A pulse and a maximum discharge power of 10 kW for 10 seconds. That makes it a genuine option for a 24 V system running motor loads. Standard working current 100 A. Parallels to 32 units with automatic address assignment - no DIP switches, and the pack works out master and slave itself, which is a real saving on a multi-battery install. Design life 10 years, cycle life >6000 at 25°C, 0.5C, 80% DoD. itel describe the cell contact system as an integrated CCS design. Metal shell, 48 kg, IP20.
