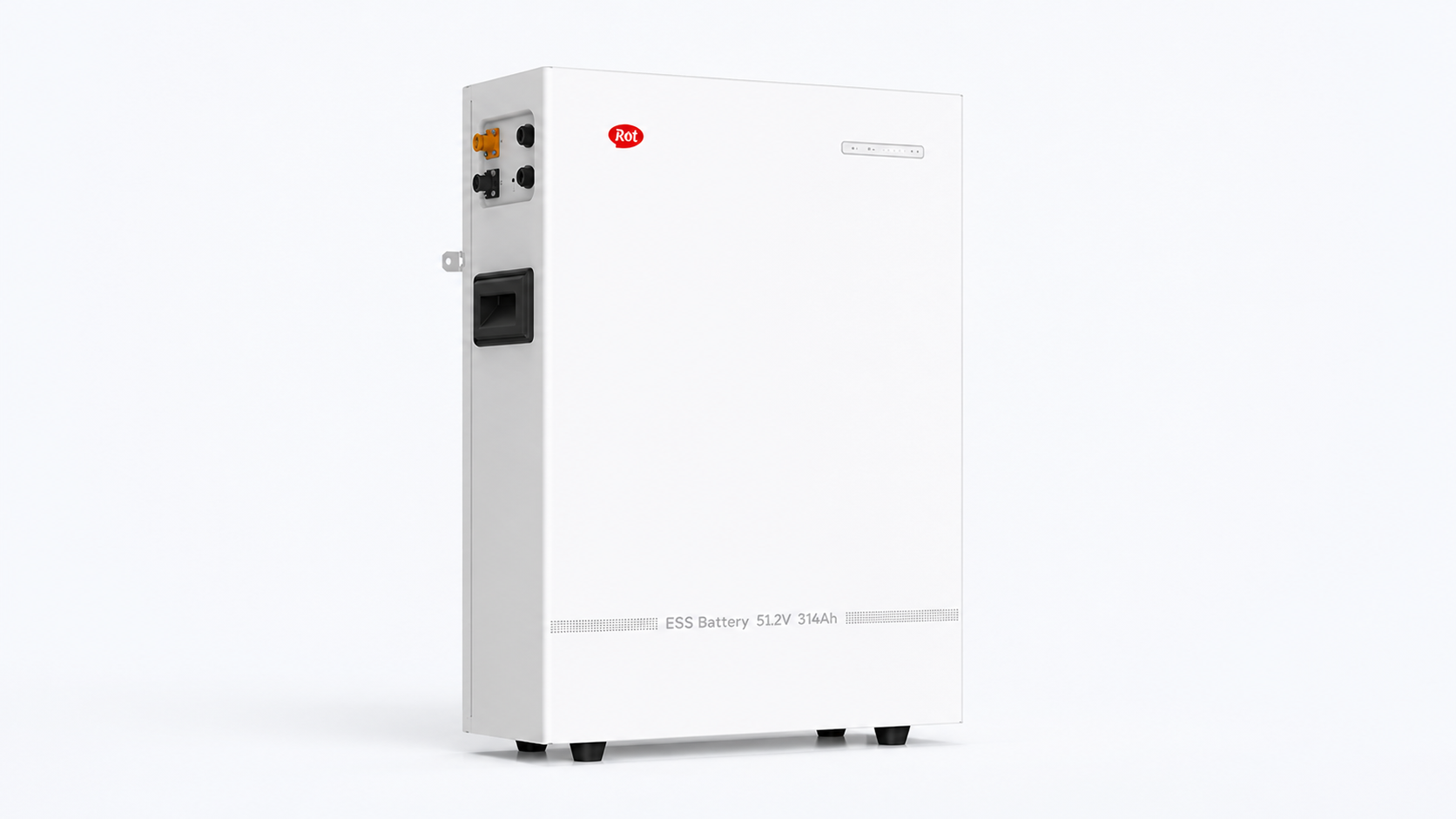

itel 16kWh Lithium-ion Battery 51.2V (IPL-51314Y)
Price on request
Full specifications
| Brand | iTel |
| Model | IPL-51314Y |
| Electrical Specifications | |
| Battery type | Lithium |
| Battery chemistry | LiFePO4 |
| Capacity | 314 Ah |
| Cycle life | 8000 |
| Usable capacity | 90% |
| Nominal energy | 16 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage range | 43.2-57.6 V |
| Max. parallel batteries | 32 |
| Continuous charging current | 195 A |
| Peak charging current | 200 A (3 s) |
| Continuous discharging current | 195 A |
| Peak discharging current | 200 A (10 s) |
| Depth of discharge | 90% |
| General Specifications | |
| Temperature range | Charge 0°C ~ +60°C / Discharge -20°C ~ +60°C |
| IP class | IP65 |
| Communication port | CAN2.0 / RS485 |
| Dimensions (W×H×D) | 548 × 840 × 230 mm |
| Weight | 120 kg |
| Mounting type | Floor |
Note: itel recommend a 90% depth of discharge, so the usable figure shown is the nameplate at 90%. Note their cycle-life test is run at 80% DoD, not 90% - the deeper you actually run it, the fewer cycles you get. The strongest battery itel make, and the one to buy of the three 16 kWh units. It shares the IPL-51314H's exact chassis, weight and 314 Ah cells but improves on it in three ways that matter: IP65 instead of IP20, so it can take a sheltered outdoor position; >8000 cycles instead of >6000, at the same 25°C, 0.5C, 80% DoD, 70% end-of-life test; and 195 A continuous instead of 157 A, with the peak held for 10 seconds rather than 3. Parallels to 32 units. 120 kg. No Pakistani retail price found yet - w11stop's 16 kWh listing specifies IP20, which rules this model out, so ask a dealer directly.
