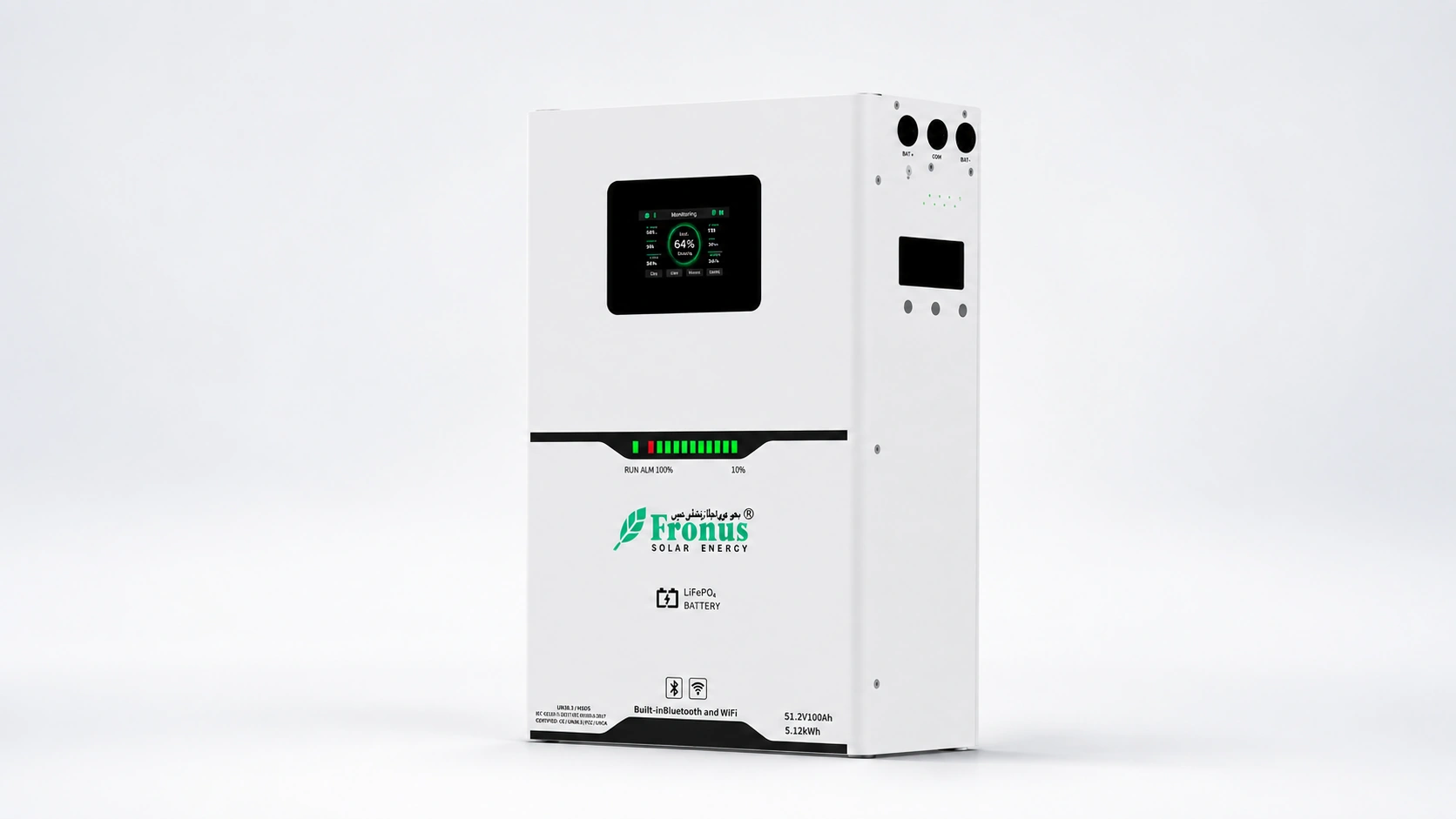

Fronus 5.12kWh Lithium-ion Battery 51.2V (Platinum 5.12kW)
Price on request
Full specifications
| Brand | Fronus |
| Model | Platinum 5.12kW |
| Electrical Specifications | |
| Battery type | Lithium |
| Battery chemistry | LiFePO4 |
| Capacity | 100 Ah |
| Cycle life | 6000 |
| Usable capacity | 80% |
| Nominal energy | 5.12 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage range | 43.2-58.4 V |
| Max. parallel batteries | 15 |
| Continuous charging current | 100 A |
| Continuous discharging current | 100 A |
| Depth of discharge | 80% |
| General Specifications | |
| Temperature range | -20°C ~ +60°C (storage; recommended -10°C ~ +35°C) |
| Dimensions (W×H×D) | 607.7 × 162.3 × 362.5 mm |
| Weight | 43 kg |
| Mounting type | Floor |
Note: Cycle life is 6000 at 0.5C, 25°C and 80% depth of discharge - the same depth the usable figure here is derived from, so the two are consistent. Round-trip efficiency is quoted at >98%, the highest of any Fronus battery. Wi-Fi and Bluetooth app monitoring is an option rather than standard. Parallels to 15 units. Certified UN38.3, MSDS, CE and IEC, with a 5-year warranty. Recommended charge current is 70 A against a 100 A maximum both ways - size continuous loads against the recommended figure. Recommended charge voltage 57.6 V, and the pack is happiest between -10°C and +35°C even though it tolerates -20°C to 60°C. Note Fronus publish no IP rating for the Platinum range, where the Titan line is IP21 and the TP-LD line IP40 or IP65.
