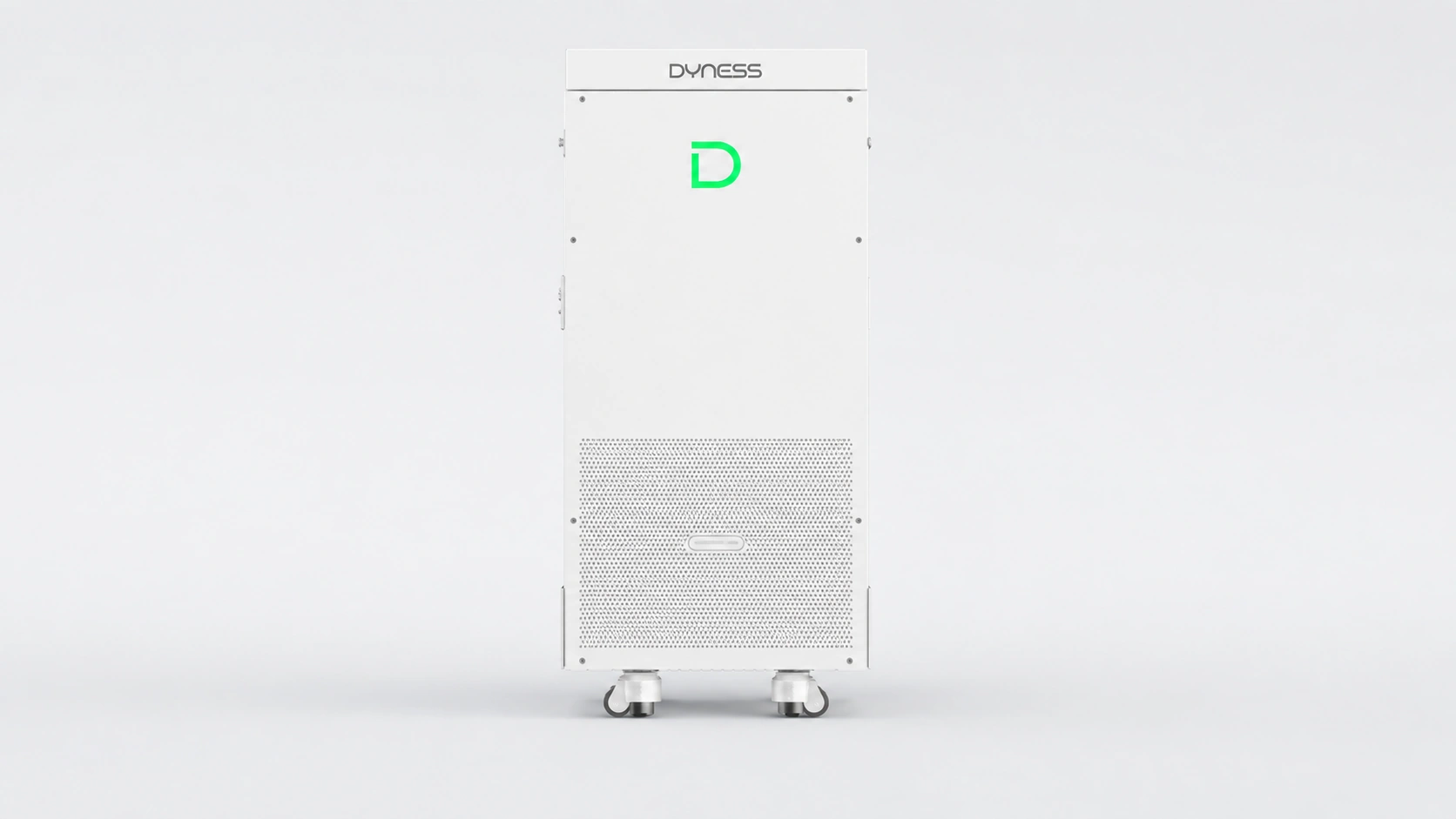

Dyness-PowerBrick-Max Battery

Dyness 16.08kWh Lithium-ion Battery 51.2V (PowerBrick-Max)

Rs 685,000 – Rs 700,000
Rs 44,842 per usable kWh
Price updated: 23 August 2026

Full specifications

Brand
ModelPowerBrick-Max
Electrical Specifications
Battery typeLithium
Battery chemistryLiFePO4
Capacity314 Ah
Cycle life8000
Usable capacity95%
Nominal energy16.08 kWh
Nominal voltage51.2 V
Operating voltage range44.8-57.6 V
Max. parallel batteries50
Continuous charging current200 A
Continuous discharging current200 A
Peak discharging current300 A (2 min)
Depth of discharge95%
General Specifications
Temperature rangeCharge 0°C ~ +55°C (-20°C optional) / Discharge -20°C ~ +55°C
IP classIP20
Communication portCAN / RS485 / WiFi + App
Dimensions (W×H×D)435 × 857 × 233 mm
Weight116 kg
Note: Cycle life is quoted with its test conditions - 0.2C, 25°C, 95% DoD, 70% end-of-life - which is what makes the number comparable. Usable energy is printed directly at 15.28 kWh against a 16.08 kWh nameplate. 314 Ah at 51.2 V, with 200 A continuous both ways for 10.24 kW of charge or discharge and a 300 A peak held for two minutes - recommended continuous is 7.168 kW at 0.45C. Built-in aerosol fire extinguisher and WiFi with app are standard. 10-year warranty. Floor or wall mounted, with optional regulating wheels and a top cover. At 116 kg this needs two people and a solid floor. Dyness rate it IP20 - indoor only - on both the 2025 and 2026 editions of the datasheet, although several Pakistani retailers advertise it as IP65. The datasheet is the authority. Dyness sell three near-identical 16.08 kWh PowerBricks - Max, SC and Plus. On the printed specifications the Max and SC are identical in every respect; the Plus is the one that differs, at IP65 instead of IP20. If the battery is going anywhere it might get wet, that is the only one of the three to consider.
