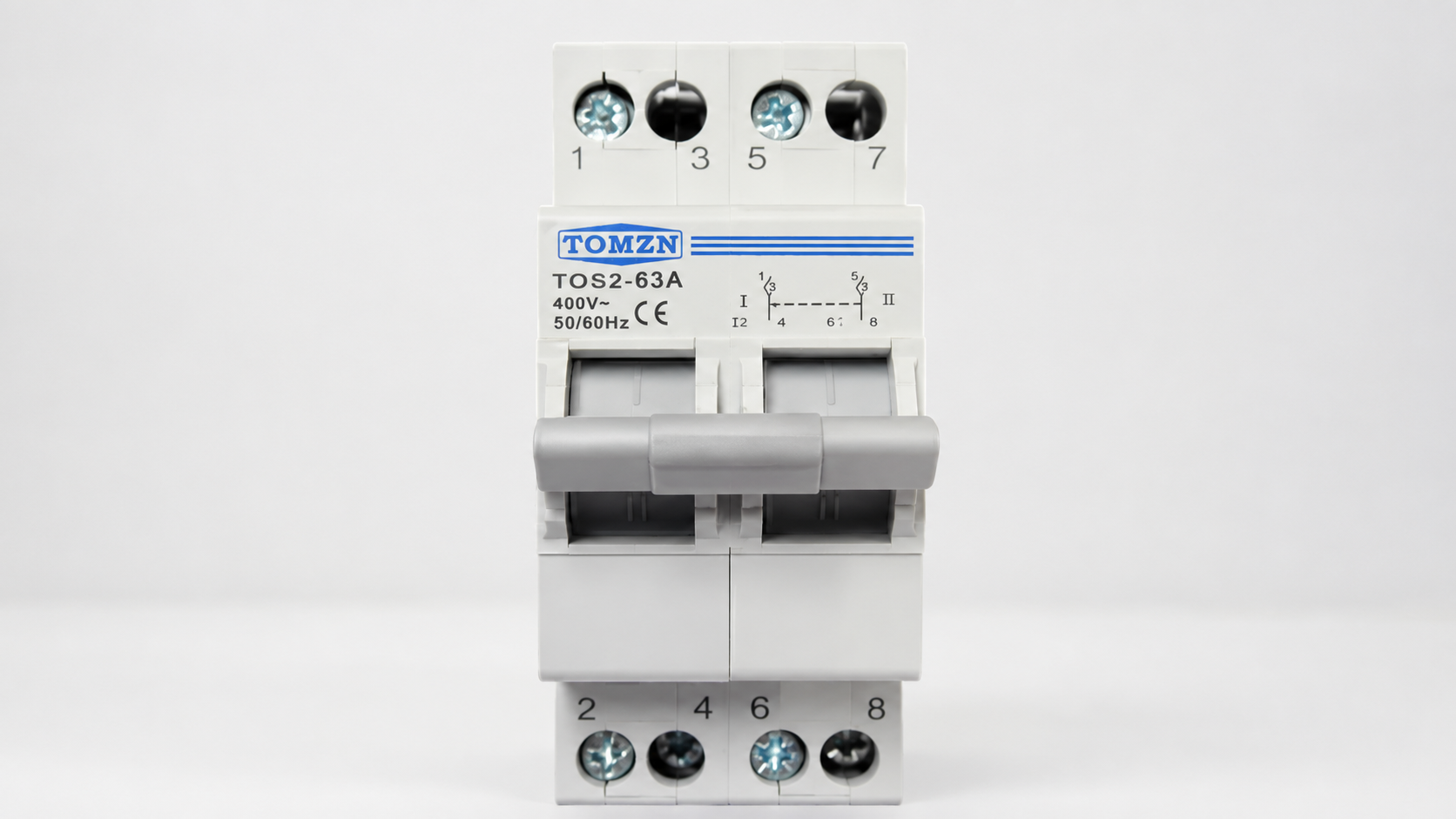

TOMZN 63A 2P Changeover Switch
Price on request
This TOMZN changeover switch allows two incoming power sources to be connected to one load without joining the sources together. It is commonly used to select between utility power and a backup source such as a solar inverter or generator. The linked two-pole mechanism switches both live and neutral together for simple manual source control.
Full specifications
| Brand | Tomzn |
| General Specifications | |
| Poles | 2P |
| Supply type | AC |
| Rating / size | 63 A |
| Voltage rating | 230/400 V |
| Standard / certification | IEC 60947-3 |
| Additional Specifications | |
| Type | Manual |
| Positions | 1-0-2 |
| Construction Type | Rotary |
