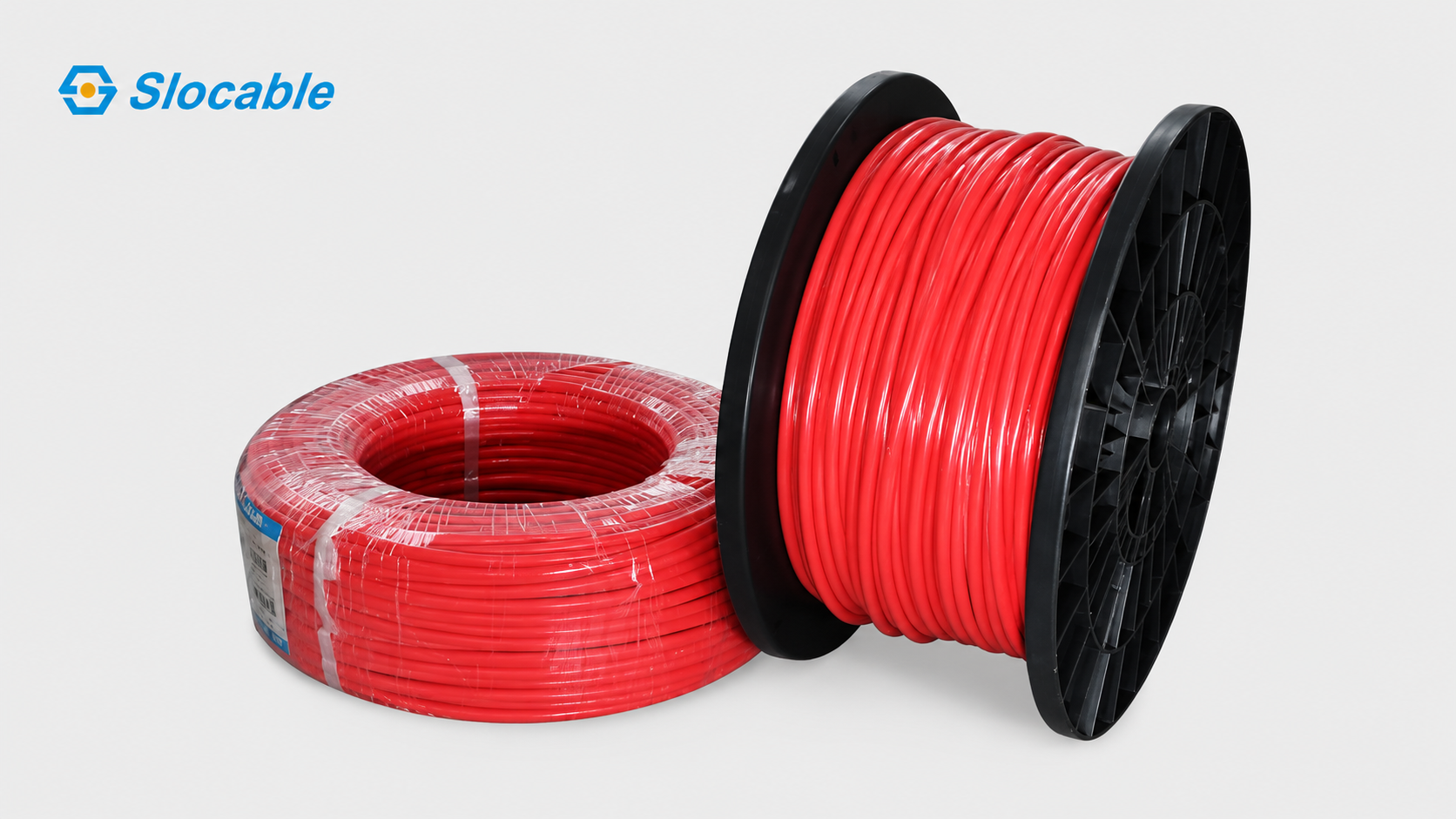

Slocable Solar DC Cable 4mm²
Price on request
Slocable solar cable is made specifically for the DC side of photovoltaic systems. Its red outer covering is normally used to identify the positive cable, while the solar-rated insulation is designed to handle outdoor exposure, heat, and sunlight better than ordinary household wire. It is commonly used between solar panels, combiner boxes, isolators, and inverters.
Full specifications
| Brand | Slocable |
| General Specifications | |
| Supply type | DC |
| Rating / size | 4 mm² |
| Voltage rating | 1500 V DC |
| Standard / certification | EN 50618 |
| Material | Tinned copper conductor, XLPO insulated |
| Additional Specifications | |
| Cores | 1 |
| Current Capacity | 55 A |
| Voltage Drop | 10 mV/A/m |
| Max Temperature | 90 °C |
Note: Voltage drop should not exceed 2% of the nominal supply voltage under normal operating conditions.
