itel-IPV-6K48U-Pro-6kW-Inverter

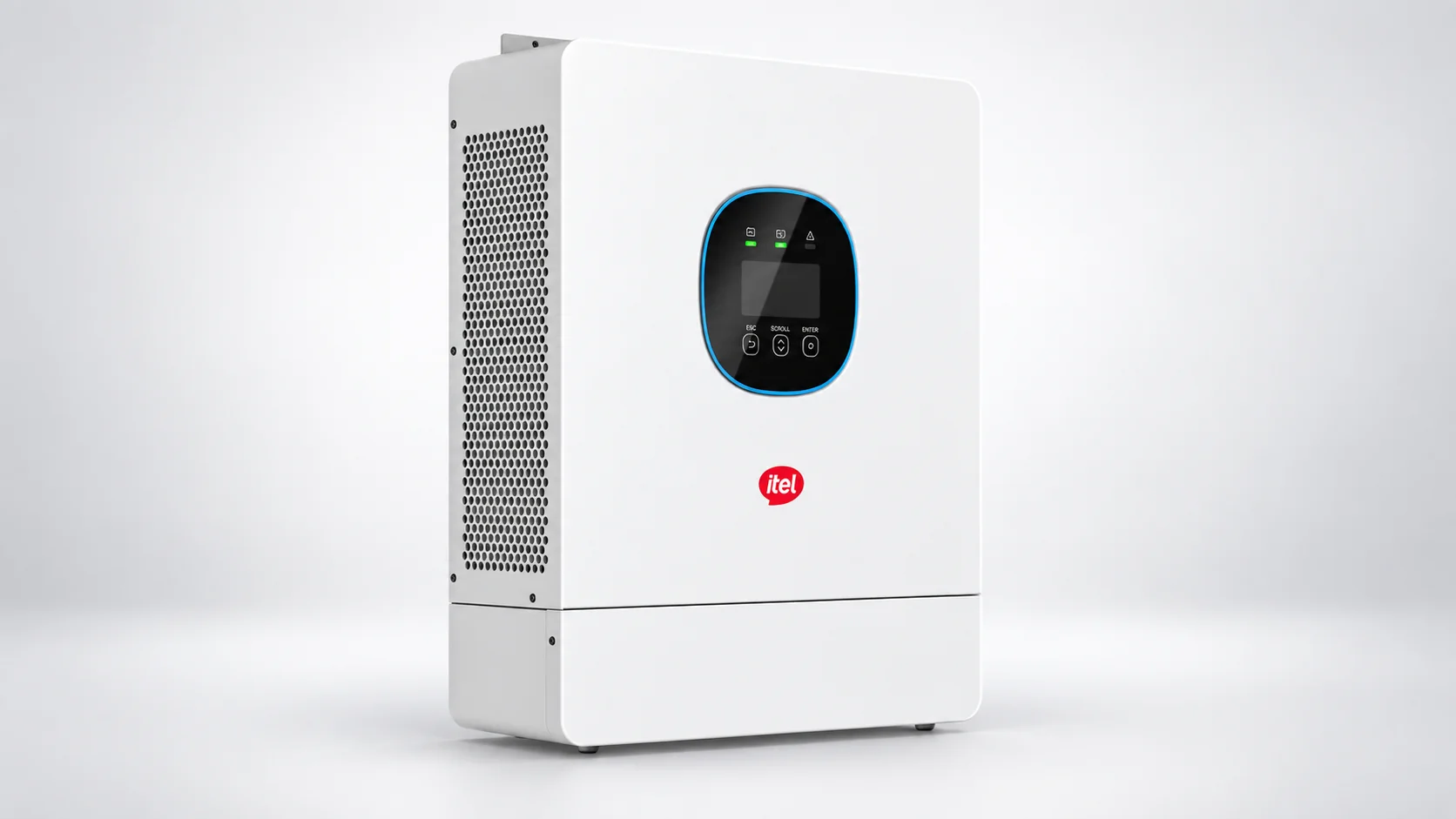

itel IPV-6K48U Pro 6kW Off-Grid Inverter

Rs 141,000 – Rs 141,999
Rs 23,500 per kW
Price updated: 21 September 2026

Full specifications

Brand
Inverter Specifications
ModelIPV-6K48U-PRO
Inverter typeOff-Grid
Grid typeSingle Phase
IP classIP54
Warranty3 Years
PV Input Data
Max DC input power8000 W
PV input voltage500 V
MPPT voltage range85-450 V
Max. PV input current27 A
No. of MPPT1
Startup voltage80 V
AC Output Data
Rated AC output6000 W
Rated voltage230 V
Smart load / generator inputYes
Parallel operationYes
Battery Data
Battery typeLithium & Lead-Acid
Battery voltage range40-60 V
Max. charging current120 A
Max. discharging current130 A
BMSWiFi / RS485 / RS232 / Dry-contact
Protections
AC overcurrent protectionYes
Output short circuit protectionYes
Surge protectionYes
Over voltage protectionYes
General Specifications
Weight13 kg
Operating temperature-10°C ~ +55°C
Size (W×H×D)347 × 445 × 120 mm
Note: No grid export and no net metering: the datasheet has no grid-output or feed-in section, and certification stops at IEC 62109 and IEC 61683 without the IEC 62116 anti-islanding and IEC 61727 grid-connection standards a net-metered unit needs. itel and most dealers sell it as a hybrid, and it will run your load and charge from the grid or a generator, but it cannot export. The datasheet publishes MPPT tracking efficiency and battery-mode conversion efficiency but no PV-to-AC conversion figure, so the efficiency field is left empty rather than filled with a number that measures something else. 6000 W and 6000 VA on a 48 V bank from up to 8000 W of PV on one MPPT, with an 85 to 450 V window on a 500 V ceiling, 27 A input current and an 80 V start. 120 A from solar and from mains or generator, 130 A discharge. Surge 12000 W for 5 seconds. Overload is staged at 105 to 150% for 10 seconds and 150 to 200% for 5 seconds, and it switches in 10 ms in UPS mode or 20 ms for appliances. Dual output with smart load support, a diesel generator input, and WiFi, RS485, RS232 and dry contact communication. IP54, fan-cooled at under 60 dB, rated -10 to +55 °C with derating above 45 °C, up to 4000 m. 3-year replacement plus a 5-year service warranty, so the warranty field shows 3. Parallels to 12 units. 13 kg in the same 347 × 445 × 120 mm case as the 4 kW Pro. Street price in Pakistan Rs 141,000 to Rs 141,999 (w11stop.com Rs 141,000; Shahrukh Solar House Rs 141,999, in stock), read 21 September 2026.
