Full specifications

Brand	Growatt
Inverter Specifications

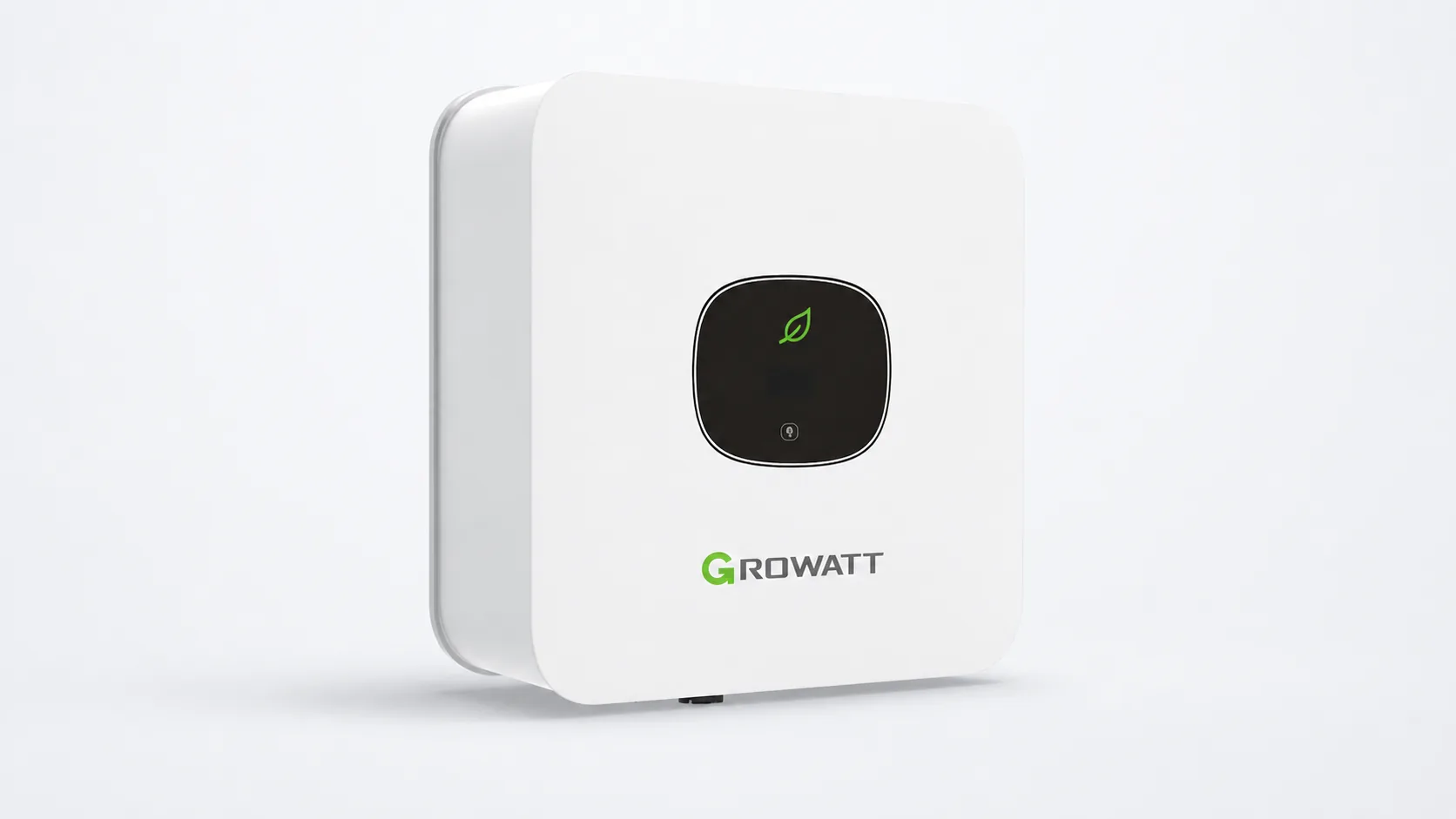

Model	MIC 750TL-X2
Inverter type	On-Grid
Grid type	Single Phase
IP class	IP66
Warranty	10 Years
PV Input Data
Max DC input power	1120 W
PV input voltage	500 V
MPPT voltage range	50-500 V
Max. PV input current	16 A
No. of MPPT	1
No. of strings per MPPT	1
Startup voltage	50 V
AC Output Data
Rated AC output	750 W
Rated AC output current	3.6 A
Rated voltage	230 V
Power factor	0.8 leading to 0.8 lagging
Battery Data
Battery type	None (on-grid)
Protections
PV arc fault detection	Yes
PV reverse polarity detection	Yes
Insulation resistance detection	Yes
Leakage current detection	Yes
AC overcurrent protection	Yes
Output short circuit protection	Yes
Surge protection	Yes
General Specifications
Weight	6 kg
Operating temperature	-30°C ~ +60°C
Max. efficiency	97.4%
Size (W×H×D)	274 × 254 × 138 mm

Note: Entry-level single-MPPT grid-tie unit - one string only, so the whole array has to be one series run at matched orientation. Nominal DC operating point 120 V, MPPT window 50-500 V, 16 A input. European efficiency 96.5%, peak 97.4%. At 6 kg with natural convection and IP66 it is genuinely wall-mountable outdoors. Night consumption under 0.5 W. 10-year warranty as standard, which is longer than most of this class. No battery support of any kind.
